LNP-1802G-SFP | 18-Port Industrial PoE+ Gigabit Unmanaged Ethernet Switch | w/16*10/100/1000Tx (30W/Port) + 2*100/1000 SFP Slots | Antaira
18-Port Industrial PoE+ Gigabit Unmanaged Ethernet Switch, w/16*10/100/1000Tx (30W/Port) + 2*100/1000 SFP Slots

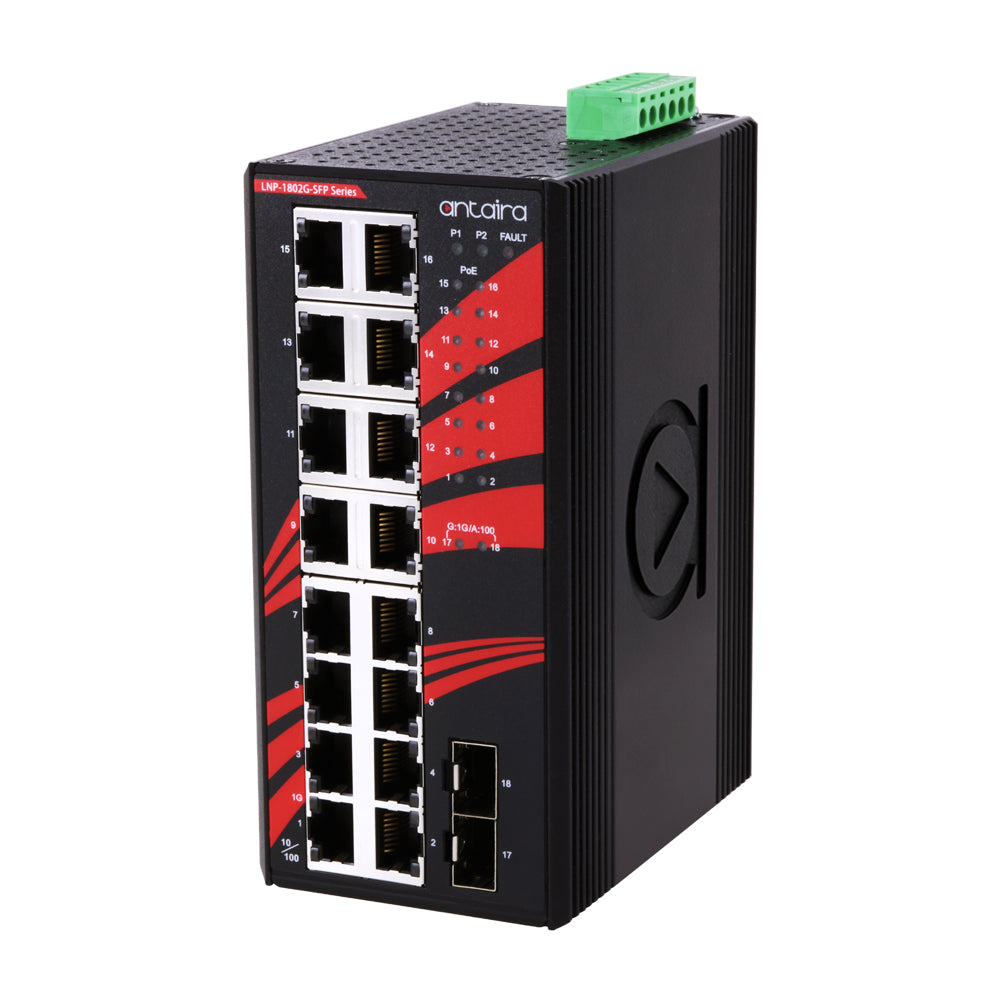

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LNP-1802G-SFP
Documents and manuals
Antaira LNP-1802G-SFP Documents
Overview
Details for LNP-1802G-SFP
18-Port Industrial PoE+ Gigabit Unmanaged Ethernet Switch | w/16*10/100/1000Tx (30W/Port) + 2*100/1000 SFP Slots
Antaira’s LNP-1802G-SFP industrial PoE+ gigabit unmanaged Ethernet switch is IP30 rated and DIN-Rail mountable. Each unit is designed with 16 gigabit Ethernet ports that support IEEE 802.3at (PoE+) with maximum of 30W/Port; and has two dual rate (100/1000) SFP slots, making it ideal for applications that demand high bandwidth and long distance communication.This product provides high EFT and ESD protection to prevent any unregulated voltage and is suitable for harsh environments. It supports a power redundancy feature using a dual power input design with reverse polarity protection. In addition, the built-in relay warning function alerts maintainers when power failures occur.The LNP-1802G-SFP has an operating temperature range of -10° to 70°C and is perfectly designed to fulfill any special needs for industrial automation, outdoor applications or harsh weather environments.Features
- Supports 16*10/100/1000Tx (30W/Port) + 4*100/1000 SFP ports
- Supports Auto MDI/MDI-X Function
- Store-and-Forward Switching Architecture
- 8K MAC Address Table
- Surge Protection: 2,000 VDC Support
- ESD Protection: 6,000 VDC Support
- Redundant Power Input Design: 48~55VDC
- Built-in 1 Relay Output for Power Failure Detection
- IP30 Rugged Metal Case Design
- DIN-Rail and Wall Mount Support
- Operating Temperature Range: -10° to 70°C
- 5-Year Warranty
Included
- DC Cable - 18 AWG with DC jack 5.5x2.1mm
- LNP-1802G-SFP
- Quick Installation Guide
- RJ45 dust cover set
- Wall mounting bracket set with screws
Specifications
- Ambient Relative Humidity
- 5% to 95%, (non-condensing)
- Certifications
- FCC, CE
- Dimensions
- 67 x 142 x 99 mm (W x H x D)
- EMI
- FCC Part 15 Subpart B Class A,;CE EN 55032 Class A,;EN 61000-6-4 Class A
- EMS
- CE EN 55024 Class A,;EN 61000-6-2 Class A,;IEC61000-4-2 (ESD),;IEC61000-4-3 (RS),;IEC61000-4-4 (EFT),;IEC61000-4-5 (Surge),;IEC61000-4-6 (CS),;IEC61000-4-8 (Magnetic Field)
- Ethernet Port
- 16*10/100/1000T(X) with 16*PoE+, auto;negotiation speed, Full/Half duplex mode, and;auto MDI/MDI-X connection
- Fiber Port
- 2*100/1000 SFP Slot
- Flow Control
- IEEE 802.3x back pressure flow control
- Free Fall
- IEC60068-2-32
- Green
- RoHS Compliant
- Housing
- Aluminum and Metal, IP30 protection
- Input Voltage
- 48 to 55VDC, Redundant Inputs
- Jumbo Frame
- 9,216bytes
- LED Indicators
- Power 1, Power 2, Fault;Ethernet Ports: On- Link / Flashing- Data transmitting;PoE: On- connected to PD devices;SFP: Link / Active
- MAC Table Size
- 8K
- Max. PoE Power Budget
- 240Watts
- Memory Buffer
- 512Kbytes
- Mounting
- DIN-Rail, Wall Mounting (optional)
- Network Cable
- 10BaseT: 2-pair UTP/STP Cat. 3, 4, 5 cable;EIA/TIA-568 100-ohm (100m);100BaseTX: 2-pair UTP/STP Cat. 5 cable;EIA/TIA-568 100-ohm (100m);1000BaseTX: UTP/STP Cat.5/5E cable;EIA/TIA-568 100-ohm (100m)
- Operating Temperature
- STD: -10°C to 65°C;EOT: -40°C to 75°C
- Overload Current Protection
- Present
- PoE Pin Out
- V+, V+, V-, V-, for pin 1, 2, 3, 6 (Endspan, MDI;Alternative A)
- PoE Power Output
- 30Watts max. per PoE port
- Power Connection
- 1 removable 6-contact terminal block
- Power Consumption
- 15Watts for System
- Processing Type
- Store and Forward
- Protocols
- CSMA/CD
- Relay Contact
- 24VDC, 1A resistive
- Reverse Polarity Protection
- Present
- Shock
- IEC60068-2-27
- Standards
- IEEE 802.3 10Base-T Ethernet;IEEE 802.3u 100Base-TX Fast Ethernet;IEEE 802.3ab 1000BaseT;IEEE 802.3z 1000Base-X Gigabit Fiber;IEEE 802.3af/at Power over Ethernet
- Storage Temperature
- -40°C to 85°C
- Switching Architecture
- Back-Plane: Non-Blocking Switching Fabric
- Transfer Rate
- 14,880pps for Ethernet Port;148,800pps for Fast Ethernet Port;1,488,000pps for Gigabit Ethernet Port
- Vibration
- IEC60068-2-6
- Warranty
- 5 Years
- Wavelength
- Depends on SFP modules
- Weight
- Unit: 2.65 Ibs.;Shipping: 3.09 Ibs
