LNP-0500G-bt-24 | 5-Port Industrial Gigabit IEEE 802.3bt PoE++ Unmanaged Ethernet Switch | w/4*10/100/1000Tx (90W/Port) and 1*10/100/1000Tx; 12~55VDC Power Input | Antaira
5-Port Industrial Gigabit IEEE 802.3bt PoE++ Unmanaged Ethernet Switch, w/4*10/100/1000Tx (90W/Port) and 1*10/100/1000Tx; 12~55VDC Power Input

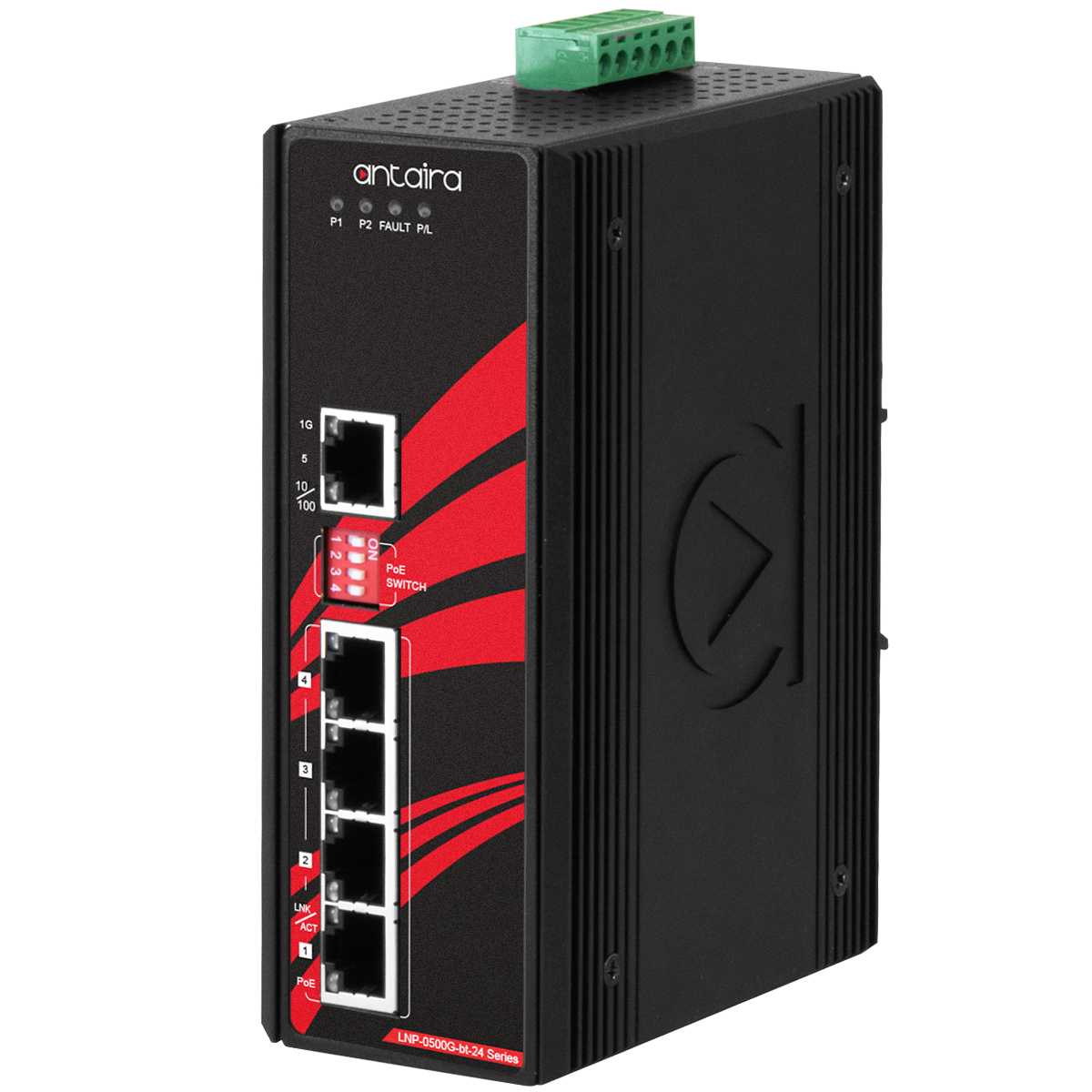

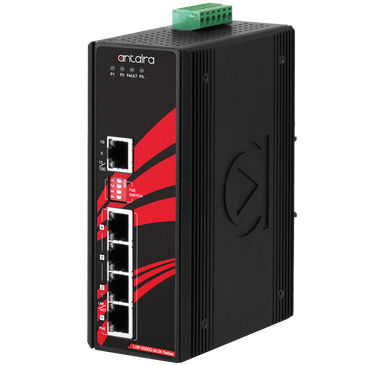

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LNP-0500G-bt-24
![](https://cdn.shopify.com/s/files/1/0877/4530/files/antaira-banner.jpg?v=1711003870)
![](https://cdn.shopify.com/s/files/1/0877/4530/files/antaira-banner-mob.jpg?v=1711003953)
Documents and manuals
Antaira LNP-0500G-bt-24 Documents
Overview
Details for LNP-0500G-bt-24
5-Port Industrial Gigabit IEEE 802.3bt PoE++ Unmanaged Ethernet Switch | w/4*10/100/1000Tx (90W/Port) and 1*10/100/1000Tx; 12~55VDC Power Input
Antaira Technologies’ LNP-0500G-bt-24 is an industrial gigabit PoE++ unmanaged Ethernet switch featuring 4*10/100/1000Tx Gigabit Ethernet ports that support IEEE 802.3bt for a maximum of 90W/port and 1*10/100/1000Tx Ethernet port. The LNP-0500G-bt-24 is an ideal solution for rapid, unmanaged gigabit network expansion with PoE++ capabilities.The LNP-0500G-bt-24 is IP30 rated and DIN-rail mountable. There are also a standard temperature range: -10°C to 65°C. It also provides Ethernet connectivity with PoE functions for outdoor or harsh industrial automation application environments, such as security surveillance, ITS-traffic monitoring systems, oil/gas and mining, facility management for power/utility, water wastewater treatment plants, and lastly, automated production lines in factory automation.Features
- Supports 4*10/100/1000Tx IEEE 802.3bt Compliant with 90W/Port and 1*10/100/1000Tx Ethernet Port
- Store-and-Forward Switching Architecture
- 10Gbps Back-Plane (Switching Fabric)
- 8K MAC Address Table
- 10.0Kbytes Jumbo Frame Support
- Redundant Power Input Design: 12~55VDC
- Built-in 1 Relay Output for Power Failure Warning
- IP30 Rugged Metal Case Design
- DIN-Rail and Wall Mount Support Included
- Standard Operating Temperature: -10°~65°C
- 5-Year Warranty
Included
- DC Cable - 18 AWG & DC Jack 5.5 X 2.1 mm
- LNP-0500G-bt-24
- Quick Installation Guide
- Wall mounting bracket set with screws
Specifications
- Ambient Relative Humidity
- 5 to 95%, (non-condensing)
- Certifications
- FCC, CE
- Dimensions
- 54 x 142 x 99 mm
- Dip Switch
- Control PoE function by port
- EMI
- FCC Part 15 Subpart B Class A;CE EN55032/EN61000-6-4 Class A
- EMS
- CE EN55035/EN61000-6-2 Class A:;IEC61000-4-2,3,4,5,6,8
- Ethernet Port
- 4*10/100/1000Tx (PSE: 90W/Port) + 1*10/100/1000Tx auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
- Flow Control
- IEEE 802.3x back pressure flow control
- Free Fall
- IEC60068-2-32
- Green
- RoHS Compliant
- Housing
- Metal, IP30 protection
- Input Voltage
- 12~55VDC Redundant Input
- Jumbo Frame
- 10Kbytes
- LED Indicators
- System: Power 1, Power 2, Fault, PoE Load (P/L);Ethernet Ports: Speed/Link/Active;PoE: On-connected to PD devices
- MAC Table Size
- 8K
- Max PoE Power Budget
- 90W @12VDC;180W @24~55VDC
- Mounting
- DIN-Rail mounting, Wall mounting
- Network Cable
- 10Base-T: 2-pair UTP/STP Cat. 3, 4, 5 cable EIA/TIA-568 100-ohm (100m);100Base-TX: 2-pair UTP/STP Cat. 5 cable EIA/TIA-568 100-ohm (100m);1000BaseTX: UTP/STP Cat.5/5E cable EIA/TIA-568 100-ohm (100m)
- Operating Temperature
- -10°C to 65°C
- Overload Current Protection
- Present
- Packet Buffer
- 1Mbit
- PoE Pin Out
- V-, V-, V+, V+, for pin 1, 2, 3, 6;V+, V+, V-, V-, for pin 4, 5, 7, 8
- PoE Port Priority
- Port 1>Port 2>Port 3>Port 4
- PoE Power Output
- 90W max. per PoE port
- Power Connection
- 1 removable 6-contact terminal block
- Power Consumption
- 5W
- Power Reverse Polarity Protection
- Present
- Processing Type
- Store and Forward
- Relay Contact
- 24VDC, 1A resistive
- Shock
- IEC60068-2-27
- Standards
- IEEE 802.3 10Tx Ethernet;IEEE 802.3u 100Tx Fast Ethernet;IEEE 802.3ab 1000Tx Gigabit Ethernet;IEEE 802.3at/af/bt Power over Ethernet
- Storage Temperature
- -40°C ~ 85°C
- Switching Architecture
- Back-Plane (Switching Fabric): 10.0Gbps
- Transfer Rate
- 14,880pps for 10Base-T Ethernet;148,800pps for 100Base-T Fast Ethernet;1,488,000pps for 1000Base-T Gigabit Ethernet
- Vibration
- IEC60068-2-6
- Warranty
- 5 Years
- Weight
- Unit: 2.18 lbs.;Shipping: 2.84 lbs.
