LMX-3228G-10G-SFP-DC | 32-Port Industrial Gigabit Managed Ethernet Switch | with 410/100/1000 RJ45 Ports | 24100/1000 SFP Slots | and 4*1G/10G SFP+ Slots with Single DC Power Supply (-48V) | Antaira

32-Port Industrial Gigabit Managed Ethernet Switch, with 4*10/100/1000 RJ45 Ports, 24*100/1000 SFP Slots, and 4*1G/10G SFP+ Slots with Single DC Power Supply (-48V)

Brand: AntairaSKU: LMX-3228G-10G-SFP-DC

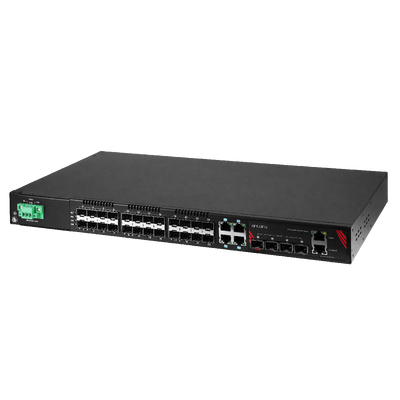

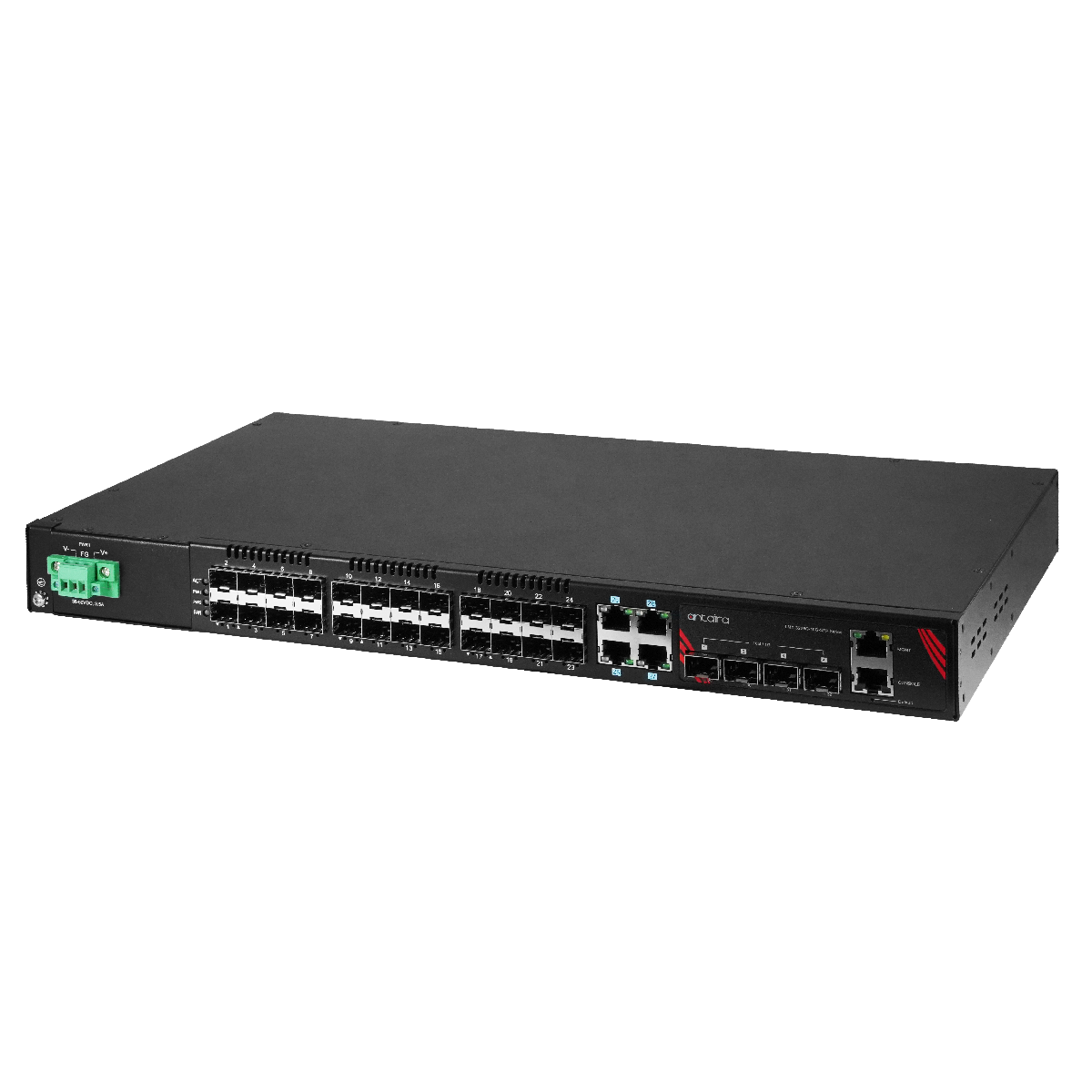

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LMX-3228G-10G-SFP-DC

Overview & Specifications Reviews Parts & Accessories

Overview Details for LMX-3228G-10G-SFP-DC

32-Port Industrial Gigabit Managed Ethernet Switch | with 4*10/100/1000 RJ45 Ports | 24*100/1000 SFP Slots | and 4*1G/10G SFP+ Slots with Single DC Power Supply (-48V)

Antaira Technologies’ LMX-3228G-10G-SFP-DC is a 32-port industrial managed Ethernet switch embedded with 24*gigabit SFP slots, 4*10G SFP+ slots, and 4*10/100/1000Tx RJ45 ports. This switch provides VLAN, QoS, and IGMP feature sets, as well as robust security management to facilitate service providers’ build out of a manageable and secure network. This model has a single DC power supply made for different needs in the application.The LMX-3228G-10G-SFP-DC is designed for rack-mount installation. It is suitable as a backbone fiber aggregation switch. This product is ideal for supporting applications that require high-density port connections, such as security surveillance, traffic monitoring systems, facility management in power/utility, water wastewater treatment plants and oil/gas/mining.

Features

Provides 4*10/100/1000 RJ45 Ports, 24*100/1000 SFP Slots, and 4*1G/10G SFP+ Slots
Remote Port Configuration Setting and Statistics Monitoring
Broadcast/Multicast/Unknown Unicast Storm Control
Configuration: Web Console, Telnet, CLI Command
IP Multicast with IGMP snooping / query / fast leave / filtering / group limited / MVR
QoS (IEEE 802.1p)
IEEE802.1Q VLAN for Easy Network Planning
IEEE802.1X, SNMP v1/v2/v3
Local Syslog Information can be Downloaded
Link Aggregation for More Throughput
Support Port Mirroring for Online Diagnostic
Does not support ERPS
1U Rackmount Design
5-Year Warranty

Included

LMX-3228G-10G-SFP-DC
Power cable
Rackmount bracket set
RJ45 to DB9 serial Console cable

Specifications

Ambient Relative Humidity: 10% to 90%, (non-condensing)
Configuration: Web Console, CLI
Dimensions: 440 x 250 x 43.5mm
Ethernet Port: 4*10/100/1000BaseTx auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
Housing: Metal Housing
Input Voltage: Depends on model;AC Power Input: 100V~240V;DC Power Input: -35~-60VDC
Jumbo Frame: 10K
L2 Switching: Auto MAC address learning/aging, Per port limited MAC address learning, IEEE 802.1Q static VLAN (4K VLAN groups), Voice VLAN, Port isolation, Private VLAN, MAC based VLAN protocol based VLAN IP subnet based VLAN, IEEE 802.1D STP/802.1w RSTP/802.1s MSTP, IEEE 802.3ad Link Aggregation, static and LACP, BPDU guard and restricted role, Error Disable Recovery, DHCP client, DHCP snooping, DHCP option 82 relay, ARP inspection (256 entries Max.), Port mirroring, RSPAN, IGMP snooping v1,v2,v3 snooping, (1024 groups), IGMP snooping Fast and Immediate leave, IGMP throttling, filtering, and leave proxy, MVR and MVR profile, IPv6 MLD v1/v2 snooping
Led Indicator: Per Port: Link/Act (Green: Gigabit, Yellow: 10/100M);Per Unit: Power and System
MAC Table Size: 32K
Mounting: 1U Rack-Mount
Operating Temperature: -0°C to 50°C
Packet Buffer: 32 Mbits
Power Connection: AC Power Cable
Power Consumption: 60W Max
Processing Type: Store and Forward
Protocols: HTTP server, CLI console port, Telnet CLI, Management access filtering, SSHv2 and HTTPS, IPv6 Management, Syslog, Software upload through Web and TFTP, SNMPv1/v2c/v3 Agent, RMON Group 1,2,3, and 9, IEEE 802.1AB-2005 Link Layer Discovery, LLDP, Text Configuration download or upload, Daylight Saving
QoS: IEEE 802.1p 8 Priority Queues per Port, Port Based priority, Scheduler priority, QoS Control List (256 entries Max.), Storm control for UC, MC, and BC, Per port/per queue based ingress policing and engress shaping, DiffServ (RFC 2474) remarking, Tag remarking
Security: Port-based 802.1X, Single 802.1X, Multiple 802.1X, MAC-based authentication, VLAN assignment, QoS assignment, Guest VLAN, RADIUS accounting, MAC address limited learning, TACACS+, Web and CLI authentication and authorization, ACL rules based on L2~L4 information, IP source guard
SFP Port: 24*100/1000Base Tx SFP slots;4*1G/10G SFP+ slots
Storage Temperature: -25°C ~ 70°C
Switching Architecture: Back-Plane (Switching Fabric): 136Gbps
Transfer Rate: 14,880pps for 10Base-T Ethernet;148,800pps for 100Base-T Fast Ethernet;1,488,000pps for Gigabit Ethernet;14,880,000pps for 10 Gigabit Ethernet
Warranty: 5 Years
Wavelength: Refer to SFP Modules
Weight: Unit: 7.28 lbs.;Shipping: 9.48 lbs.
