LMX-1802G-SFP-T | 18-Port Industrial Gigabit Light Layer 3 Managed Ethernet Switch | w/16*10/100/1000Tx Ports + 2*100/1000 SFP ports; EOT: -40°C~75°C | Antaira

18-Port Industrial Gigabit Light Layer 3 Managed Ethernet Switch | w/16*10/100/1000Tx Ports + 2*100/1000 SFP ports; EOT: -40°C~75°C

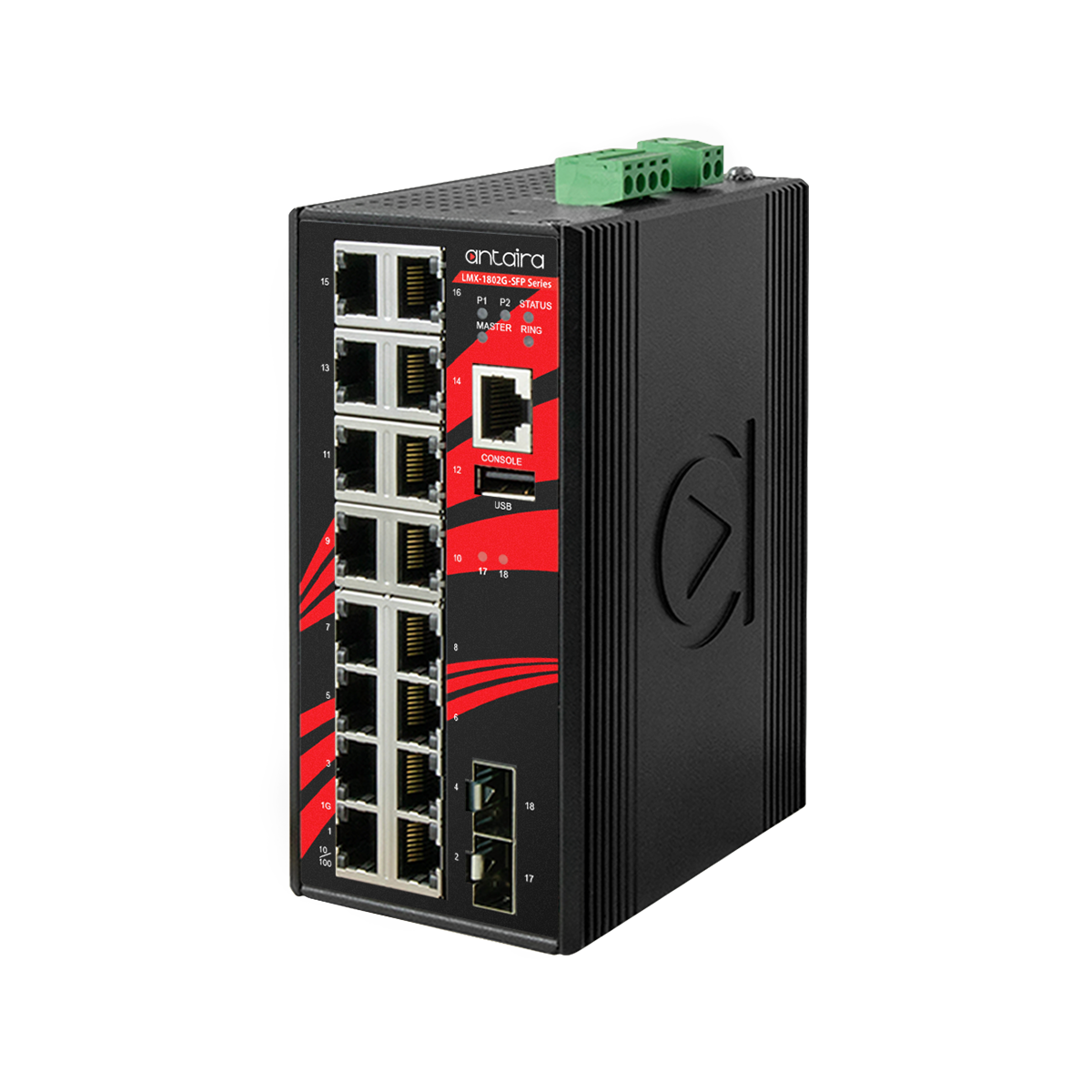

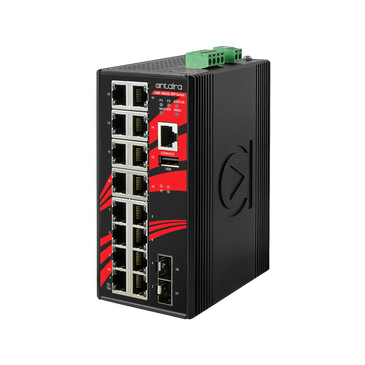

Antaira’s LMX-1802G-SFP-T is an 18-port industrial Gigabit Light Layer 3 Managed Ethernet switch that is embedded with 16*10/100/1000Tx Gigabit ports and 2* 100/1000 SFP ports. This model is a fully manageable industrial Ethernet switch pre-loaded with standard Light Layer 3 network management software. The LMX-1802G-SFP-T has a compact form factor design with an IP30 rating, DIN-rail mounting, and extended operating temperature support from -40°C to 75°C. It also provides high EFT and ESD protection for any industrial networking application within factory automation, ITS, power/utility, water wastewater, Security, or any other outdoor or harsh environment.

Features

• Supports 16*10/100/1000Tx Gigabit Ports
• 2*100/1000 SFP ports
• Network Broadcast Storm Protection
• Network Redundancy Support: RSTP/MSTP, and G.8032 ERPS (Recovery time <50ms)
• Configuration: Web Console, Serial, CLI Command
• Supports IGMP v1/v2
• Supports QoS (IEEE 802.1p) and CoS/ToS
• Supports IEEE 802.1Q VLAN, SNMP v1/v2c/v3
• Redundant Power Input Design 12~48VDC + Built-in Relay Output for Port Break Alarm
• System Warning Setting for Automatic Warning through E-mail
• DIN-Rail and Wall Mount Support
• Operating Temperature Range - EOT: -40°C to 75°C
• 5-Year Warranty

Included

• 1 - DC Cable - 18 AWG & DC Jack 5.5 X 2.1 mm
• 1 - RJ45 to DB9 Serial Console Cables
• LMX-1802G-SFP-T
• Quick Installation Guide
• RJ45 dust cover set
• Wall mounting bracket set with screws
