LMP-2012G-SFP-T | 20-Port Industrial Gigabit PoE+ Light Layer 3 Managed Ethernet Switch | with 8*10/100/1000Tx (30W/Port) and 12*100/1000 SFP Slots; EOT: -40°C to 75°C | Antaira

20-Port Industrial Gigabit PoE+ Light Layer 3 Managed Ethernet Switch | with 8*10/100/1000Tx (30W/Port) and 12*100/1000 SFP Slots; EOT: -40°C to 75°C

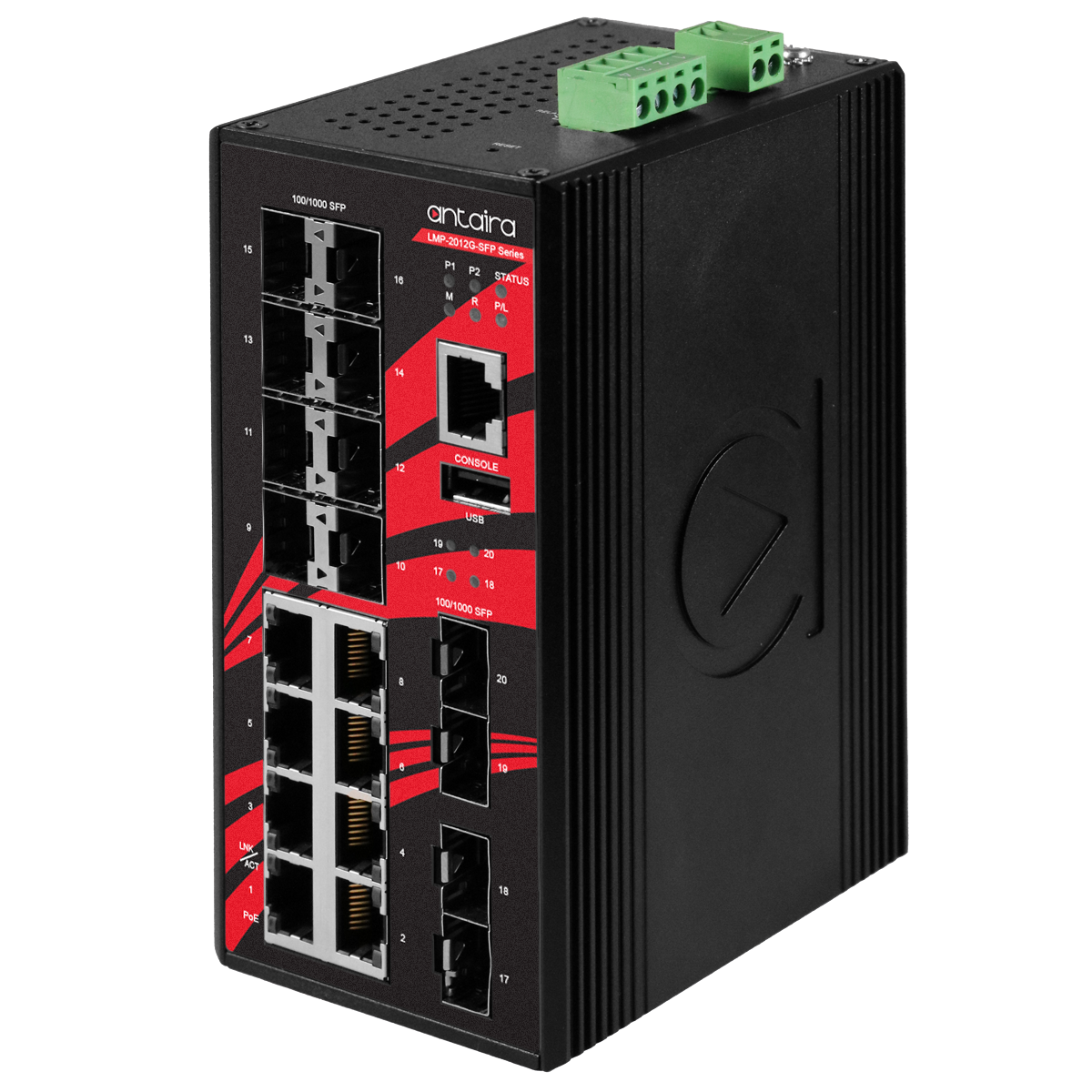

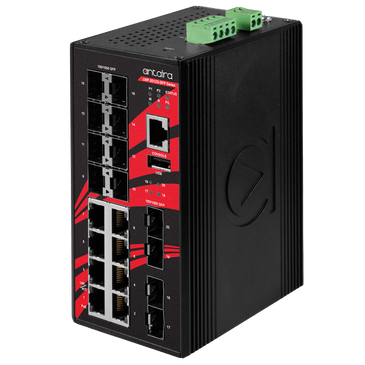

Antaira Technologies’ LMP-2012G-SFP-T is a 20-port industrial Gigabit managed Ethernet switch that is embedded with 8*10/100/1000Tx Ethernet ports that support IEEE 802.af/at for a maximum of 30W/port and 12*100/1000 SFP slots. The LMP-2012G-SFP-T is a fully manageable light layer 3 Ethernet switch that is pre-loaded with a user-friendly web management console design. It supports the ring network redundancy function using the market’s open standard ITU-T G.8032 ERPS (Ethernet Ring Protection Switch) protocol that has a <50ms network recovery time. The advanced network filtering and security functions, such as, IGMP, VLAN, QoS, SNMP, port lock, RMON, Modbus TCP, and 802.1X/HTTPS/SSH/SSL increase determinism and improve network management for remote SCADA systems or control networks.The LMP-2012G-SFP-T is IP30 rated and DIN-rail mountable. There are also an extended temperature range (EOT: -40°C to 75°C). It also provides high EFT and ESD protection for industrial networking applications, such as, power/utility, water wastewater, oil/gas/mining, factory automation, security surveillance within transportation, ITS and any other outdoor or harsh environment.

Features

• Supports 8*10/100/1000Tx Gigabit Ethernet with IEEE 802.3af/at Compliant PoE+ (30W/Port) and 12*100/1000 SFP Slots
• Network Redundancy Support: STP/RSTP/MSTP, and G.8032 ERPS (Recovery Time <50ms)
• Supports IPv4/IPv6, and DHCP Option 66/67/82
• Supports Modbus/TCP Protocol for Device Management and Monitoring
• IGMP v1/v2 for Multicast Traffic Filtering
• QoS (IEEE 802.1p/1Q), CoS/ToS to Increase Determinism
• IEEE802.1Q VLAN for Easy Network Planning
• Enhanced Network Security with IEEE802.1X, SNMP v1/v2c/v3, HTTPS, and SSH/SSL
• Auto Warning by Exception through Relay Output
• Operating Temperature Range – EOT: -40°C to 75°C
• 5-Year Warranty

Included

• DC Cable - 18 AWG & DC Jack 5.5 X 2.1 mm
• Dust cover set
• LMP-2012G-SFP-T
• Quick Installation Guide
• RJ45 to DB9 serial console cable
• Wall mounting bracket set with screws
