LMP-0602-ST-M-V2 | 6-Port Industrial PoE+ Light Layer 3 Managed Ethernet Switch | with 410/100Tx (30W/Port) and 2100Fx Multi-Mode 2Km ST connectors | 48~55VDC Power Input; Version 2 Hardware | Antaira

6-Port Industrial PoE+ Light Layer 3 Managed Ethernet Switch, with 4*10/100Tx (30W/Port) and 2*100Fx Multi-Mode 2Km ST connectors, 48~55VDC Power Input; Version 2 Hardware

Brand: AntairaSKU: LMP-0602-ST-M-V2

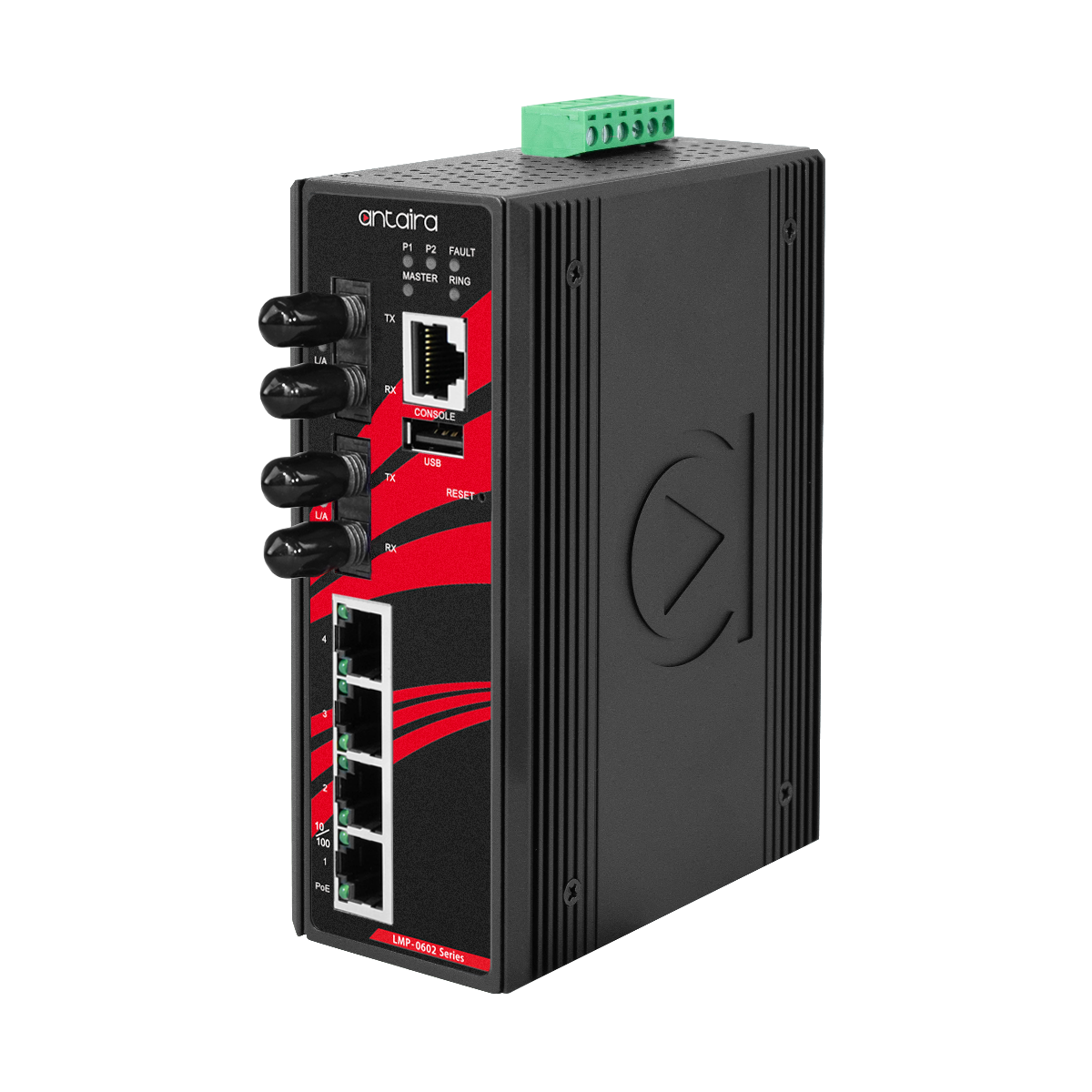

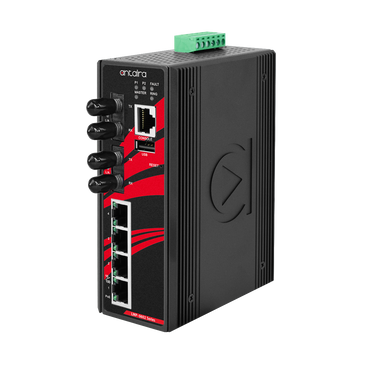

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LMP-0602-ST-M-V2

Overview & Specifications Reviews Parts & Accessories

Overview Details for LMP-0602-ST-M-V2

6-Port Industrial PoE+ Light Layer 3 Managed Ethernet Switch | with 4*10/100Tx (30W/Port) and 2*100Fx Multi-Mode 2Km ST connectors | 48~55VDC Power Input; Version 2 Hardware

Antaira’s LMP-0602-ST-M-V2 is a 6-port industrial PoE+ Light Layer 3 managed Ethernet switch that is embedded with 4*10/100Tx Ethernet ports that support IEEE802.3af/at for a maximum of 30 watts per port and 2*100Fx (ST connector) fiber ports with multi-mode (2Km).The LMP-0602-M-V2 is a fully manageable industrial Ethernet switch that supports the standard light layer 3 Ethernet configurable settings with a pre-loaded web console. This industrial switch is IP30 rated and DIN-rail mountable and provides operating temperature range model in STD: -10°C to 70°C. It also provides a high EFT and ESD protection for any industrial networking application in factory automation, ITS, power/utility, water/wastewater treatment plants, or any outdoor or harsh environment.The Version 2 hardware is compatible with the latest light layer 3 firmware which permits static routes between VLANs.

Features

Supports 4*10/100Tx IEEE 802.3at/af Compliant with 30W/Port, and 2*100Fx (ST) Fiber Ports
Fiber Supports: Multi-Mode in 2Km
Network Redundancy Support: RSTP/MSTP, and G.8032 ERPS (Recovery Time <50ms)
Configuration: Web Console, Serial, CLI Command
Supports IGMP v1/v2, up to 256 Groups
Supports QoS (IEEE802.1p) and CoS/ToS
Supports IEEE802.1Q VLAN, SNMP v1/v2c
PoE Ping Alarm Function for PoE Ports Power Recycle
System Warning Setting for Automatic Warning through E-Mail
Redundant Power Input Design – 48~55VDC
Housing: Metal IP 30 rated; DIN-Rail and Wall Mount Support
Operating Temperature - STD: -10~70C
5-Year Warranty

Included

1 - DC Cable - 18 AWG with DC jack 5.5x2.1mm
1 - LMP-0602-ST-M-V2
1 - Quick Installation Guide
1 - RJ45 dust cover set
1 - RJ45 to DB9 Serial Console cable
1 - Set of wall mounting brackets and screws

Specifications

Ambient Relative Humidity: 5 to 95%, (non-condensing)
Certifications: FCC, CE, UL 61010-1, 61010-2-201
Configuration: Http, Https, Telnet, SSH, CLI, TFTP, SNMP v3
Dimensions: 54 x 142 x 99 mm (W x H x D)
EMI: FCC Part 15 Subpart B Class A;CE EN55032/EN61000-6-4 Class A
EMS: CE EN55035/EN61000-6-2 Class A;IEC61000-4-2,3,4,5,6,8
Ethernet Port: 4*10/100Base-TX with PoE+ (30W/Port), auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
Fiber Port: 2*100Base-FX ST type connector multimode
Flow Control: IEEE 802.3x flow control, back pressure flow control
Free Fall: IEC60068-2-32
Green: RoHS Compliant
Housing: Metal, IP30 protection
IGMP Group: 1024
Input Voltage: 48~55VDC Redundant Input
Jumbo Frame: 9.6Kbytes
L2 Switching: Port/MAC/Protocol/IP Subnet-based VLAN, VLAN trunking, GARP/GVRP, Loop Guard, Link Aggregation static/LACP, BPDU guard, Error disable recovery, IGMPv2 snooping, MLD snooping, IGMP filtering, IPMC throttling / filtering leave proxy, DHCP snoo(more...)
L3 Switching: DHCP option82, static routes
LED Indicators: System: Power 1, Power 2, Master, Ring, Fault;Ethernet Ports: Speed/Link/Active;Fixed Fiber: Link/Active
MAC Table Size: 8K
Memory Buffer: 4Mbits
Mounting: DIN-Rail mounting, Wall mounting
Network Cable: 10Base-T: 2-pair UTP/STP Cat. 3, 4, 5 cable EIA/TIA-568 100-ohm (100m);100Base-TX: 2-pair UTP/STP Cat. 5 cable EIA/TIA-568 100-ohm (100m)
Network Redundancy: STP/RSTP/MSTP, port trunk with LACP, ERPS v1/v2 (<50ms)
Operating Temperature: -10°C to 70°C
Overload Current Protection: Present
Poe Pin Assignment: V+, V+, V-, V-, for pin 1, 2, 3, 6 (Endspan, Mode A)
PoE Power Budget: 120W@48~55VDC
Power Connection: 1 removable 6-contact terminal block
Power Saving: ActiPHY, PerfectReach, IEEE 802.3az EEE power management
Priority Queues: 8
Processing Type: Store and Forward
Protocols: IPv4/IPv6, SNMP v1/v2c/v3, LLDP, LLDP-MED, HTTP, HTTPS, SSHv2 telnet, DHCP client, DHCPv6 client, DHCP server, Port Mirror, DNS client/proxy, IP based Access Filter, ICMPv6, syslog, Time Zone / Daylight Saving, NTP client, RMON, sFlow, Loop (more...)
QoS: 802.1p Queueing, Input priority mapping, Storm control for Unicast/Multicast/Broadcast, Port/Queue/ACL policer, Port egress shaper, Queue egress shaper, DiffServ (DSCP), Tag remarking, Scheduler mode
Relay Contact: 24 VDC, 1A resistive
Reverse Polarity Protection: Present
RS232 Serial Console: 1*RS232 in RJ45
Shock: IEC60068-2-27
Storage Temperature: -40°C ~ 85°C
Switching Architecture: Back-Plane (Switching Fabric): 1.2Gbps
System / Diagnostics: Dual Image Protection, PING, PING6
System Power Consumption: 7.5W
Transfer Rate: 14,880pps for Ethernet Port;148,800pps for Fast Ethernet Port
Vibration: IEC60068-2-6
VLAN Groups: 4095
Warranty: 5 Years
Weight: Unit: 1.9 lbs;Shipping: 2.7 lbs
