LMP-0501-ST-S3-24-V2 | 5-Port Industrial PoE+ Managed Ethernet Switches w/4*10/100Tx (30W/Port) | and 1*100Fx Single mode 30Km ST connectors | 12~36VDC | Antaira

5-Port Industrial PoE+ Managed Ethernet Switches w/4*10/100Tx (30W/Port), and 1*100Fx Single mode 30Km ST connectors, 12~36VDC

Brand: AntairaSKU: LMP-0501-ST-S3-24-V2

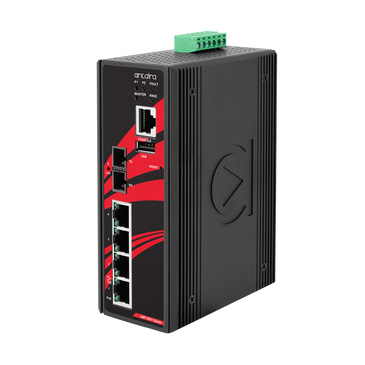

Antaira | LMP-0501-ST-S3-24-V2
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LMP-0501-ST-S3-24-V2

Overview Details for LMP-0501-ST-S3-24-V2

5-Port Industrial PoE+ Managed Ethernet Switches w/4*10/100Tx (30W/Port) | and 1*100Fx Single mode 30Km ST connectors | 12~36VDC

Antaira's LMP-0501-24 series is a 5-port industrial PoE+ managed Ethernet switch that is embedded with 4*10/100Tx Ethernet ports that support IEEE802.3at/af for a maximum of 30 watts per port, and 1*100Fx (SC or ST connector) fiber port with optional versions for multi-mode (2Km) and single-mode (30Km).LMP-0501 series is a fully manageable industrial Ethernet switch with a pre-loaded Layer 2 network management web console that supports a low voltage redundant power input range from 12~36VDC with a voltage booster. This product series is IP30 rated, DIN-rail mountable, and has two wide operating temperature models for either a standard temperature range ( STD: -10°C to 70°C) or an extended temperature range (EOT: -40°C to 75°C). It also provides high EFT and ESD protection for any industrial networking application within factory automation, ITS, power/utility, water wastewater, and any other outdoor or harsh environment.

Features

  • Supports 4*10/100Tx IEEE 802.3at/af Compliant with 30W/Port, and 1*100Fx (ST) Fiber Port
  • Fiber Supports: Single mode 30Km
  • Network Redundancy Support: RSTP/MSTP, and TG.8032 ERPS (Recovery Time <50ms)
  • Configuration: Web Console, Telnet, CLI Command
  • Supports IGMP v1/v2, up to 256 Groups
  • Supports QoS (IEEE802.1p) and CoS/ToS
  • Supports IEEE802.1Q VLAN, SNMP v1/v2c
  • PoE Ping Alarm Function for PoE Ports Power Recycle
  • System Warning Setting for Automatic Warning through E-Mail
  • Redundant Power Input: 12~36VDC (Voltage Booster)
  • Housing: Metal IP30 Rated; DIN-Rail and Wall Mount Support
  • Operating Temperature - STD: -10~70C
  • 5-Year Warranty

Specifications

Item Number LMP-0501-ST-S3-24-V2
Brand Antaira
Ports 5-Port
Type Managed 10/100Mbps PoE Switch
