RIC-1 | Relay | 7 Amp | Coil: 24 VAC or VDC / 120 VAC | ACI
Multi-Voltage Relay, 24 VAC, 115 VAC, 24 VDC, SPDT, LED
Documents and manuals
ACI RIC-1 Documents
Overview
Details for RIC-1

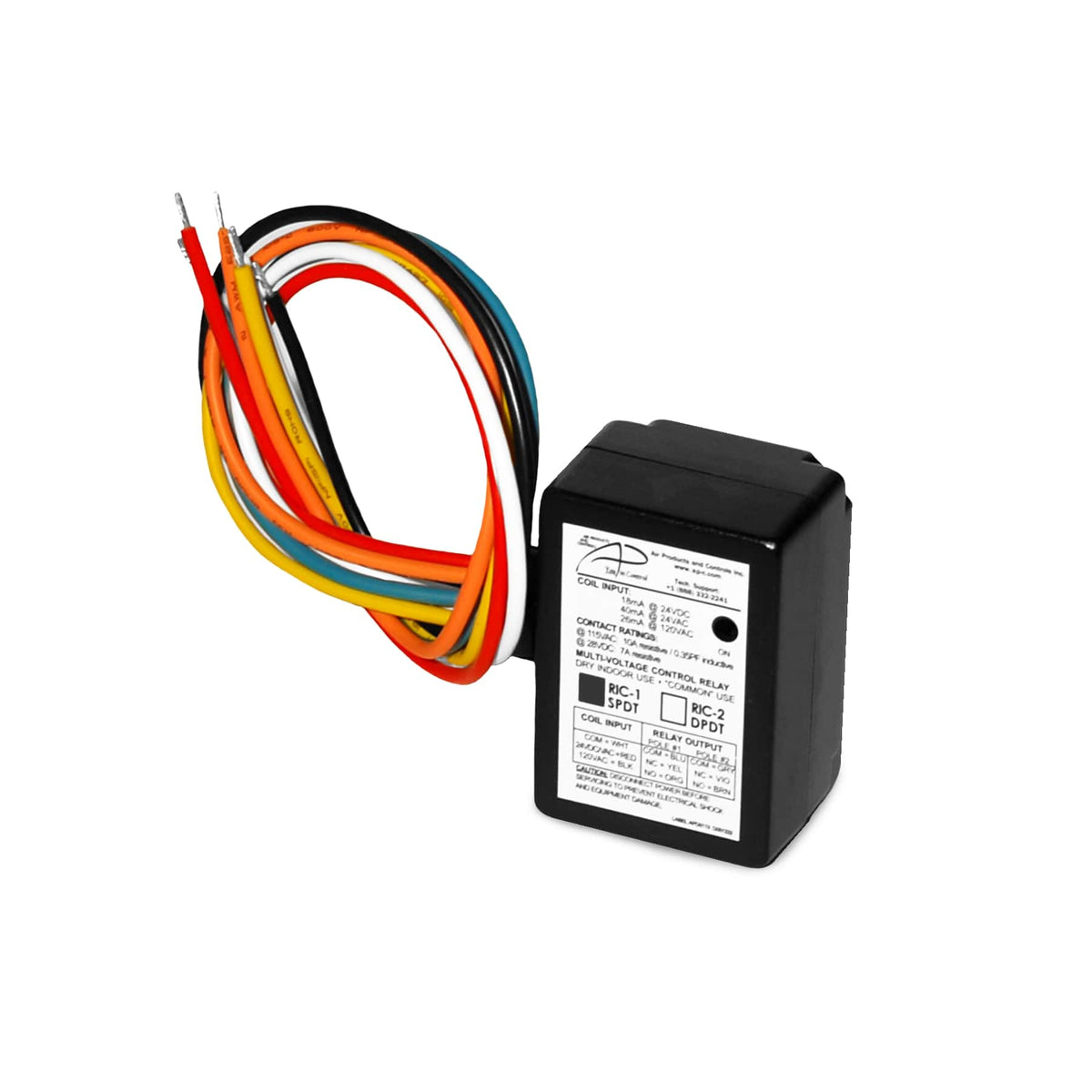

RIC-1 | Relay | 7 Amp | Coil: 24 VAC or VDC / 120 VAC
Description
The RIC-1 & RIC-2 Series Relays are multi-voltage devices providing form “C“ contacts rated for up to 10 amps. The relays may be energized by one of three input voltages: 24 VDC, 24 VAC, or 115 VAC. Each relay contains a red LED which indicates when the relay coil is energized. To mount the RIC-1 and RIC-2 place the spud through a 1/2 in. (12.7 mm) knockout on a junction box. The relays are also packaged with wire-nuts to aid installation. The RIC-1 and RIC-2 Relays are ideal for applications where remote relays are required for control or status feedback. They are suitable for use with HVAC, Temperature Control, Fire Alarm, Security, Energy Management and Lighting Control Systems.
The RIC-3 Series relays are multi-voltage devices providing SPDT or form “C“ contacts rated for up to 10 Amps. The relays may be energized by one of two input voltages, 24 VDC or 24 VAC. The relays can withstand a momentary interruption of control voltage for 2 to 3 seconds without dropping their contacts. This feature makes them perfect for applications where pulsed or sequenced input voltage is employed, or where momentary control voltage interruption is expected. The RIC-3 is nonpolarized on the DC control input. To mount the RIC-3, push the spud through a ½" (12.7 mm) knockout on a junction box. In addition to the redundant wire leads provided on the control voltage input, the relays are also packaged with wire-nuts to aid installation. The RIC-3 is ideal for applications where remote relays are required for control or status feedback. The RIC-3 is suitable for use with HVAC, Temperature Control, Fire Alarm, Security, Energy Management and Lighting Control Systems.
Applications
HVAC, Temperature Control, Fire Alarm, Security, Energy Management & Lighting Control Systems
Specifications
Item Number | RIC-1 |
Brand | ACI |
Coil | 120VAC |
Coil | 24VAC/DC |
Enclosed | Yes |
Track Mounted | No |
Type | Pilot |
