RIB2401SB | Enclosed Relay 20Amp SPST-NO + Override 24Vac/dc/120Vac | Functional Devices

Power Relay, 20 Amp SPST-N/O + Override, 24 Vac/dc/120 Vac Coil, NEMA 1 Housing

Functional Devices | RIB2401SB

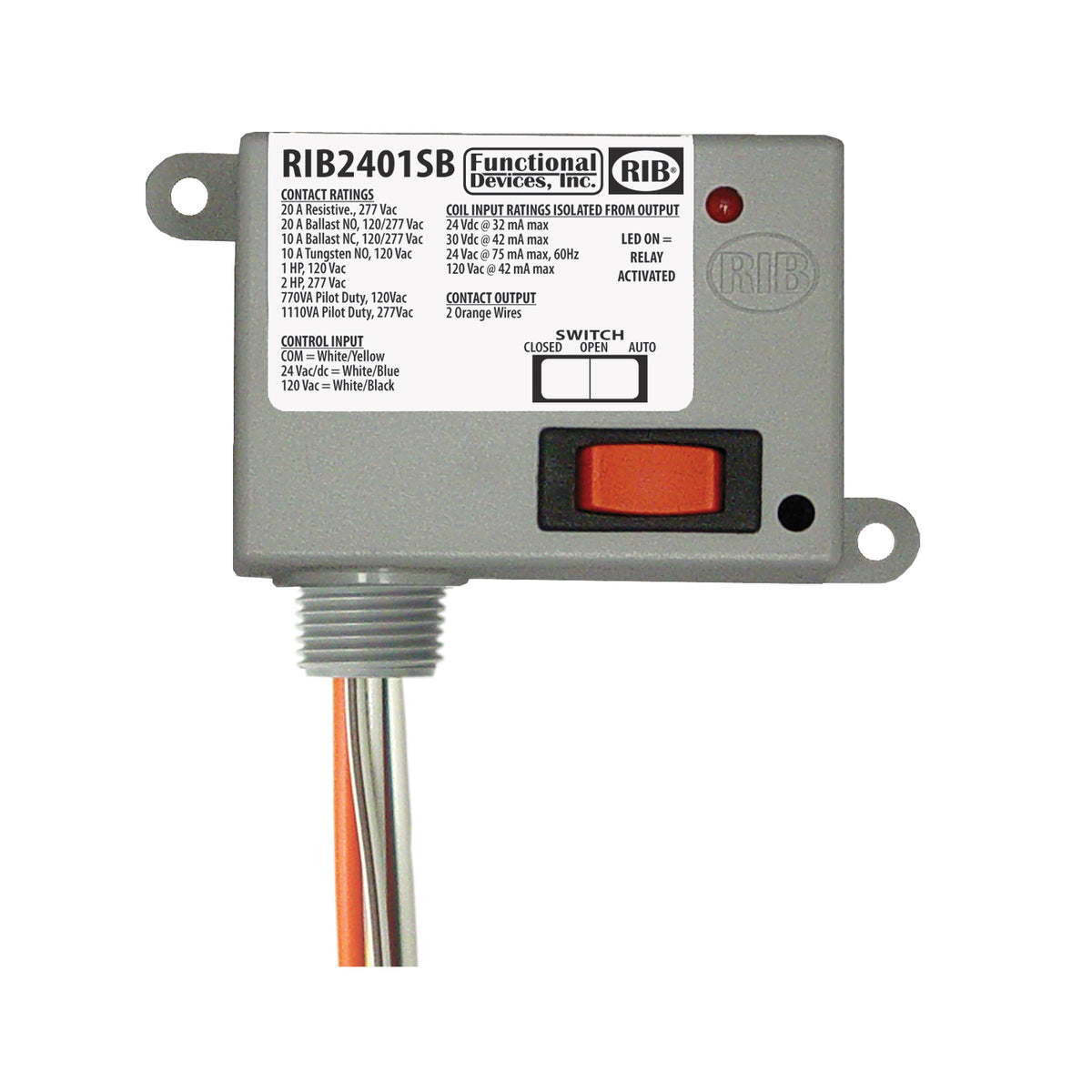

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to RIB2401SB

Documents and manuals

Functional Devices RIB2401SB Documents

Overview

Details for RIB2401SB

Enclosed Relay 20Amp SPST-NO + Override 24Vac/dc/120Vac

Specifications

# Relays & Contact Type: One (1) SPST Continuous Duty Coil
Expected Relay Life: 10 million cycles minimum mechanical
Operating Temperature: -30 to 140° F
Humidity Range: 5 to 95% (noncondensing)
Operate Time: 18ms
Relay Status: LED On = Activated
Dimensions: 2.30˝ x 3.20˝ x 1.80˝ with .50˝ NPT Nipple
Wires: 16˝, 600V Rated
Approvals: UL Listed, UL916, UL864, UL508, C-UL
California State Fire Marshal, CE, RoHS
Housing Rating: UL Accepted for Use in Plenum, NEMA 1
Gold Flash: No
Override Switch: Yes

Contact Ratings:
20 Amp Resistive @ 277 Vac
20 Amp Ballast @ 277 Vac (N/O)
10 Amp Ballast @ 277 Vac (N/C)
Not rated for Electronic Ballast
10 Amp Tungsten @ 120 Vac (N/O)
770 VA Pilot Duty @ 120 Vac
1,110 VA Pilot Duty @ 277 Vac
2 HP @ 277 Vac
1 HP @ 120 Vac

Coil Current:
50 mA @ 18 Vac
83 mA @ 24 Vac
47 mA @ 120 Vac

Coil Voltage Input:
24 Vac/dc ; 120 Vac ; 50-60 Hz
Drop Out = 2.1 Vac / 3.8 Vdc
Pull In = 18 Vac / 22 Vdc

Specifications

Item Number RIB2401SB
Brand Functional Devices
Coil 120VAC
Coil 24VAC/DC
Enclosed Yes
Track Mounted No
Type Power
