ARM2 | Analog Input | Resistive Input | to Analog Output Interface Module | ACI
Analog Input(VDC or mA), Dual Analog Output (mA), Analog Rescaling Module (Signal Splitter)
Documents and manuals
ACI ARM2 Documents
Overview
Details for ARM2

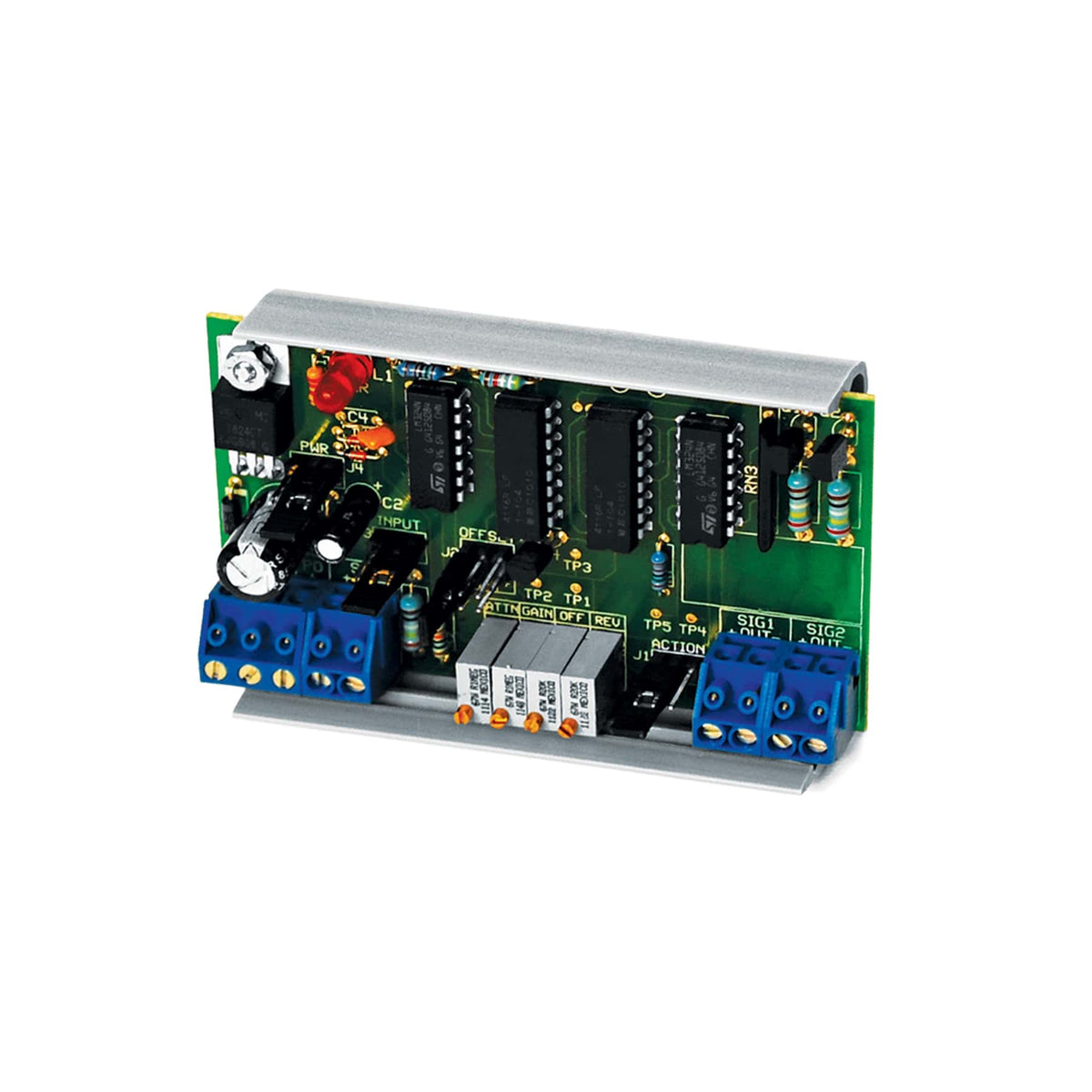

ARM2 | Analog Input | Resistive Input | to Analog Output Interface Module
The ARM2 will accept a single analog (voltage or current) signal and split that signal into two DC non-isolated current sourcing outputs that can be re-scaled. Its primary application is as a signal splitter. The outputs are always scaled identically and will always track each other. The top-adjust trimmer potentiometers can be used to make ne adjustments to output ranges for maximum flexibility. This device can attenuate an input signal to 100%. The ARM2 also has an adjustable gain and offset. The output gain can be adjusted from 1 to 20 times the input (gain will vary depending on input). The ARM2 can also reverse an input signal and has a regulated 23 VDC power supply output to power sensors. The ARM2 can also accept a resistance input by using voltage divider applications.
The ARM2 is field calibratable, however, factory calibration is available upon request for an additional charge and will speed up installation time for the end user.
Click HERE to a list of field calibration instructions.
Specifications
| Item Number | ARM2 |
| Brand | ACI |
| Interface | Analog Input to Analog Output |
| Interface | Resistive Input to Analog Output |
