V120 | Coil: 24VAC/DC | 120VAC | Contact: 20A SPDT | Veris

Victory 24 VAC/VDC, 120 VAC Enclosed Relay, SPDT

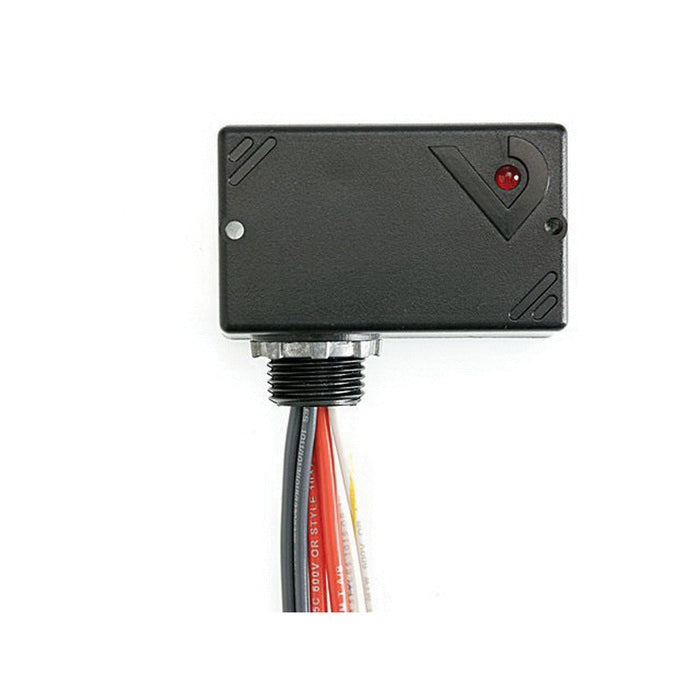

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to V120

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Veris V120 Documents

Datasheet Installation Guide More Info

Overview

Details for V120

Coil: 24VAC/DC | 120VAC | Contact: 20A SPDT

Description

The Victory 120 and 220 20A SPDT enclosed relays combine a power duty relay with a high level of field-selectability and versatility. The devices are quick and easy to install using the threaded nipple mount. With no need for a dedicated field enclosure, this series is ideal for retrofit projects.

APPLICATIONS

Command contactors
Control motors
Isolation
Device interlocking
Relay logic
Sense voltages for alarm conditions

Specifications

Item Number	V120
Brand	Veris
Application	Building Automation Systems
Coil	120VAC
Coil	24VAC/DC
Electrical Wiring Size	Coil: 18 AWG (0.25 mm²); Contacts and HOA: 12 AWG (4 mm²)
Enclosed	Yes
Hand-Off-Auto	No
Model	V120
Mounting	DIN \| Wall
Operating Temperature	-29 - 131 °F (-34 - 55 °C)
Product Certification	UL
Product Type	Relay
Range	Victory Series
Relay Coil Voltage	24 VAC/DC; 120 VAC
Relay Construction	Mechanical
Relay Contact Ratings	20 A @ 28 VDC \| 20 A @ 277 VAC
Relay Poles/Throw	SPDT
Warranty	5 years
