V300 | Coil: 12-30VAC/DC | 120VAC | Contact: 10A DPDT | Veris

Victory 20 to 30 VAC/VDC, 120 VAC Enclosed Relay, DPDT

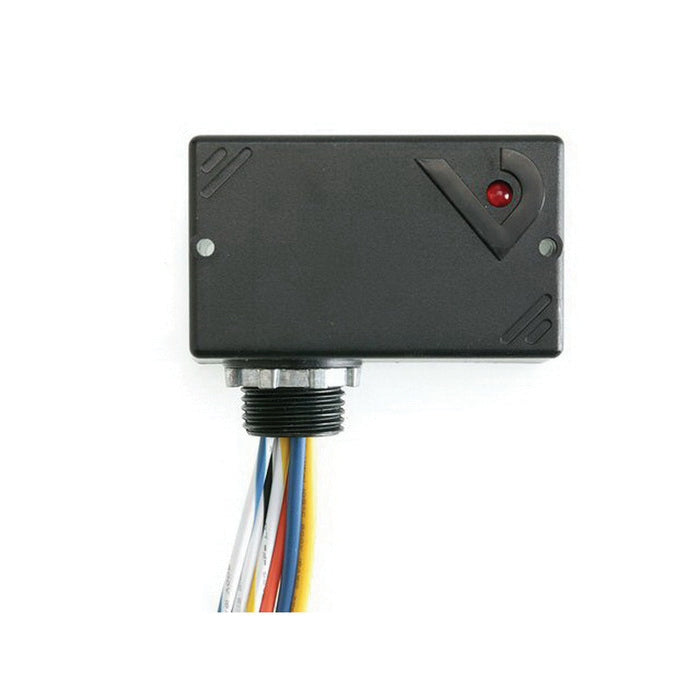

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to V300

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Veris V300 Documents

Datasheet Installation Guide More Info

Overview

Details for V300

Coil: 12-30VAC/DC | 120VAC | Contact: 10A DPDT

The Victory 300 and 400 Series 10A DPDT pilot duty enclosed relays combine industrial strength and ease of use. The nipple mount enclosure makes installation easy. With no need for a dedicated field enclosure, they are the ideal retrofit devices. One coil input controls the state of two pilot rated contacts for the simultaneous control of two devices or both poles of a single-phase circuit, e.g. motor loads. Field-selectable high and low voltage coil inputs provide on-site versatility.

Specifications

Item Number	V300
Brand	Veris
Application	Building Automation Systems
Coil	120VAC
Coil	20-30VAC/DC
Electrical Wiring Size	Coil: 18 AWG (0.25 mm²); Contacts: 16 AWG (1.5 mm²)
Enclosed	Yes
Hand-Off-Auto	No
Model	V300
Mounting	DIN \| Wall
Operating Temperature	-29 - 140 °F (-34 - 60 °C)
Product Certification	UL
Product Type	Relay
Range	Victory Series
Relay Coil Voltage	20 - 30 VAC/DC \| 120 VAC
Relay Construction	Mechanical
Relay Contact Ratings	10 A @ 28 VDC \| 10 A @ 250 VAC
Relay Poles/Throw	DPDT
Warranty	5 years
