V100D | Enc Rly | Dual | SPDT | 10A | Veris

Victory 10 to 30 VAC/VDC, 120 VAC Enclosed Relay, Dual SPDT

Veris | V100D

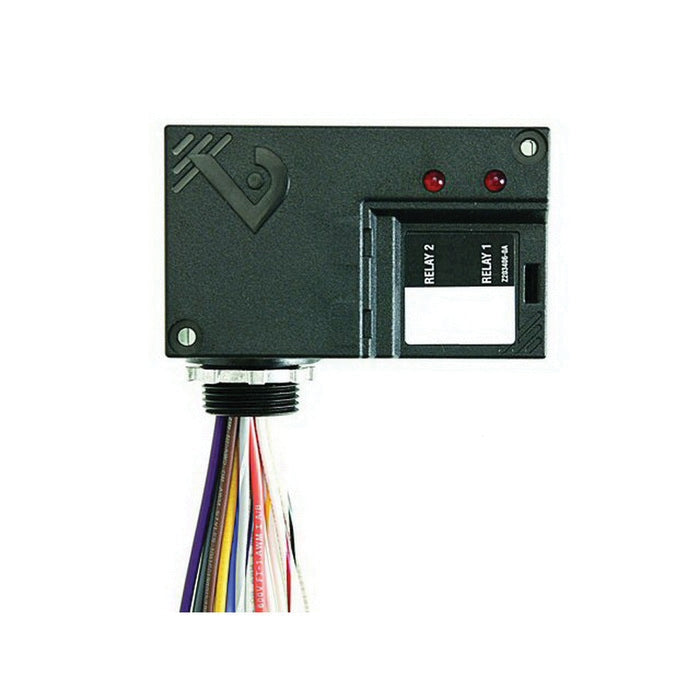

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to V100D

Documents and manuals

Veris V100D Documents

Overview

Details for V100D

Enc Rly | Dual | SPDT | 10A

Victory 100 series 10 A enclosed relays are pilot-duty relays in an easy-to-use nipple mount enclosure. The V100 series provide quick relay mounting without a dedicated field enclosure, making them ideal for retrofit projects. Field-selectable high and low voltage coil inputs provide on-site versatility.

  • Sleek enclosure - reduces the need for panel space
  • Nipple mount - Victory series products can be mounted to any electrical enclosure, easing installation
  • Flexible tinned stranded wire, fits easily in tight spaces and provides secure connections to wire nuts
  • UL 508 listed - designed and listed for field installation, makes electrical inspection a snap
  • Eliminate conduit - run low voltage instead of line voltage, eliminates conduit in some applications

Specifications

Item Number V100D
Brand Veris
Application Building Automation Systems
Coil 12-30VDC
Coil 120VAC
Electrical Wiring Size Coil: 18 AWG (0.25 mm²); Contacts: 16 AWG (1.5 mm²)
Enclosed Yes
Hand-Off-Auto No
Model V100D
Mounting DIN | Wall
Operating Temperature -40 - 131 °F (-40 - 55 °C)
Product Certification UL
Product Type Relay
Range Victory Series
Relay Coil Voltage 10 - 30 VAC/DC; 120 VAC
Relay Construction Mechanical
Relay Contact Ratings 10 A @ 28 VDC | 10 A @ 277 VAC
Relay Poles/Throw 2 x SPDT
Warranty 5 years
