A/100-3W-BP | RTD 100 ohm (3 wire) | Bullet Probe Temperature Sensor | ACI

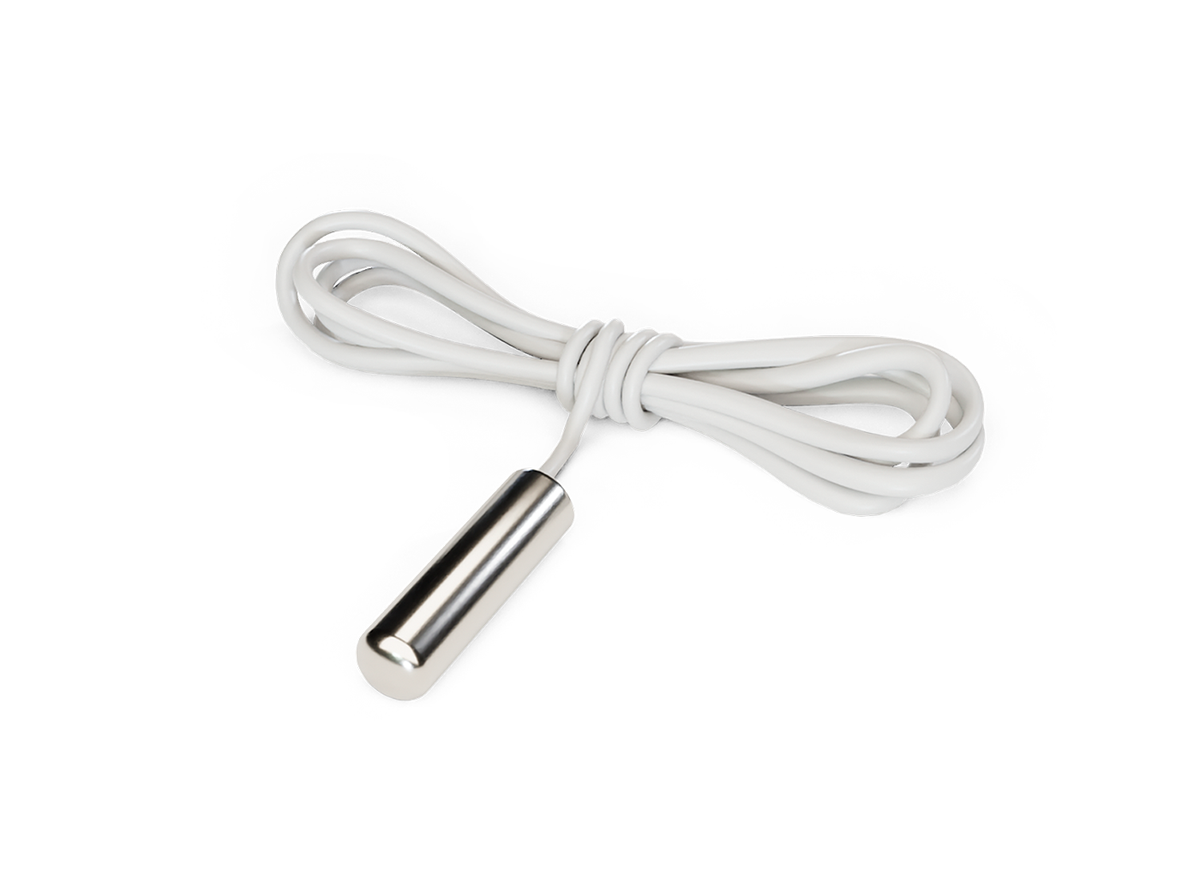

100 Ohm (Three Wires) RTD, Bullet Probe, 1"

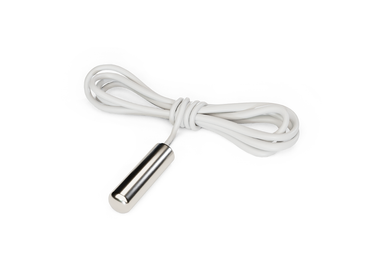

ACI | A/100-3W-BP
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to A/100-3W-BP

Documents and manuals

ACI A/100-3W-BP Documents

Overview

Details for A/100-3W-BP

A/100-3W-BP | RTD 100 ohm (3 wire) | Bullet Probe Temperature Sensor

The ACI Platinum Bullet Probe Series features a one inch stainless steel probe with two or three, 24 inch, 22 AWG Etched Teflon colored lead wires to differentiate the sensor types. Note that the three-wire -3W option should be ordered if using with a 3-Wire temperature transmitter or sensor configuration on your building management system or PLC (Programmable Logic Controller). The purpose of the 3rd wire is to compensate for any external lead wire resistance that will impact the accuracy of your sensors output signal. For best results, ACI recommends the use of 18 AWG lead wires to reduce the external lead wire resistance when using a Platinum RTD. The sensors in this series are manufactured using ACIs proven double encapsulation process to eliminate the effects of moisture upon the sensors and to increase the response time using our high quality, thermally conductive epoxy. The bullet style sensor is designed to be used to monitor air temperatures and should not be fully submerged in water. This series can be ordered with different wire options and NIST Certification as referenced in the Ordering Grid on the back of the product data sheet.

Applications: Roof Top Units, Air Handlers, Discharge Air/Supply/Return/Mixed Air Duct Temperature, Remote Temperature Sensing, Hydronic Systems

Specifications

Item Number A/100-3W-BP
Brand ACI
Element Type 100 ohm (3 wire)
Sensing Element RTD
Sensor Configuration Bullet Probe
Sensor Temperature
