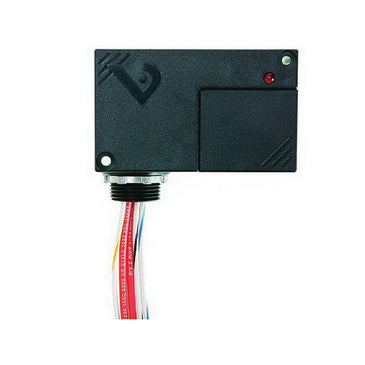

V121 | Enc Rly | SPDT | 20A | w/HOA | Veris

Victory 24 VAC/VDC, 120 VAC Enclosed Relay with HOA Switch, SPST/NO

Brand: VerisSKU: V121

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for V121

The Victory 121 series HOA relays have a concealed HOA switch for local control and troubleshooting with limited unauthorized switch manipulation.

Protective cover - conceals and protects the HOA switch, reducing the likelihood of tampering
Nipple mount - allows the V121 series to be mounted to any electrical enclosure easing installation
Flexible tinned stranded wire, fits easily in tight spaces and provides secure connections to wire nuts
UL 508 listed - designed and listed for field installation, makes electrical inspection a snap
Sleek enclosure - reduces the need for panel space

Item Number	V121
Brand	Veris
Application	Building Automation Systems
Coil	120VAC
Coil	24VAC/DC
Electrical Wiring Size	Coil: 18 AWG (0.25 mm²); Contacts: 12 AWG (4 mm²); HOA: 16 AWG (1.5 mm²)
Enclosed	Yes
Hand-Off-Auto	Yes
Model	V121
Mounting	DIN \| Wall
Operating Temperature	-40 - 131 °F (-40 - 55 °C)
Product Certification	UL
Product Type	Relay
Range	Victory Series
Relay Coil Voltage	24 VAC/DC; 120 VAC
Relay Construction	Mechanical
Relay Contact Ratings	12 A @ 14 VDC \| 8 A @ 28 VDC \| 20 A @ 240 VAC
Relay Poles/Throw	SPST
Warranty	5 years
