H120 | Enclosed Relay | Current Switch 20A | Fixed | Veris
Hawkeye 100 mA at 30 VAC/VDC NO Output Status Relay with Integral Current Switch

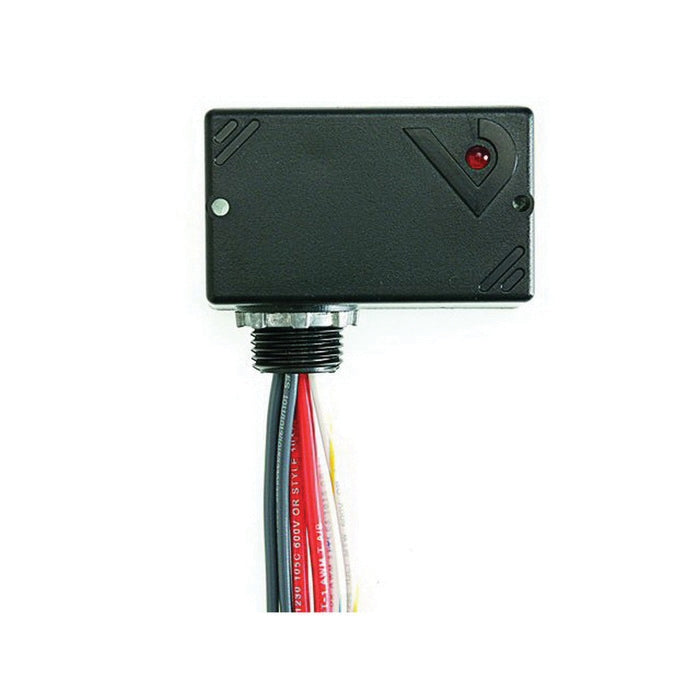

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to H120
Documents and manuals
Veris H120 Documents
Overview
Details for H120
Enclosed Relay | Current Switch 20A | Fixed
Description
The H120 and H120NC offer a fixed current switch and SPST relay in a single externally mounted housing. Combining the current sensor and relay in one easy-to-install package eliminates the need to fit multiple devices into small electrical enclosures and simplifies the installation. Remove the labor associated with installing a separate current sensor.
APPLICATIONS
- Unit Ventilators
- Fan Coil Units
- Exhaust Fans
- Fan Terminal Units
- Fractional HP Motors
- Light Resistive Loads
Specifications
Item Number | H120 |
Brand | Veris |
Application | Building Automation Systems |
Current Core | Split Core |
Current Measurement Range | 0.1 - 20A |
Current Sensor type | Current Switch; AC |
Measurement Type | AC Current |
Model | H120 |
Monitored Frequency Range | 50 - 60 Hz |
Mounting | Nipple |
Operating Humidity | 10 - 90% RH; non-condensing |
Operating Temperature | 5 - 140 °F (-15 - 60 °C) |
Output Specifications | N.O. 100 mA @ 30 VAC/DC |
Outputs | Switch output | Relay |
Product Certification | UL |
Product Type | Sensor |
Range | Status Series |
Relay Coil Voltage | 24 VAC/DC |
Relay Construction | Mechanical |
Relay Contact Ratings | Resistive: 20 A @ 277 VAC | Resistive: 20 A @ 28 VDC | Motor: 1 H.P. @ 120 VAC | Motor: 1 H.P. @ 208 VAC | Motor: 2 H.P. @ 250 VAC | Motor: 2 H.P. @ 277 VAC | Tungsten: 10 A @ 120 VAC |
Relay Poles/Throw | SPST |
Sensor | Current Switch (Hawkeye) |
Setpoint | Fixed |
Warranty | 5 years |
