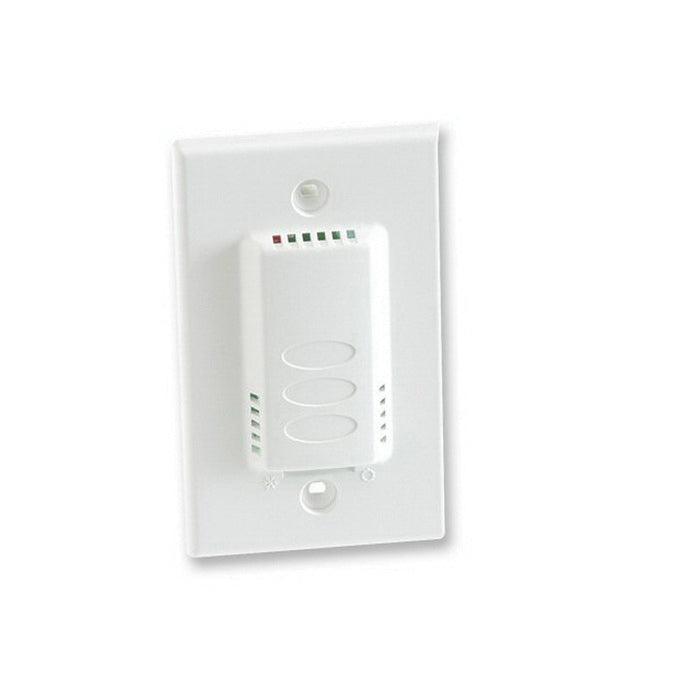

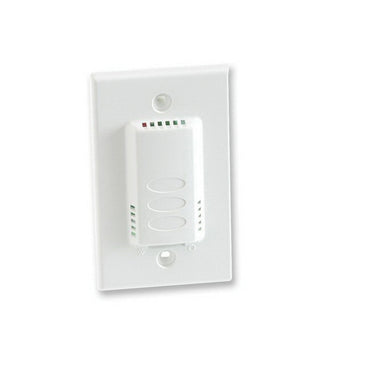

TEAJS | Temp | Economy Wall | 0-5V Output | Veris

Cloud White ABS Plastic 0 to 5 VDC Transmitter Temperature Sensor

Brand: VerisSKU: TEAJS

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TEAJS

Jump to: Overview & Specifications Reviews

Overview Details for TEAJS

These wall mounted temperature sensors feature a discreet appearance combined with high accuracy and reliability. Aesthetically pleasing in any interior environment.

Wall mount - low-profile housing
Quick installation - reduced downtime for deployment
Solid-state, integrated circuit transmitter

Specifications

Item Number	TEAJS
Brand	Veris
Application Zone	Living Space
Application	Wall
Brand	Veris
Dimension Depth	0.5" (13 mm)
Dimension Height	3.2" (82 mm)
Dimension Width	2.8" (72 mm)
Display Type	None
Electrical Wiring Size	22 AWG (0.32 mm²)
Enclosure Material	ABS Plastic
Measurement Type	Temperature
Model	TEAJS
Mounting	Wall
Operating Temperature	-13 - 221 °F (-25 - 105 °C)
Output Specifications	0 - 5 V
Outputs	Analog output
Override	No
Product Certification	CE
Product Type	Sensor
Range	TE
Sensor Configuration	Room Only
Sensor	Temperature
Setpoint	No
Supply Voltage AC Nominal	24 VAC
Supply Voltage DC Range	12 - 30 VDC
Temperature Calibration Certificate	None
Temperature Measurement Accuracy	±0.9 °F (±0.5 °C)
Temperature Measurement Range	50 - 95 °F (10 - 35 °C)
Temperature Sensor Type	Temperature Transmitter
Warranty	5 years
