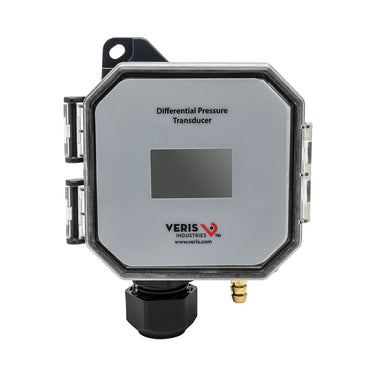

PX3ULN05S | Pressure,Dry,Univ,LCD,NIST,0-10 InWC | Veris
Documents and manuals
Veris PX3ULN05S Documents
Overview
Details for PX3ULN05S
Description
The PX3 transducer can measure either air pressure or velocity with the flip of a switch. The PX3 is available in three installation configurations: duct, panel or universal. Duct and panel models have two pressure and velocity options: 0-1 in. WC / 0-3,000 ft/min or 1-10 in. WC / 3,000-6,000 ft/min with four field-selectable subranges. The universal model comes in one pressure/velocity range: 0-10 in. WC / 0-7,000 ft/min with seven field-selectable sub-ranges for pressure and eight for velocity. All variants are available with and without display. The PX3 has an IP65/NEMA 4 environmental rating and a 5-year limited warranty.
Reduce field failures
Excellent tolerance to overpressure & vibration reduces field failures
Reduce setup
Selectable ranges and scales reduce setup time and number of models to stock
High accuracy
High accuracy digital sensor with seven selectable pressure and eight velocity sub-ranges, maintains calibration and reduces callbacks
Water-resistant housing
IP65/NEMA 4 housing allows for mounting in wash-down locations
Maintenance free
High reliability sensor technology for long-term, maintenance-free operation
Circuit protection
Circuit protection avoids damage due to incorrect input wiring
Application
- Duct static pressure(Pressure mode)
- Building or room pressure(Pressure mode)
- Filter status(Pressure mode)
- Air flow measurement(Velocity mode)
Specifications
| Item Number | PX3ULN05S |
| Brand | Veris |
| Application Zone | Plant Room |
| Application | Duct Pressure Monitoring | Filter Monitoring | Fan Monitoring | VAV Control | Air Velocity Monitoring |
| Brand | Veris |
| Burst Pressure | 5 psid (34 500 Pa) |
| Calibration Certificate | NIST Certificate |
| Dimension Depth | 1.6" (42 mm) |
| Dimension Height | 4.4" (112 mm) |
| Dimension Probe Diameter | 0.3" (7 mm) |
| Dimension Probe Length | 7.4" (188 mm) |
| Dimension Weight | 4.4 oz (125 g) |
| Dimension Width | 3.5" (88 mm) |
| Display Precision | 0.001 |
| Display Size | 0.7" x 1.1" (17 mm x 28 mm) |
| Display Type | LCD |
| Electrical Wiring Size | AWG 22 (35 mm²) |
| Electrical Wiring | 3-wires |
| Enclosure Material | ABS Plastic |
| Fitting Material | Brass |
| Fitting Size | 0.24" (6 mm) |
| Fitting Type | Male |
| IP Protection | IP65 (NEMA 4) |
| LED Indicator Type | RGB |
| Measurement Type | Differential Pressure |
| Medium | Air | Gas |
| Model | PX3ULN05 |
| Mounting | Duct | Panel |
| Operating Temperature | -4 - 140 °F (-20 - 60 °C) |
| Output Specifications | 4 - 20 mA | 0 - 5 V | 0 - 10 V |
| Outputs | Analog output |
| Pressure Measurement Accuracy | ±1% of F.S. |
| Pressure Measurement Range | 0.1"WC (25 Pa) | 0.25"WC (50 Pa) | 0.5"WC (100 Pa) | 1"WC (250 Pa) | 2.5"WC (500 Pa) | 5"WC (1000 Pa) | 10"WC (2500 Pa) |
| Product Certification | CE |
| Product Type | Sensor |
| Range | PX3 |
| Standards EMC | EN 61000-6-3 | Class B | EN 61000-6-1 | EN61326-1 | EN61326-2-3 |
| Supply Voltage AC Nominal | 24 VAC |
| Supply Voltage DC Range | 12 - 30 VDC |
| Warranty | 5 years |
