H922060A | Current Xdcr | Split-Core | Fxd 0-60A | 0-5VDC | Veris

Hawkeye 0 to 60 A Input 0 to 5 VDC Output Analog Current Transducer, Split-Core, 1.1 x 0.8 in

Brand: VerisSKU: H922060A

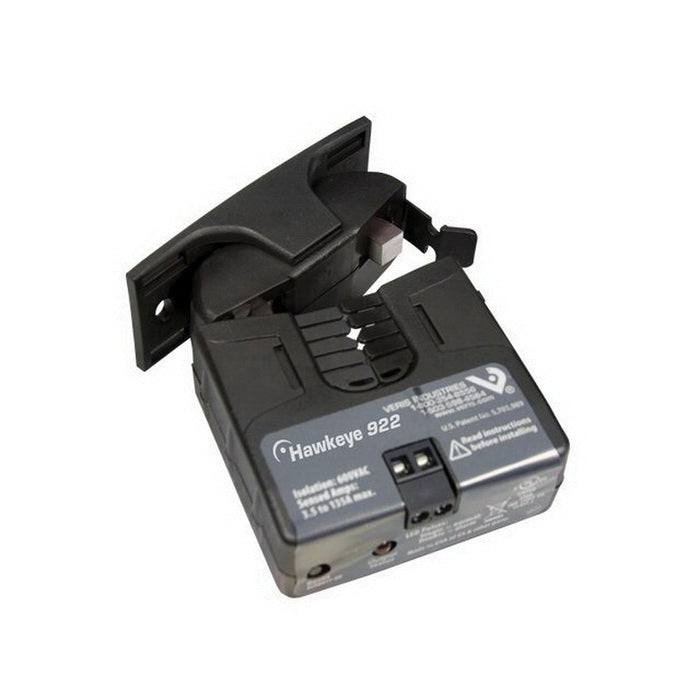

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to H922060A

Jump to: Overview & Specifications Reviews

Overview Details for H922060A

The Hawkeye 922060A provide accurate load trending information with a proportional 0 to 5 VDC output signal. Slide-switches provide easy field selection of monitored amperage range without jumpers.

Self-powered analog current sensor simplifies installation
No external power required for sensor
Self-gripping, split-core design for fast retrofit installation, no need to remove conductor
Factory calibrated ranges for increased flexibility and resolution
No jumpers on unit, reduces installation error
Induced from monitored conductor sensor power

Specifications

Item Number	H922060A
Brand	Veris
Application	Building Automation Systems
Current Core	Split Core
Current Measurement Accuracy	±2% of F.S. above 6 A
Current Measurement Range	0 - 60 A
Current Sensor type	Current Transducer; AC
Electrical Wiring Size	24 - 14 AWG (0.2 - 2.1 mm²)
Measurement Type	AC Current
Model	H922060A
Monitored Frequency Range	50 - 60 Hz
Monitored Wire Size	0.8" (21 mm)
Mounting	Split Core
Operating Humidity	10 - 90% RH; non-condensing
Operating Temperature	5 - 140 °F (-15 - 60 °C)
Output Specifications	0 - 5 VDC
Outputs	Analog output
Product Certification	UL \| CE
Product Type	Sensor
Range	HX22 Series
Relay Coil Voltage	None
Relay Contact Ratings	None
Relay Poles/Throw	None
Sensor	Current Sensor (Hawkeye)
Warranty	5 years
