Hawkeye 1 to 135 A Adjustable Trip Point Standard Output Current Switch with LED Status, Solid-Core

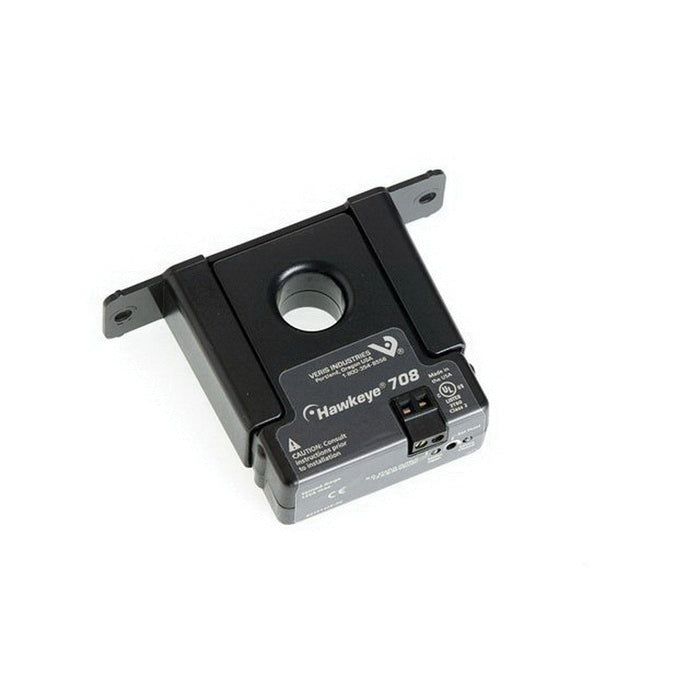

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to H708

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Veris H708 Documents

CE Declaration Datasheet Installation Guide More Info

Overview

Details for H708

Description

Hx08 Series and H701 adjustable current switches offer high performance, with a wide array of amperage range options. These products can accurately detect belt loss, coupling shear, or other mechanical failure on unit vents, exhaust fans, recirculation pumps, and other fixed loads down to as little as 1/5 HP.

APPLICATIONS

Detecting belt loss, coupling shear, and mechanical failure
Verifying lighting circuit and other electrical service run times
Monitoring status of industrial process equipment
Monitoring status of critical motors (compressor, fuel, etc.)
VFD output On/Off status

Specifications

Item Number	H708
Brand	Veris
Application	Building Automation Systems
Current Core	Solid Core
Current Measurement Range	1 - 135 A
Current Sensor type	Current Switch; AC
Electrical Wiring Size	24 - 14 AWG (0.2 - 2.1 mm²)
Measurement Type	AC Current
Model	H708
Monitored Frequency Range	50 - 60 Hz
Monitored Wire Size	0.7" (18 mm)
Mounting	Solid Core
Operating Humidity	10 - 90% RH; non-condensing
Operating Temperature	5 - 140 °F (-15 - 60 °C)
Output Specifications	N.O. 1 A @ 30 VAC/DC
Outputs	Switch output
Product Certification	UL
Product Type	Sensor
Range	HX08 Series
Relay Coil Voltage	None
Relay Contact Ratings	None
Relay Poles/Throw	None
Sensor	Current Switch (Hawkeye)
Setpoint	Adjustable
Warranty	5 years
