H6812-2000A-.3V | CT | Split Core | Size 4 | 5.5in x 2.5in ID | 2000A:0.333V | Veris

2000 A Input 0.333 VAC Output Current Transducer, Split-Core, 5-1/2 x 2-1/2 in (Large)

Brand: VerisSKU: H6812-2000A-.3V

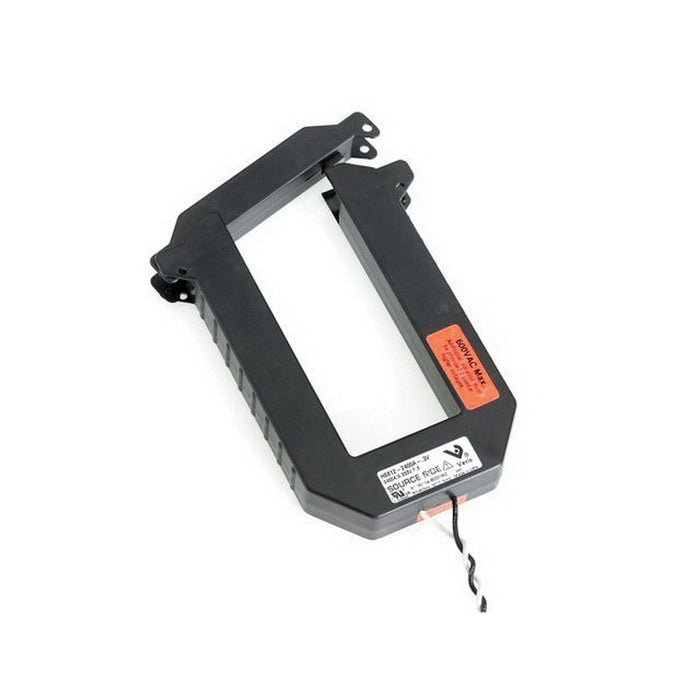

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for H6812-2000A-.3V

The H681x-V series of current transducers provide a standard voltage output.

Item Number	H6812-2000A-.3V
Brand	Veris
Accuracy	+/-1% of Reading from 10 to 100% of Rated Current
Current Core	Split Core
Current Measurement Range	0 - 2000 A
Dimensions	6.0" (151 mm) W x 7.9" (201 mm) L x 1.2" (30 mm) H
Environmental Conditions	Humidity Range: 0 to 95% Non-Condensing; Storage Temperature: -40 to 158 °F
Frequency Rating	50 - 60 Hz
Mounting	Split-Core
Operating Temperature	5 - 140 °F
Output Specifications	0.3 V
Product Type	Current Transducer
Range	H681X-V
Sensor	Current Sensor (Hawkeye)
