H6812-1200A-5AU | CT | Split Core | Size 4 | 5.5in x 2.5in ID | 1200A:5A | Veris

1200 A Input 5A Output Current Transformer, Split-Core, 1.16" x 2.47 " (Large), UL2808 Listed

Brand: VerisSKU: H6812-1200A-5AU

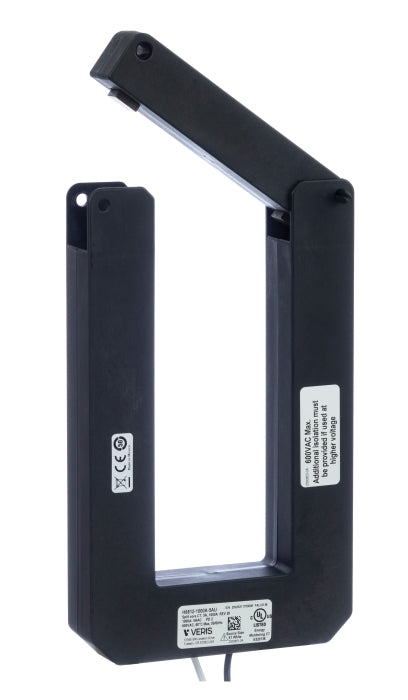

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for H6812-1200A-5AU

Veris split-core current transformers provide a 0 to 5A AC output.

Veris split-core current transformers provide a 0 to 5A AC output.

Item Number	H6812-1200A-5AU
Brand	Veris
Accuracy	Meets or exceeds accuracy requirements specified in IEC 61869-2; Table 201; Class 1
Current Core	Split Core
Current Measurement Range	0 - 1200 A
Dimensions	4.91” (125 mm) W x 8.12” (206 mm) L x 1.16” (30 mm) H
Environmental Conditions	Humidity Range: 0 to 95% Non-Condensing; Storage Temperature: -40 to 158 °F
Frequency Rating	50 - 60 Hz
Mounting	Split-Core
Operating Temperature	5 - 140 °F
Output Specifications	5 A
Product Type	Current Transformer
Range	H681X-5A
Sensor	Current Sensor (Hawkeye)
