H6811-400A-.3V | CT | Split Core | Size 3 | 2.9in x 2.5in ID | 400A to 0.333V | Veris

400 A Input 0.333 VAC Output Current Transducer, Split-Core, 2.9 x 2-1/2 in (Medium)

Veris | H6811-400A-.3V

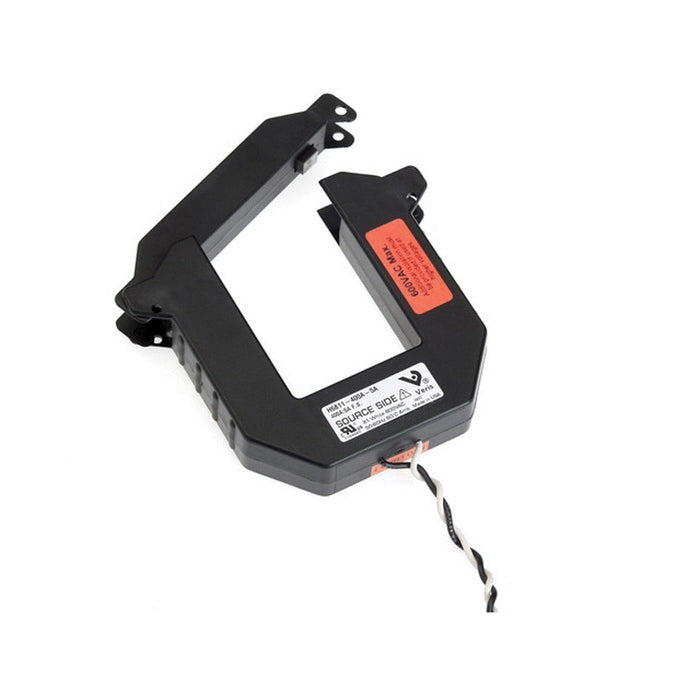

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to H6811-400A-.3V

Documents and manuals

Veris H6811-400A-.3V Documents

Overview

Details for H6811-400A-.3V

The H681x-V Series of 1 volt and 0.333 volt split-core current transformers (CTs) provide secondary AC voltage proportional to the primary (sensed) current. For use with power meters, data loggers, chart recorders, and other instruments, the H681x-V series CTs provide a costeffective means to transform electrical service amperages to avoltage compatible with monitoring equipment. Note: See the H681x-5A Series datasheet for 5A output models.

Specifications

Item Number H6811-400A-.3V
Brand Veris
Accuracy +/-1% of Reading from 10 to 100% of Rated Current
Current Core Split Core
Current Measurement Range 0 - 400 A
Dimensions 6.0" (151 mm) W x 5.2" (132 mm) L x 1.2" (30 mm) H
Environmental Conditions Humidity Range: 0 to 95% Non-Condensing; Storage Temperature: -40 to 158 °F
Frequency Rating 50 - 60 Hz
Mounting Split-Core
Operating Temperature 5 - 140 °F
Output Specifications 0.3 V
Product Type Current Transducer
Range H681X-V
Sensor Current Sensor (Hawkeye)
