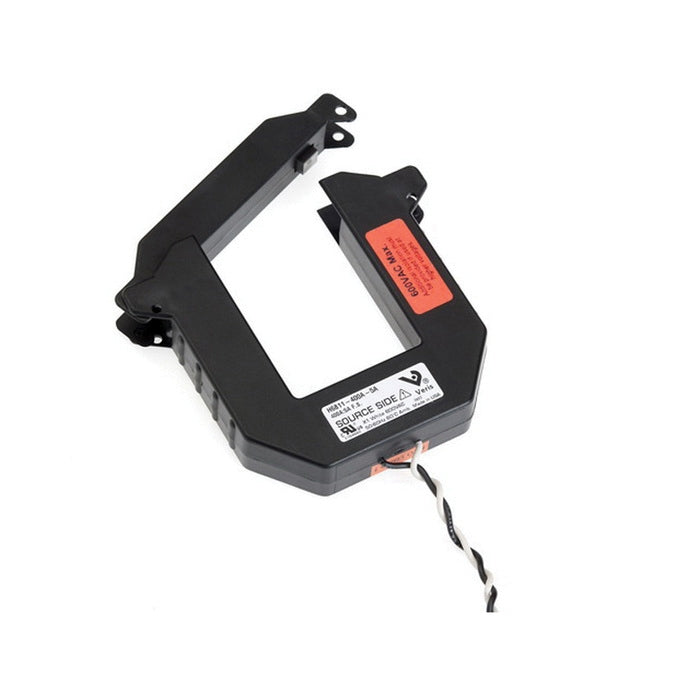

H6811-400A-1V | CT | Split Core | Instrument Grade | 2.9in x 2.5in ID | 400A to 1V | Veris

400 A Input 1 VAC Output Current Transducer, Split-Core, 2.9 x 2-1/2 in (Medium)

Brand: VerisSKU: H6811-400A-1V

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for H6811-400A-1V

The H681x-V series of current transducers provide a standard voltage output.

Item Number	H6811-400A-1V
Brand	Veris
Accuracy	+/-1% of Reading from 10 to 100% of Rated Current
Current Core	Split Core
Current Measurement Range	0 - 400 A
Dimensions	6.0" (151 mm) W x 5.2" (132 mm) L x 1.2" (30 mm) H
Environmental Conditions	Humidity Range: 0 to 95% Non-Condensing; Storage Temperature: -40 to 158 °F
Frequency Rating	50 - 60 Hz
Mounting	Split-Core
Operating Temperature	5 - 140 °F
Output Specifications	1 V
Product Type	Current Transducer
Range	H681X-V
Sensor	Current Sensor (Hawkeye)
