E23C6-18 | SysMtr,FD,18Rope,3P,4W ANSI,RS485,Mb/BAC | Veris

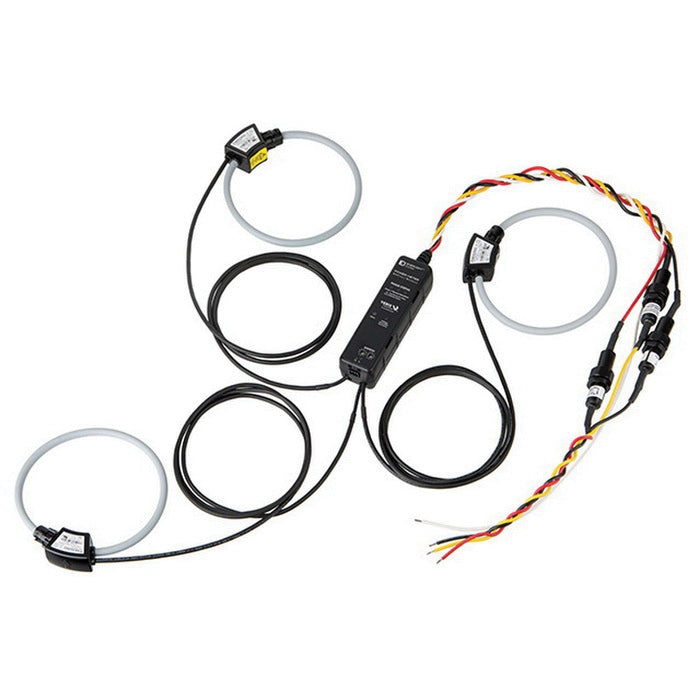

The Veris E23C6-18 is a high-precision, three-phase, three-wire power and energy meter designed for seamless integration into building automation systems (BAS) and various industrial applications. It utilizes an 18" Rogowski coil current transformer for accurate non-invasive current measurement and features Modbus RTU and BACnet MS/TP communication protocols.

Precise energy monitoring is crucial for efficient energy management, cost allocation, and renewable energy integration. The Veris E23C6-18 provides a reliable solution for a wide range of applications, including:

• Building Automation Systems (BAS) integration for enhanced energy efficiency.
• Accurate sub-metering in commercial and industrial settings.
• Seamless integration with renewable energy sources.
• Real-time energy consumption monitoring and analysis.

Key Features:

• Superior Accuracy: ±0.5% system accuracy ensures precise energy measurements.
• Versatile Communication: Modbus RTU and BACnet MS/TP protocols enable easy integration with various systems.
• Non-Invasive Measurement: 18" Rogowski coil current transformer eliminates the need for intrusive current measurements.
• Simplified Installation: Factory-calibrated and pre-wired for quick and straightforward installation. DIN rail mounting for convenient placement.
• Robust and Reliable: Designed for reliable performance in diverse environments, with an operating temperature range of 0°C to 50°C and an IP rating of IP20.

System calibrated Enercept E2x series power and energy meters provide a unique solution for measuring energy data. Designed with the user in mind, these meters offer maximum application flexibility for retrofit applications. These meters provide innovative three-phase networked (Modbus RTU and BACnet MS/TP) power transducers that calibrate measurement electronics, high accuracy industrial grade CTs and fusing protection in a single package. External mounting is eliminated, greatly reducing installation and configuration time and cost. Color coordination between voltage leads and CTs makes phase matching easy. Communicating models support auto detection of baud rate, parity and protocol for Modbus RTU and BACnet MS/TP. Up to 63 Enercept meters can be daisy-chained on a single RS-485 network.

• Pre-wired and factory calibrate - meter, CTs and fuse pack pre-wired and factory calibrated for timesaving installation and improved system-level accuracy meter + CTs + Fuse pack (ANSI models only), meter + CTs (IEC models)
• 90 to 480 VAC application versatility with fewer models to stock
• One part number simplifies ordering - meter + CTs + fuse pack (ANSI models only)
• Easy ordering and stocking - Modbus and BACnet protocols along with uni-directional and bi-directional feature sets in one unit
