XPSMCMCP0802 | Controller with 8 inputs 2 outputs monitors expansion modules with screw term | Square D by Schneider Electric

Brand: Square DSKU: XPSMCMCP0802

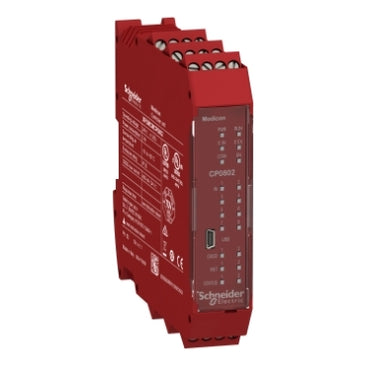

Square D | XPSMCMCP0802
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to XPSMCMCP0802

Overview Details for XPSMCMCP0802

Controller with 8 inputs 2 outputs monitors expansion modules with screw term

This Modicon MCM safety controller CPU is supplied with 24Vdc, has 8 safe digital inputs, 2 start/restart interlock inputs, 2 output OSSD pairs, 4 test outputs and 2 status outputs and is fitted with captive screw clamp terminals. It embeds a Mini USB 2.0 connector to receive the configuration done with the software EcoStruxure Machine Expert - HVAC. It is an appropriate solution for machines with a small number of safety functions requiring the configuration flexibility of a safety controller. It can be used as standalone or with fourteen expansion modules. The system is expandable up to 128 inputs, 16 outputs and up to 32 diagnostic status outputs, ideal for machines requiring multiple safety function monitoring. This safety controller CPU figures LEDs on its front face, displaying the status (power supply, run, internal or external errors, inputs status, communication, master enable, restart signal, output channels). It is a CPU with a rated supply voltage of 24V DC and a maximum power dissipation of 3W. It is furnished with spring clamp terminals, removable terminal block for electrical connection. It is an IP20 rated product. It weighs 0.25kg. Its dimension are 22.5mm (Depth), 99mm (Height) and 114.5mm (Width). Its housing is red. It is powered with 24 VDC. It is ideal for monitoring safety functions such as emergency stop, guard monitoring, perimeter guarding, position monitoring, speed monitoring and enabling movement. The safe controller CPU Modicon MCM are certified by TüV SÜD meeting the industrial safety standards of Category 4, PL e according to EN/ISO 13849-1 and SILCL 3 according to IEC/EN 61508 and IEC/EN 60261. Compatible accessories for Modicon MCM module are a memory card and the backplane connector. The safety controller CPU instals on Omega 35mm DIN rail conforming to EN 50022. The Modicon MCM modular safety controller system provide flexibility and scalability from 8 inputs, 2 dual/4 single channel outputs up to 128 inputs, 16 dual/32 single channel outputs, up to 32 or 48 diagnostic status outputs. Modicon MCM modular safety controller system are designed to monitor multiple safety functions on and around a machine to minimise the risk of people accessing the dangerous moving parts of the machine.

Specifications

Range of Product
Modicon Safety automation
Product or Component Type
Safety controller CPU
device short name
XPSMCM
Electrical Connection
Screw terminal
[Us] rated supply voltage
24 V - 20...20 % DC
number of inputs
8 digital input connection;2 digital interlock start/restart or external device monitoring
number of outputs
2 safety outputs OSSD contactor/drive connection;4 test line control outputs;2 configurable diagnostic connection
discrete input voltage
24 V
discrete output current
400 mA
discrete input current
400 mA
discrete input type
Safety input;PNP
discrete output type
PNP
function of module
Emergency stop EN/ISO 13850;Guard monitoring EN/ISO 14119;Enabling switch monitoring EN/IEC 60947-5-1;Light curtain monitoring EN/IEC 61496-1;Foot switch monitoring EN/IEC 60947-5-1;Magnetic switch monitoring EN/ISO 14119;Two-hand control EN 574;Safety mat monitoring EN/ISO 14119;Enabling switch monitoring EN 61326-1;Muting function of light curtains EN/IEC 60947-5-1;Counter functions EN/IEC 61800-5-2;Speed monitoring EN/IEC 61800-5-2
synchronisation time between inputs
< 0.5 ms
power dissipation in W
3 W
maximum number of I/O expansion module
14 128 input;14 16 output
integrated connection type
Backplane expansion bus;USB 2.0 port
data storage equipment
SD card optional)
inductive load
30 mH
load capacitance
0.82 µF
safety level
Can reach category 4 EN/ISO 13849-1;Can reach PL = e EN/ISO 13849-1;Type 4 EN/IEC 61496-1;SILCL 3 IEC 62061
quality labels
CE
local signalling
1 LED green PWR power ON;1 LED green RUN RUN (status);1 LED red E IN internal error;1 LED red E EX external error;1 LED orange COM communication;1 LED blue EN master enable;8 LEDs yellow IN input status;2 LEDs green/red OUT output status;2 LEDs yellow RST restart signal;2 LEDs yellow STATUS output channel
connections - terminals
2 captive screw terminals;removable terminal block;1 captive screw terminals;removable terminal block
cable cross section
0.00…0.00 in² (0.2…1.5 mm²) - AWG 24...AWG 16 flexible without cable end;0.00…0.00 in² (0.2…2.5 mm²) - AWG 24...AWG 14 flexible without cable end;0.00…0.00 in² (0.25…1 mm²) - AWG 23...AWG 18 flexible with cable end;without bezel;0.00…0.00 in² (0.25…2.5 mm²) - AWG 23...AWG 14 flexible with cable end;with bezel;0.00…0.00 in² (0.25…1.5 mm²) - AWG 23...AWG 16 flexible with cable end;without bezel;0.00…0.00 in² (0.5…1.5 mm²) - AWG 20...AWG 16 flexible with cable end;with double bezel;0.00…0.00 in² (0.2…1 mm²) - AWG 24...AWG 18 solid without cable end;0.00…0.00 in² (0.2…2.5 mm²) - AWG 24...AWG 14 solid without cable end
mounting support
Omega 35 mm DIN rail EN 50022
Depth
4.51 in (114.5 mm)
Height
3.90 in (99 mm)
Width
0.89 in (22.5 mm)
Net Weight
0.55 lb(US) (0.25 kg)
Standards
EN/IEC 61508;EN/ISO 13849-1;EN/IEC 61496-1;EN/IEC 61800-5-1;IEC 62061
Product Certifications
cULus;RCM;TÜV
IP degree of protection
IP20
Ambient air temperature for operation
14…131 °F (-10…55 °C)
Ambient Air Temperature for Storage
-4…185 °F (-20…85 °C)
Relative humidity
10…95 %
pollution degree
2
[Uimp] rated impulse withstand voltage
4 kV EN/IEC 61800-5-1
safety reliability data
PFHd = 6.06E-9 1/h;DC > 99 %;MTTFd < 100 years high
insulation
250 V AC between power supply and housing EN/IEC 61800-5-1
overvoltage category
II
electromagnetic compatibility
Electrostatic discharge immunity test 6 kV on contact) EN/IEC 61000-4-2;Electrostatic discharge immunity test 20 kV on air) EN/IEC 61000-4-2;Susceptibility to electromagnetic fields 10 V/m 80...1000 MHz) EN/IEC 61000-4-3;Susceptibility to electromagnetic fields 30 V/m 1.4 GHz...2 GHz) EN/IEC 61000-4-3
vibration resistance
+/-0.35 mm 10…55 Hz)EN/IEC 61496-1
shock resistance
10 gn 16 ms) 1000 shocks on each axis EN/IEC 61496-1
Service Life
20 year(s)
Category
22477-SAFETY MODULES (PREVENTA)
Discount Schedule
SAF2
GTIN
3606480748561
Returnability
Yes
Country of origin
IT
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
1.77 in (4.5 cm)
Package 1 Width
4.92 in (12.5 cm)
Package 1 Length
6.50 in (16.5 cm)
Package 1 Weight
9.03 oz (256.0 g)
Unit Type of Package 2
S03
Number of Units in Package 2
26
Package 2 Height
11.81 in (30.0 cm)
Package 2 Width
11.81 in (30.0 cm)
Package 2 Length
15.75 in (40.0 cm)
Package 2 Weight
15.93 lb(US) (7.225 kg)
