Details for 8501CO15V14

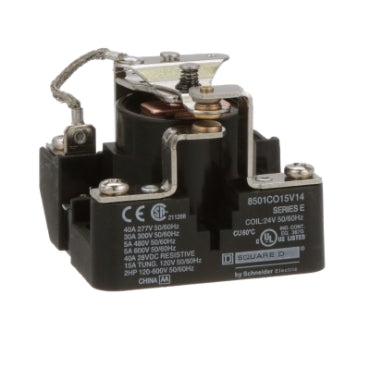

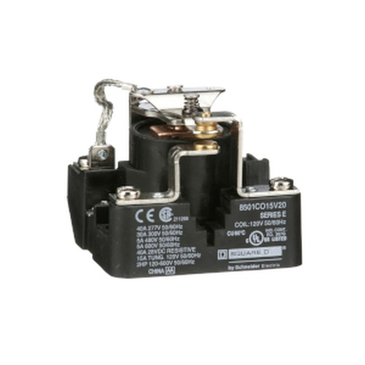

Power Relay, SPDT, 1NO and 1NC, 1.5 HP, 30 A resistive at 300 VAC, 24 VAC coil
8501C power relays are used to control small single phase motors and other light loads. These power relays are available with a variety of contact configurations. This relay has a SPDT contact configuration with one normally open and one normally closed contact. A variety of coil voltages are available. This relay has a 24 VAC nonreplaceable coil. Designed with heavy duty contacts that are rated for single phase 1.5 HP motors at 120 VAC, 230 VAC or 600 VAC. It also has a 30 A resistive rating at 300 VAC or 5 A resistive rating at 600 VAC. These relays have a durable open frame construction. 8501C power relays are UL listed and CSA certified. This range of relays is used in electric heater, pumping, conveyor and material handling applications.Specifications
- product range
- Power Relay 8501C
- product type
- Power relay
- short name
- type C
- [In] rated line current
- 30 A
- device application
- Suited for controlling small single phase motors and other light loads
- switch function
- SPDT
- contact composition
- 1 NO/1 NC
- [Uc] control circuit voltage
- 24 V AC 50/60 Hz
- horsepower rating
- 2.0 hp
- maximum switching voltage
- 600 V AC
- class number
- 8501
- phase
- 1 phase
- terminal connects
- Screw clamp terminal
- wire range
- AWG 10 copper
- terminal tightening torque
- 11…15 lbf.in (1.24…1.69 N.m)
- coil burden
- 10 VA
- mounting
- Panel mounting
- ambient temperature range - operational
- -22…122 °F (-30…50 °C)
- product certifications
- UL listed file E78351 CCN NLDX;CSA;CE
- height
- 2.43 in (61.72 mm)
- width
- 2.5 in (63.50 mm)
- depth
- 2.18 in (55.37 mm)
- Category
- 21131-8501 C
- Discount Schedule
- CP2
- GTIN
- 785901052098
- Returnability
- Yes
- Country of origin
- CN
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 2.30 in (5.842 cm)
- Package 1 Width
- 2.60 in (6.604 cm)
- Package 1 Length
- 2.60 in (6.604 cm)
- Package 1 Weight
- 7.84 oz (222.26 g)
- Warranty
- 18 months
