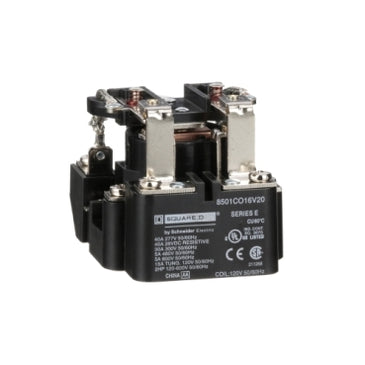

8501CO16V20 | Power Relay, Type C, 2 HP, 30A resistive at 300 VAC, SPDT, 2 normally open and 2 normally closed contact, 120 VAC coil | Square D by Schneider Electric
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 8501CO16V20
Overview
Details for 8501CO16V20
Power Relay, Type C, 2 HP, 30A resistive at 300 VAC, SPDT, 2 normally open and 2 normally closed contact, 120 VAC coil
8501C power relays are used to control small single phase motors and other light loads. These power relays are available with a variety of contact configurations. This relay has a DPDT contact configuration with two normally open and two normally closed contact. A variety of coil voltages are available. This relay has a 120 VAC nonreplaceable coil. Designed with heavy duty contacts that are rated for single phase 1.5 HP motors at 120 VAC, 230 VAC or 600 VAC. It also has a 30 A resistive rating at 300 VAC or 5 A resistive rating at 600 VAC. These relays have a durable open frame construction. 8501C power relays are UL listed and CSA certified. This range of relays is used in electric heater, pumping, conveyor and material handling applications.Specifications
- product range
- Power Relay 8501C
- product type
- Power relay
- short name
- type C
- [In] rated line current
- 30 A
- device application
- Suited for controlling small single phase motors and other light loads
- switch function
- DPDT
- contact composition
- 2 NO/2 NC
- [Uc] control circuit voltage
- 120 V AC 50/60 Hz
- horsepower rating
- 2.0 hp
- maximum switching voltage
- 600 V AC
- class number
- 8501
- phase
- 1 phase
- terminal connects
- Screw clamp terminal
- wire range
- AWG 10 copper
- terminal tightening torque
- 11…15 lbf.in (1.24…1.69 N.m)
- coil burden
- 10 VA
- mounting
- Panel mounting
- ambient temperature range - operational
- -22…122 °F (-30…50 °C)
- product certifications
- UL listed file E78351 CCN NLDX;CSA;CE
- height
- 3.12 in (79.25 mm)
- width
- 2.5 in (63.50 mm)
- depth
- 2.31 in (58.67 mm)
- Category
- 21131-8501 C
- Discount Schedule
- CP2
- GTIN
- 785901052135
- Returnability
- Yes
- Country of origin
- CN
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 2.60 in (6.604 cm)
- Package 1 Width
- 3.00 in (7.62 cm)
- Package 1 Length
- 4.00 in (10.16 cm)
- Package 1 Weight
- 10.08 oz (285.763 g)
- Unit Type of Package 2
- CAR
- Number of Units in Package 2
- 25
- Package 2 Height
- 4.20 in (10.668 cm)
- Package 2 Width
- 15.80 in (40.132 cm)
- Package 2 Length
- 20.80 in (52.832 cm)
- Package 2 Weight
- 19.60 lb(US) (8.89 kg)
- Warranty
- 18 months
