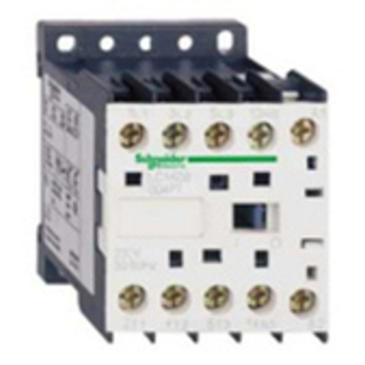

LC7K09004M7 | TeSys K Contactor, 4-Poles (4 NO), 20A, 220-230V AC Coil, Non-Reversing | Square D

Brand: Square DSKU: LC7K09004M7

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LC7K09004M7

Jump to: Overview & Specifications Reviews

Overview Details for LC7K09004M7

TeSys K Contactor, 4-Poles (4 NO), 20A, 220-230V AC Coil, Non-Reversing

TeSys K Contactor

Number of Poles: 4-Poles

Pole Contact Composition: 4 NO

Rated Operational Current: 20A

Control Circuit Voltage: 220-230V AC 50/60 Hz

Non-Reversing

Specifications

range: TeSys
Product or Component Type: Contactor
product name: TeSys K
device short name: LC7K
Device Application: Control
contactor application: Resistive load
utilisation category: AC-1
poles description: 4P
power pole contact composition: 4 NO
[Ue] rated operational voltage: Power circuit 690 V AC 50/60 Hz
[Ie] rated operational current: 20 A 122 °F (50 °C)) <= 440 V AC AC-1 power circuit;16 A 158 °F (70 °C)) 690 V AC AC-1 power circuit
control circuit type: AC 50/60 Hz silent
[Uc] control circuit voltage: 220...230 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage: 8 kV
overvoltage category: III
[Ith] conventional free air thermal current: 20 A 122 °F (50 °C) power circuit
Irms rated making capacity: 110 A AC power circuit NF C 63-110;110 A AC power circuit IEC 60947
rated breaking capacity: 110 A 415 V IEC 60947;110 A 440 V IEC 60947;80 A 500 V IEC 60947;110 A 220...230 V IEC 60947;110 A 380...400 V IEC 60947;70 A 660...690 V IEC 60947
[Icw] rated short-time withstand current: 90 A 122 °F (50 °C) - 1 s power circuit;85 A 122 °F (50 °C) - 5 s power circuit;80 A 122 °F (50 °C) - 10 s power circuit;60 A 122 °F (50 °C) - 30 s power circuit;45 A 122 °F (50 °C) - 1 min power circuit;40 A 122 °F (50 °C) - 3 min power circuit;20 A 122 °F (50 °C) - >= 15 min power circuit
associated fuse rating: 25 A gG <= 440 V power circuit;25 A aM power circuit
average impedance: 3 mOhm - Ith 20 A 50 Hz power circuit
[Ui] rated insulation voltage: Power circuit 600 V UL 508;Power circuit 690 V IEC 60947-4-1;Power circuit 600 V CSA C22.2 No 14
inrush power in VA: 3 VA 68 °F (20 °C))
hold-in power consumption in VA: 3 VA 68 °F (20 °C))
heat dissipation: 3 W
control circuit voltage limits: Operational 0.85...1.1 Uc 122 °F (50 °C));Drop-out 0.1...0.75 Uc 122 °F (50 °C))
connections - terminals: screw clamp terminals 1 0.00…0.01 in² (1.5…4 mm²)solid;screw clamp terminals 1 0.00…0.01 in² (0.75…4 mm²)flexible without cable end;screw clamp terminals 1 0.00…0.00 in² (0.34…2.5 mm²)flexible with cable end;screw clamp terminals 2 0.00…0.01 in² (1.5…4 mm²)solid;screw clamp terminals 2 0.00…0.01 in² (0.75…4 mm²)flexible without cable end;screw clamp terminals 2 0.00…0.00 in² (0.34…1.5 mm²)flexible with cable end
maximum operating rate: 3600 cyc/h
signalling circuit frequency: <= 400 Hz
Mounting Support: Rail;Plate
tightening torque: 7.08…11.51 lbf.in (0.8…1.3 N.m) screw clamp terminals Philips No 2;7.08…11.51 lbf.in (0.8…1.3 N.m) screw clamp terminals flat Ø 6 mm;7.08…11.51 lbf.in (0.8…1.3 N.m) screw clamp terminals pozidriv No 2
operating time: 30...40 ms coil energisation and NO closing;30 ms coil de-energisation and NO opening
safety reliability level: B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1;B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
mechanical durability: 10 Mcycles
electrical durability: 0.18 Mcycles 20 A AC-1 <= 440 V
mechanical robustness: Shocks contactor closed;on X axis10 Gn for 11 ms IEC 60068-2-27;Shocks contactor closed;on Y axis15 Gn for 11 ms IEC 60068-2-27;Shocks contactor closed;on Z axis15 Gn for 11 ms IEC 60068-2-27;Shocks contactor opened;on X axis6 Gn for 11 ms IEC 60068-2-27;Shocks contactor opened;on Y axis10 Gn for 11 ms IEC 60068-2-27;Shocks contactor opened;on Z axis10 Gn for 11 ms IEC 60068-2-27;Vibrations contactor closed4 Gn;5...300 Hz IEC 60068-2-6;Vibrations contactor opened2 Gn;5...300 Hz IEC 60068-2-6
Height: 2.28 in (58 mm)
Width: 1.77 in (45 mm)
Depth: 2.24 in (57 mm)
Net Weight: 0.50 lb(US) (0.225 kg)
standards: BS 5424;IEC 60947;NF C 63-110;VDE 0660
Product Certifications: CSA;UL;UKCA
IP degree of protection: IP2x VDE 0106
protective treatment: TC IEC 60068;TC DIN 50016
Ambient Air Temperature for Storage: -58…176 °F (-50…80 °C)
operating altitude: 6561.68 ft (2000 m) without derating
flame retardance: V1 conforming to UL 94;Requirement 2 conforming to NF F 16-101;Requirement 2 conforming to NF F 16-102
Category: 22326-CTR;K-LINE;AC;OPEN;NONREV
Discount Schedule: I12
GTIN: 3389110492699
Returnability: Yes
Country of origin: FR
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 2.56 in (6.5 cm)
Package 1 Width: 2.40 in (6.1 cm)
Package 1 Length: 1.85 in (4.7 cm)
Package 1 Weight: 7.72 oz (219.0 g)
Unit Type of Package 2: S02
Number of Units in Package 2: 40
Package 2 Height: 5.91 in (15.0 cm)
Package 2 Width: 11.81 in (30.0 cm)
Package 2 Length: 15.75 in (40.0 cm)
Package 2 Weight: 20.32 lb(US) (9.215 kg)
Warranty: 18 months
