TM241CEC24T | CONTROLLER M241-24IO Tr.PNP ETH CAN MAS | Square D by Schneider Electric

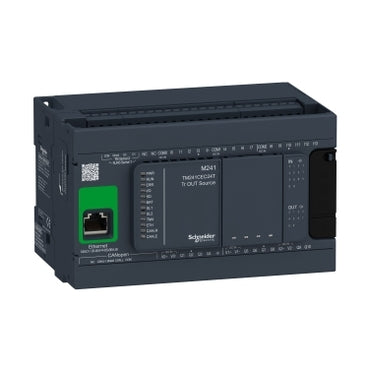

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to TM241CEC24T
Documents and manuals
Square D TM241CEC24T Documents
Overview
Details for TM241CEC24T
CONTROLLER M241-24IO Tr.PNP ETH CAN MAS
Controller M241 24 IO transistor PNP Ethernet CAN master This TM241 controller is part of the Modicon M241 Logic controller range. It has 24 logic I/O and it is supplied with 24V dc. It is supplied with removable screw terminal blocks for connecting the I/O, a removable terminal block for connecting the power supply, a button cell backup battery BR2032. This M241 logic controller has 5 embedded communication ports, two serial links (RS232/RS485 and RS485) and USB mini-B programming port. It also has an Ethernet port and a CANopen port. It enables the control of simple movements or of control loops. The capacity of M221 logic controllers can be enhanced with the Modicon TM3 expansion module offer.Specifications
- Range of Product
- Modicon M241
- Product or Component Type
- Logic controller
- [Us] rated supply voltage
- 24 V DC
- discrete input number
- 14;discrete input 8 fast input IEC 61131-2 Type 1
- discrete output type
- Transistor
- discrete output number
- 10 transistor 4 fast output
- discrete output voltage
- 24 V DC transistor output
- discrete output current
- 0.5 A transistor output Q0...Q9);0.1 A fast output (PTO mode) Q0...Q3)
- discrete I/O number
- 24
- maximum number of I/O expansion module
- 7 (local I/O-Architecture);14 (remote I/O-Architecture)
- supply voltage limits
- 20.4…28.8 V
- inrush current
- 50 A
- power consumption in W
- 32.6…40.4 W with max number of I/O expansion module)
- discrete input logic
- Sink or source
- discrete input voltage
- 24 V
- discrete input voltage type
- DC
- voltage state 1 guaranteed
- >= 15 V input
- voltage state 0 guaranteed
- <= 5 V input
- discrete input current
- 5 mA input;10.7 mA fast input
- input impedance
- 4.7 kOhm input;2.81 kOhm fast input
- response time
- 50 µs turn-on;I0...I13 input;50 µs turn-off;I0...I13 input;<= 2 µs turn-on;I0...I7 fast input;<= 2 µs turn-off;I0...I7 fast input;<= 34 µs turn-on;Q0...Q9 output;<= 250 µs turn-off;Q0...Q9 output;<= 2 µs turn-on;Q0...Q3 fast output;<= 2 µs turn-off;Q0...Q3 fast output
- configurable filtering time
- 1 µs fast input;12 ms fast input;0 ms input;1 ms input;4 ms input;12 ms input
- discrete output logic
- Positive logic (source)
- output voltage limits
- 30 V DC
- maximum current per output common
- 2 A Q0...Q3 fast output;2 A Q4...Q7 output;1 A Q8...Q9 output
- maximum output frequency
- 20 kHz fast output (PWM mode);100 kHz fast output (PLS mode);1 kHz output
- accuracy
- +/- 0.1 % 0.02…0.1 kHz fast output;+/- 1 % 0.1…1 kHz fast output
- maximum leakage current
- 5 µA output
- maximum voltage drop
- <1 V
- maximum tungsten load
- <2.4 W
- protection type
- Short-circuit protection;Short-circuit and overload protection with automatic reset;Reverse polarity protection fast output
- reset time
- 10 ms automatic reset output;12 s automatic reset fast output
- memory capacity
- 8 MB program;64 MB system memory RAM
- data backed up
- 128 MB built-in flash memory backup of user programs
- data storage equipment
- <= 16 GB SD card optional)
- battery type
- BR2032 lithium non-rechargeable 4 year(s)
- backup time
- 2 years 77 °F (25 °C)
- execution time for 1 KInstruction
- 0.3 ms event and periodic task;0.7 ms other instruction
- application structure
- 8 external event tasks;4 cyclic master tasks;3 cyclic master tasks + 1 freewheeling task;8 event tasks
- realtime clock
- With
- clock drift
- <= 60 s/month 77 °F (25 °C)
- positioning functions
- PTO 4 100 kHz);PTO 4 transistor output 1 kHz)
- counting input number
- 4 fast input (HSC mode) 200 kHz;14 standard input 1 kHz
- control signal type
- A/B 100 kHz fast input (HSC mode);Pulse/direction 200 kHz fast input (HSC mode);Single phase 200 kHz fast input (HSC mode)
- integrated connection type
- Non isolated serial link serial 1 RJ45 RS232/RS485;Non isolated serial link serial 2 removable screw terminal block RS485;USB port mini B USB 2.0;Ethernet RJ45;CANopen J1939 male SUB-D 9
- supply
- Serial 1)serial link supply 5 V;<200 mA
- transmission rate
- 1.2...115.2 kbit/s (115.2 kbit/s by default) 49.21 ft (15 m) RS485;1.2...115.2 kbit/s (115.2 kbit/s by default) 9.84 ft (3 m) RS232;480 Mbit/s 9.84 ft (3 m) USB;10/100 Mbit/s Ethernet;1000 kbit/s 65.62 ft (20 m) CANopen;800 kbit/s 131.23 ft (40 m) CANopen;500 kbit/s 328.08 ft (100 m) CANopen;250 kbit/s 820.21 ft (250 m) CANopen;125 kbit/s 1640.42 ft (500 m) CANopen;50 kbit/s 3280.84 ft (1000 m) CANopen;20 kbit/s 8202.10 ft (2500 m) CANopen
- communication port protocol
- Non isolated serial link Modbus master/slave
- port Ethernet
- 10BASE-T/100BASE-TX - 1 copper cable
- ethernet services
- SNMP client/server;Modbus TCP slave device;Modbus TCP server;Modbus TCP client;IEC VAR ACCESS;FTP client/server;SQL client;DHCP client;Ethernet/IP adapter;Send and receive email from the controller based on TCP/UDP library;Web server (WebVisu & XWeb system);OPC UA server;DNS client
- local signalling
- for PWR 1 LED (green);for RUN 1 LED (green);for module error (ERR) 1 LED (red);for I/O error (I/O) 1 LED (red);for SD card access (SD) 1 LED (green);for BAT 1 LED (red);for SL1 1 LED (green);for SL2 1 LED (green);for bus fault on TM4 (TM4) 1 LED (red);for I/O state 1 LED per channel (green);for Ethernet port activity 1 LED (green);for CANopen run 1 LED (green);for CANopen error 1 LED (green)
- electrical connection
- removable screw terminal block for inputs and outputs pitch 5.08 mm);removable screw terminal block for connecting the 24 V DC power supply pitch 5.08 mm)
- maximum cable distance between devices
- Unshielded cable <164.04 ft (50 m) input;Shielded cable <32.81 ft (10 m) fast input;Unshielded cable <164.04 ft (50 m) output;Shielded cable <9.84 ft (3 m) fast output
- insulation
- Between supply and internal logic 500 V AC;Non-insulated between supply and ground;Between input and internal logic 500 V AC;Non-insulated between inputs;Between fast input and internal logic 500 V AC;Between output and internal logic 500 V AC;Non-insulated between outputs;Between fast output and internal logic 500 V AC
- Marking
- CE
- surge withstand
- 1 kV power lines (DC) common mode EN/IEC 61000-4-5;1 kV shielded cable common mode EN/IEC 61000-4-5;0.5 kV power lines (DC) differential mode EN/IEC 61000-4-5;1 kV relay output differential mode EN/IEC 61000-4-5;1 kV input common mode EN/IEC 61000-4-5;1 kV transistor output common mode EN/IEC 61000-4-5
- web services
- Web server
- maximum number of connections
- 16 Ethernet/IP device;8 Modbus server
- CANopen feature profile
- DS 301 V4.02;DR 303-1
- number of slave
- 63 CANopen
- mounting support
- Top hat type TH35-15 rail IEC 60715;Top hat type TH35-7.5 rail IEC 60715;plate or panel with fixing kit
- Height
- 3.54 in (90 mm)
- Depth
- 3.74 in (95 mm)
- Width
- 5.91 in (150 mm)
- Net Weight
- 1.17 lb(US) (0.53 kg)
- Standards
- ANSI/ISA 12-12-01;CSA C22.2 No 142;CSA C22.2 No 213;EN/IEC 61131-2:2007;Marine specification (LR;ABS;DNV;GL);UL 1604;UL 508
- Product Certifications
- IACS E10;RCM;cULus;CSA
- resistance to electrostatic discharge
- 8 kV in air EN/IEC 61000-4-2;4 kV on contact EN/IEC 61000-4-2
- resistance to electromagnetic fields
- 9.14 V/m (10 V/m) 80 MHz...1 GHz EN/IEC 61000-4-3;2.74 V/m (3 V/m) 1.4 GHz...2 GHz EN/IEC 61000-4-3;0.91 V/m (1 V/m) 2 GHz...3 GHz EN/IEC 61000-4-3
- resistance to fast transients
- 2 kV EN/IEC 61000-4-4 power lines);1 kV EN/IEC 61000-4-4 Ethernet line);1 kV EN/IEC 61000-4-4 serial link);1 kV EN/IEC 61000-4-4 input);1 kV EN/IEC 61000-4-4 transistor output)
- resistance to conducted disturbances
- 10 V 0.15...80 MHz EN/IEC 61000-4-6;3 V 0.1...80 MHz Marine specification (LR;ABS;DNV;GL);10 V spot frequency (2;3;4;6.2;8.2;12.6;16.5;18.8;22;25 MHz) Marine specification (LR;ABS;DNV;GL)
- electromagnetic emission
- Conducted emissions 120...69 dBµV/m QP power lines)10…150 kHz EN/IEC 55011;Conducted emissions 63 dBμV/m QP power lines)1.5…30 MHz EN/IEC 55011;Radiated emissions 40 dBμV/m QP class A30…230 MHz EN/IEC 55011;Conducted emissions 79...63 dBμV/m QP power lines)150…1500 kHz EN/IEC 55011;Radiated emissions 47 dBμV/m QP class A230…1000 MHz EN/IEC 55011
- immunity to microbreaks
- 10 ms
- ambient air temperature for operation
- 14…122 °F (-10…50 °C) vertical installation);14…131 °F (-10…55 °C) horizontal installation)
- Ambient Air Temperature for Storage
- -13…158 °F (-25…70 °C)
- relative humidity
- 10…95 %;without condensation in operation);10…95 %;without condensation in storage)
- IP degree of protection
- IP20 with protective cover in place
- pollution degree
- 2
- Operating altitude
- 0...6561.68 ft (0...2000 m)
- Storage altitude
- 0.00…9842.52 ft (0…3000 m)
- vibration resistance
- 3.5 mm 5…8.4 Hz symmetrical rail;3 gn 8.4…150 Hz symmetrical rail;3.5 mm 5…8.4 Hz panel mounting;3 gn 8.4…150 Hz panel mounting
- shock resistance
- 15 gn 11 ms
- Category
- 22533-M2XX PLC & ACCESSORIES
- Discount Schedule
- MSX
- GTIN
- 3606480611117
- Returnability
- Yes
- Country of origin
- ID
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 4.45 in (11.3 cm)
- Package 1 Width
- 5.16 in (13.115 cm)
- Package 1 Length
- 7.37 in (18.729 cm)
- Package 1 Weight
- 23.32 oz (661.0 g)
- Unit Type of Package 2
- S03
- Number of Units in Package 2
- 8
- Package 2 Height
- 11.81 in (30.0 cm)
- Package 2 Width
- 11.81 in (30.0 cm)
- Package 2 Length
- 15.75 in (40.0 cm)
- Package 2 Weight
- 13.58 lb(US) (6.16 kg)
