SC816D200C | METER MAIN RING T-FEED THRU OH/UG 200A | Square D

Brand: Square DSKU: SC816D200C

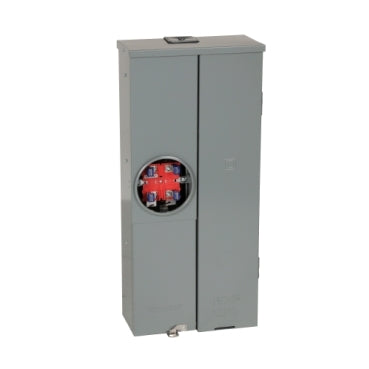

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SC816D200C

Jump to: Overview & Specifications Reviews

Overview Details for SC816D200C

METER MAIN RING T-FEED THRU OH/UG 200A

Meter Mains, Homeline, Combination Service Entrance, ringed socket, 200A, surface mount, maximum 8 spaces, 16 circuits, no bypass The Square D® Homeline® Load Centers and Combination Service Entrance Devices, SC816D200C. Enclosure mounting style performed as surface mount or convertible to semi-flush (use appropriate flange kit). This HOM ring type Meter Mains meets Federal Specification W-P-115c as Type 1, Class 2, are UL Listed, suitable only for use as service equipment. In interior dual main service disconnects (feed-thru lugs on meter mains only). Meter Socket has no By-pass.

Specifications

Product or Component Type: Meter Mains
Range of Product: Homeline
Line Rated Current: 200 A
short-circuit current: 10 kA
network number of phases: 1
meter socket type: Ringed
Mounting: Surface
number of spaces: 8
number of circuits: 16
Number of Tandem Breakers: 8
hub type: A;A-L
electrical connection: Lugs line side;Feed-thru lugs service ground;Feed-thru lugs load side
Wire Size: AWG 6...300 kcmil aluminium/copper)line side;AWG 12...AWG 1/0 aluminium/copper)service ground;AWG 6...250 kcmil aluminium/copper)load side
tightening torque: Main lugs 250 lb.in;AWG 6...300 kcmil;aluminium/copper;Service ground 50 lb.in;AWG 14...AWG 1/0;copper;Service ground 50 lb.in;AWG 12...AWG 1/0;aluminium;Lugs 250 lb.in;AWG 6...250 kcmil;aluminium/copper;Branch lugs 50 lb.in;AWG 3...AWG 1/0;aluminium/copper;Branch lugs 45 lb.in;AWG 6...AWG 4;aluminium/copper;Branch lugs 40 lb.in;AWG 8;aluminium/copper;Branch lugs 35 lb.in;AWG 14...AWG 10;copper;Branch lugs 35 lb.in;AWG 12...AWG 10;aluminium;Cover 10 lb.in
Disconnect: Service disconnect (factory installed)
Main Breaker Rating: 200 A
Branch Breaker Rating: 100 A
service feed location: OH;UG
bypass type: No bypass
Height: 34.00 in (863.60 mm)
Width: 14.95 in (379.73 mm)
Depth: 7.12 in (180.85 mm)
product certifications: UL E-6294
Category: 00048-HOM METER MAINS
Discount Schedule: DE3A
GTIN: 785901859161
Returnability: Yes
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 7.90 in (20.066 cm)
Package 1 Width: 15.50 in (39.37 cm)
Package 1 Length: 33.50 in (85.09 cm)
Package 1 Weight: 51.65 lb(US) (23.428 kg)
Unit Type of Package 2: PAL
Number of Units in Package 2: 15
Package 2 Height: 40.50 in (102.87 cm)
Package 2 Width: 40.00 in (101.6 cm)
Package 2 Length: 48.00 in (121.92 cm)
Package 2 Weight: 814.00 lb(US) (369.224 kg)
Warranty: 18 months
