NSYTRV62 | SCREW TERMINAL 2PTS | Square D (OBSOLETE)

Brand: Square DSKU: NSYTRV62
Square D | NSYTRV62
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to NSYTRV62
Jump to: Overview & Specifications Reviews

Overview Details for NSYTRV62

DISCONTINUED MODEL, CONTACT TECHNICAL SUPPORT FOR REPLACEMENT OPTIONS

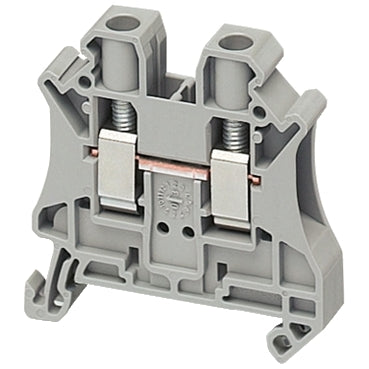

SCREW TERMINAL 2PTS

Passthrough Terminal Block
  • Nominal c.s.a. 6 mm
  • 1 pole - 1x1
  • Grey
  • Max. Electric Values: 1000 V, 57 A
  • Dimensions (mm): 47.7 L x 47.5 H x 8.2 W
Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 6 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA/cURus, 1000V conforming to EN/IEC 60947-7-1 and 690V conforming to ATEX Exe II Ex II 2 GD. The rated current is 41A conforming to EN/IEC 60947-7-1, 50A conforming to CSA/cURus and 40A conforming to ATEX Exe II Ex II 2 GD. It has grey surface treatment. Mounting by clip-on and sideways connection by single-level 1x1 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (ATEX, CSA, cURus, DNV, GL, LR, VDE, IEC-Ex, EAC). It is compliant with Green Premium (RoHS/REACH).

Specifications

range
Linergy
product name
Linergy TR
Product or Component Type
Terminal block
device short name
TRV
accessory / separate part category
Connection accessory
terminal block type
Passthrough
terminal block level
1
Mounting Mode
Clip-on
nominal cross section
0.01 in² (6 mm²)
Length
1.88 in (47.7 mm)
color
Gray
Quantity per Set
Set of 50
Width
0.32 in (8.2 mm)
Height
1.87 in (47.5 mm)
connections - terminals
1 x screw terminal upstream M4);1 x screw terminal downstream M4)
number of connections
2
connection position
Sideways
number of measurement input
2
cable cross section
0.00…0.02 in² (0.2…10 mm²);solid with cable end;0.00…0.01 in² (0.2…6 mm²);flexible with cable end;0.00…0.02 in² (0.2…10 mm²);solid without cable end;0.00…0.02 in² (0.2…10 mm²);flexible without cable end
tightening torque
13.28…15.93 lbf.in (1.5…1.8 N.m)
wire stripping length
0.39 in (10 mm)
tool type
Connection screwdriver;Disconnection screwdriver
[Ue] rated operational voltage
1000 V EN/IEC 60947-7-1;600 V CSA;690 V ATEX Exe II Ex II 2 GD;600 V cURus
Line Rated Current
41 A EN/IEC 60947-7-1;50 A cURus;50 A CSA;40 A ATEX Exe II Ex II 2 GD
Material
Polyamide 6/6 insulating case;Copper alloy connector and screw;Copper alloy commoning link;Chromium-nickel steel spring
dielectric loss
0.01 at 1 MHz IEC 60250;0.01 at 1 MHz VDE 0303-T4
dielectric constant
3.7 at 1 MHz
resistivity
10000 MΩ.m IEC 60093;10000 MΩ.m VDE 0303-T30
surface resistance
1000 GΩ IEC 60093;1000 GΩ VDE 0303-T30
creep resistance
500 CTI (> 400 kB) IEC 60093;500 CTI (> 400 kB) VDE 0303-T30
flame retardance
V0 0.03 in (0.8 mm) UL 94
Net Weight
0.49 oz (13.95 g)
range compatibility
Prisma G;Prisma P;Prisma PH;Prisma Pack;Spacial;Kaedra;Pragma;TeSys
Product Compatibility
Spacial enclosures
Product Certifications
ATEX;LR;VDE;GL;DNV;CSA;cURus;EAC;IEC-Ex
dielectric strength
1000 V IEC 60243-1
ambient air temperature for operation
-40…266 °F (-40…130 °C) IEC 60216-1;-40…266 °F (-40…130 °C) VDE 0304-T21
Category
21715-IEC TERMINAL BLOCKS-NSY;AM1;DF6;GK1
Discount Schedule
CP5
GTIN
3606480532061
Returnability
Yes
Country of origin
DE
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
0.31 in (0.8 cm)
Package 1 Width
1.85 in (4.7 cm)
Package 1 Length
1.89 in (4.8 cm)
Package 1 Weight
0.49 oz (14.0 g)
Unit Type of Package 2
BB1
Number of Units in Package 2
50
Package 2 Height
2.05 in (5.2 cm)
Package 2 Width
4.13 in (10.5 cm)
Package 2 Length
8.46 in (21.5 cm)
Package 2 Weight
25.75 oz (730.0 g)
Unit Type of Package 3
P06
Number of Units in Package 3
7000
Package 3 Height
28.94 in (73.5 cm)
Package 3 Width
31.50 in (80.0 cm)
Package 3 Length
23.62 in (60.0 cm)
Package 3 Weight
253.97 lb(US) (115.2 kg)
Warranty
18 months
