NSYTRV22WH | 5MM WHITE TERMINAL BLOCK | Square D (OBSOLETE)

Brand: Square DSKU: NSYTRV22WH

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to NSYTRV22WH

Jump to: Overview & Specifications Reviews

Overview Details for NSYTRV22WH

DISCONTINUED MODEL, CONTACT TECHNICAL SUPPORT FOR REPLACEMENT OPTIONS

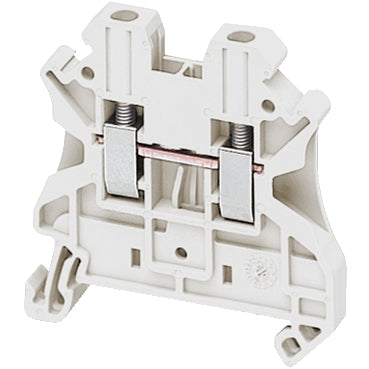

5MM WHITE TERMINAL BLOCK

Passthrough Terminal Block

Nominal c.s.a. 2.5 mm
1 pole - 1x1
White
Max. Electric Values: 1000 V, 32 A
Dimensions (mm): 47.7 L x 47.5 H x 5.2 W

Specifications

range: Linergy
product name: Linergy TR
Product or Component Type: Terminal block
device short name: TRV
accessory / separate part category: Connection accessory
terminal block type: Passthrough
terminal block level: 1
Mounting Mode: Clip-on
nominal cross section: 0.00 in² (2.5 mm²)
Length: 1.88 in (47.7 mm)
color: White
Quantity per Set: Set of 50
Width: 0.20 in (5.2 mm)
Height: 1.87 in (47.5 mm)
connections - terminals: 1 x screw terminal upstream M3);1 x screw terminal downstream M3)
number of connections: 2
connection position: Sideways
number of measurement input: 2
cable cross section: 0.00…0.01 in² (0.14…4 mm²);solid with cable end;0.00…0.00 in² (0.2…2.5 mm²);flexible with cable end;0.00…0.01 in² (0.14…4 mm²);solid without cable end;0.00…0.01 in² (0.14…4 mm²);flexible without cable end
tightening torque: 4.43…5.31 lbf.in (0.5…0.6 N.m)
wire stripping length: 0.35 in (9 mm)
tool type: Connection screwdriver;Disconnection screwdriver
[Ue] rated operational voltage: 1000 V EN/IEC 60947-7-1;600 V CSA;690 V ATEX Exe II Ex II 2 GD;600 V cURus
Line Rated Current: 24 A EN/IEC 60947-7-1;22 A ATEX Exe II Ex II 2 GD;20 A cURus;20 A CSA
Material: Polyamide 6/6 insulating case;Copper alloy connector and screw;Copper alloy commoning link;Chromium-nickel steel spring
dielectric loss: 0.01 at 1 MHz IEC 60250;0.01 at 1 MHz VDE 0303-T4
dielectric constant: 3.7 at 1 MHz
resistivity: 10000 MΩ.m IEC 60093;10000 MΩ.m VDE 0303-T30
surface resistance: 1000 GΩ IEC 60093;1000 GΩ VDE 0303-T30
creep resistance: 500 CTI (> 400 kB) IEC 60093;500 CTI (> 400 kB) VDE 0303-T30
flame retardance: V0 0.03 in (0.8 mm) UL 94
Net Weight: 0.29 oz (8.2 g)
range compatibility: Prisma G;Prisma P;Prisma PH;Prisma Pack;Spacial;Kaedra;Pragma;TeSys
Product Compatibility: Spacial enclosures
Product Certifications: ATEX;IEC-Ex;DNV;EAC;GL;LR;CSA;VDE;cURus
dielectric strength: 1000 V IEC 60243-1
ambient air temperature for operation: -40…266 °F (-40…130 °C) IEC 60216-1;-40…266 °F (-40…130 °C) VDE 0304-T21
Category: 21715-IEC TERMINAL BLOCKS-NSY;AM1;DF6;GK1
Discount Schedule: CP5
GTIN: 3606480531835
Returnability: Yes
Country of origin: DE
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.97 in (5 cm)
Package 1 Width: 2.68 in (6.8 cm)
Package 1 Length: 10.00 in (25.4 cm)
Package 1 Weight: 0.28 oz (8 g)
Unit Type of Package 2: BB1
Number of Units in Package 2: 50
Package 2 Height: 1.97 in (5 cm)
Package 2 Width: 2.68 in (6.8 cm)
Package 2 Length: 10.00 in (25.4 cm)
Package 2 Weight: 14.32 oz (406 g)
Unit Type of Package 3: S03
Number of Units in Package 3: 1350
Package 3 Height: 11.81 in (30 cm)
Package 3 Width: 11.81 in (30 cm)
Package 3 Length: 15.75 in (40 cm)
Package 3 Weight: 24.79 lb(US) (11.244 kg)
Warranty: 18 months
