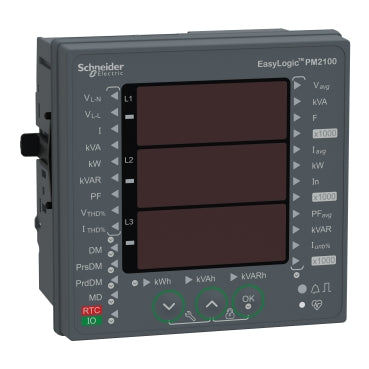

EasyLogic PM2110, Power & Energy meter, Total Harmonic, LED, Pulse, class 1
This device is a panel mount or flush mount power meter with a 96mm by 96mm bezel size having 3 rows of bright red 4 digits 14.2 mm height LED display. The meter measures active energy as per accuracy class Class 1.0 complying to IEC 62053-21 standard with sampling rate of 64 samples per cycle. Able to measures all three vectors of power and energy such as Active, Apparent & Reactive beside Voltages, Current, Frequency and Power Factor. Plus the total Harmonic Distortion for both current and volrage on per phase basis. The meter will function in either 50Hz or 60Hz network frequency and accepts universal control power voltages ranging from 44 to 300 V Line to Neutral AC or DC voltages. Rated current for this meter is either 1A or 5A input. it supports up to 13 different types of wiring schemes under Single Phase, Two Phase or Three Phase configuration types. The range of measurement voltage between Phases is 35 to 480 V Line to Line AC at 45 to 65 Hz while it is 20 to 277 V between Line and Neutral. The meter also has one digital pulse output for any energy parameters congigurable to different energy scaling. Product dimensions are as follows: width 3.78 in (96 mm), depth 2.16 in (54 mm), height 3.78 in (96 mm) and product weight 10.58 oz (300 g).Specifications
- range
- EasyLogic
- product name
- EasyLogic PM2100
- device short name
- PM2110
- Product or Component Type
- Power meter
- Device Application
- Power monitoring;Sub billing
- power quality analysis
- total harmonic distortion
- type of measurement
- Total current harmonic distortion THD (I) per phase;Total voltage harmonic distortion THD (U) per phase;Apparent energy total;Active and reactive energy total;Apparent power total;Active and reactive power total;Current average;Voltage average;Frequency average;Power factor average
- metering type
- Peak demand power PM;QM;SM;Apparent power S;S1;S2;S3;Current I;I1;I2;I3;Reactive power Q;Q1;Q2;Q3;Calculated neutral current;Voltage U;U21;U32;U13;V;V1;V2;V3;Peak demand currents;Unbalance current;Demand power P;Q;S;Active power P;P1;P2;P3;Active;reactive;apparent energy (signed;four quadrant)
- accuracy class
- Class 1 active energy IEC 62053-21;Class 1 reactive energy IEC 62053-24
- measurement accuracy
- Apparent power +/- 1 %;Active energy +/- 1 %;Reactive energy +/- 1 %;Active power +/- 1 %;Voltage +/- 0.5 %;Power factor +/- 0.01;Current +/- 0.5 %;Frequency +/- 0.05 %
- measurement current
- 5…6000 mA
- measurement voltage
- 35…480 V AC 50/60 Hz between phases;20…277 V AC 50/60 Hz between phase and neutral;480…999000 V AC 50/60 Hz with external VT
- frequency measurement range
- 45…65 Hz
- [Us] rated supply voltage
- 44...277 V AC 45...65 Hz +/- 10 %;44...277 V DC +/- 10 %
- Network Frequency
- 60 Hz;50 Hz
- ride-through time
- 100 ms 120 V AC typical;400 ms 230 V AC typical;50 ms 125 V DC typical
- Line Rated Current
- 5 A;1 A
- maximum power consumption in VA
- 6 VA 277 V AC
- maximum power consumption in W
- 3.3 W power lines (AC));2 W 277 V power lines (DC))
- input impedance
- current <= 0.3 mOhm);voltage > 5 MOhm)
- tamperproof of settings
- Protected by access code
- Display Type
- 7 segments LED
- display colour
- Red
- messages display capacity
- 3 fields of 4 characters
- display digits
- 12 - 0.56 in (14.2 mm)
- Demand intervals
- Configurable from 1 to 60 min
- information displayed
- Demand current past value);Demand current present value);Demand power past value);Demand power present value);Voltage;Current;Frequency;Energy consumption;Harmonic distortion;Power factor;Active power;Apparent power;Reactive power;Unbalanced in %
- control type
- 3 x button
- local signalling
- Red LED output signal 1...9999000 pulse/ k-h (kWh;kVAh;kVARh);Green LED module operating (RUN)
- number of inputs
- 0
- Number of Outputs
- 1 pulse
- POP parameter
- 20 ms 5...40 V DC;20 mA 1...9999000 pulse/ k-h (kWh;kVAh;kVARh)
- impulse duration
- 20 ms
- communication port protocol
- POP
- sampling rate
- 64 samples/cycle
- cybersecurity
- Enable/disable communication ports
- Communication Service
- Remote monitoring
- product certifications
- CE IEC 61010-1;CULus UL 61010-1;CULus CSA C22.2 No 61010-1;RCM;EAC;C-tick
- Mounting Mode
- Clip-on
- mounting position
- Vertical
- mounting support
- Framework
- provided equipment
- 1 x Installation guide
- measurement category
- Category III 480 V;Category II 480…600 V
- Electrical Insulation Class
- Double insulation;Class II
- flame retardance
- V-0 conforming to UL 94
- connections - terminals
- Current transformer screw connection bottom) 6;Voltage inputs screw connection top) 4
- Material
- Polycarbonate
- Width
- 3.78 in (96 mm)
- depth
- Total 3.00 in (76.09 mm);Embedded 2.43 in (61.64 mm)
- Height
- 3.78 in (96 mm)
- Net Weight
- 10.58 oz (300 g)
- compatibility code
- PM2110
- Service Life
- 7 year(s)
- IP degree of protection
- Front IP54 IEC 60529;Body IP30 IEC 60529
- relative humidity
- 5…95 % 122 °F (50 °C)
- pollution degree
- 2
- ambient air temperature for operation
- 14…140 °F (-10…60 °C)
- Ambient Air Temperature for Storage
- -13…158 °F (-25…70 °C)
- Operating altitude
- <= 6561.68 ft (2000 m)
- electromagnetic compatibility
- Electrostatic discharge IEC 61000-4-2;Radiated radio-frequency electromagnetic field immunity test IEC 61000-4-3;Electrical fast transient/burst immunity test IEC 61000-4-4;Surge immunity test IEC 61000-4-5;Conducted RF disturbances IEC 61000-4-6;Magnetic field at power frequency IEC 61000-4-8;Voltage dips and interruptions immunity test IEC 61000-4-11;Emission tests FCC Part 15 class A
- overvoltage category
- III
- Category
- 09734-EASYLOGIC METERS AND ACCESSORIES
- Discount Schedule
- PL1
- GTIN
- 3606480800139
- Returnability
- No
- Country of origin
- US
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 4.70 in (11.94 cm)
- Package 1 Width
- 4.80 in (12.19 cm)
- Package 1 Length
- 3.60 in (9.14 cm)
- Package 1 Weight
- 0.90 lb(US) (0.41 kg)
- Unit Type of Package 2
- BB1
- Number of Units in Package 2
- 1
- Package 2 Height
- 4.53 in (11.5 cm)
- Package 2 Width
- 3.43 in (8.7 cm)
- Package 2 Length
- 4.72 in (12 cm)
- Package 2 Weight
- 14.39 oz (408 g)
- Unit Type of Package 3
- S03
- Number of Units in Package 3
- 18
- Package 3 Height
- 11.81 in (30 cm)
- Package 3 Width
- 11.81 in (30 cm)
- Package 3 Length
- 15.75 in (40 cm)
- Package 3 Weight
- 17.16 lb(US) (7.785 kg)
