LXM32MD30N4 | LXM32 MODULAR 30A RMS PEAK 3PH 480V | Square D

Brand: Square DSKU: LXM32MD30N4
Square D | LXM32MD30N4

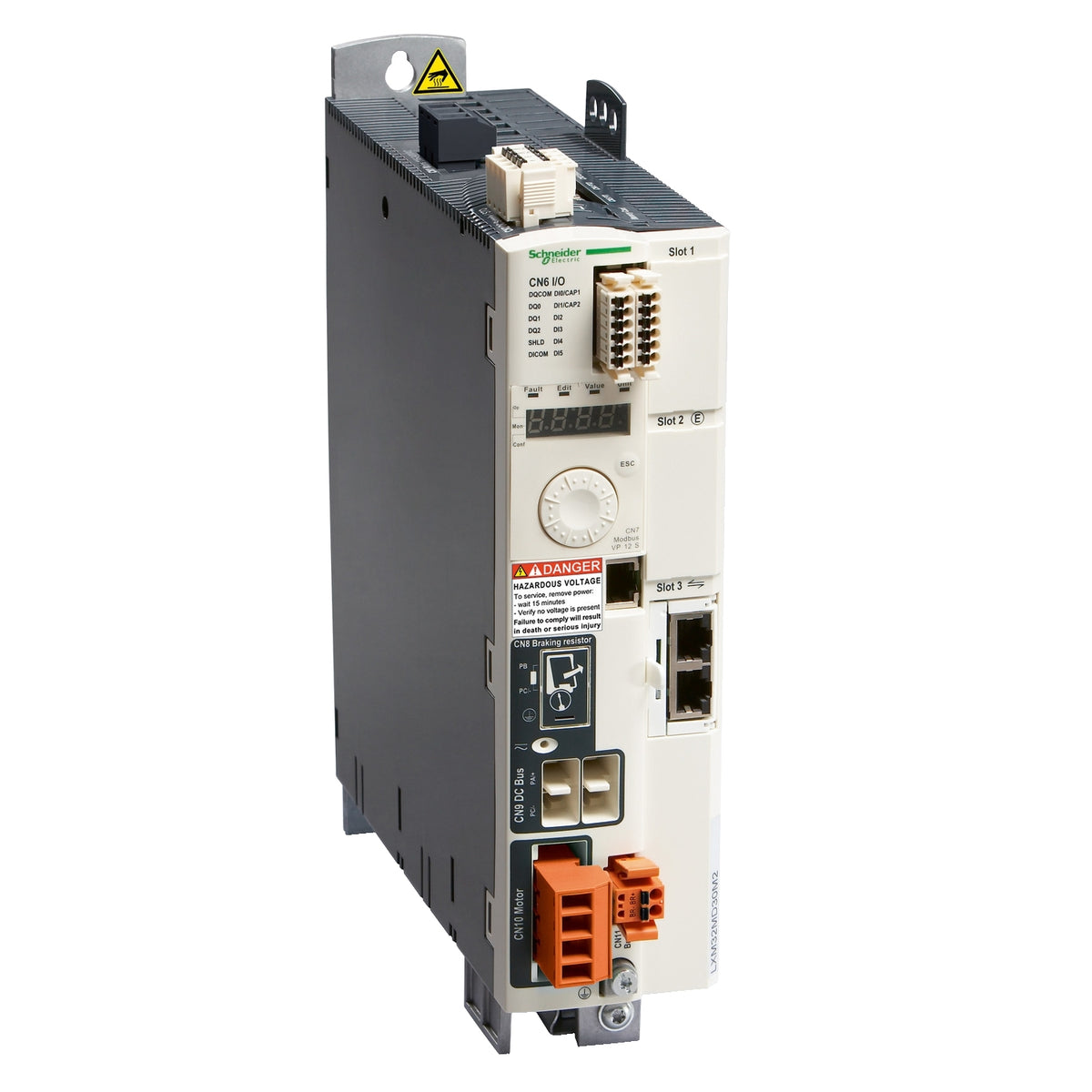

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LXM32MD30N4
Jump to: Overview & Specifications Reviews

Overview Details for LXM32MD30N4

LXM32 MODULAR 30A RMS PEAK 3PH 480V

Motion servo drive - Lexium 32, Three-phase supply voltage 208/480V, 3 kW
  • Range of product : Lexium 32
  • Product or component type : Motion servo drive
  • Device short name : LXM32M
  • Format of the drive : Book
  • Network number of phases : 3ph
  • [Us] rated supply voltage : 200...240 V - 15...10 %, 380...480 V - 15...10 %
  • Supply voltage limits : 323…528 V, 170…264 V
  • Supply frequency : 50/60 Hz - 5...5 %
  • Network frequency : 47.5...63 Hz
  • EMC filter : Integrated
  • Continuous output current : 10 A at 8 kHz
  • Output current 3s peak : 30 A for 5 s
  • Maximum continuous power : 2600 W at 230 V, 13000 W at 400 V
  • Nominal power : 2 kW at 230 V 8 kHz, 3 kW at 400 V 8 kHz
  • Switching frequency : 8 kHz
  • Overvoltage category : III
  • Maximum leakage current : 30 mA

Specifications

Item Number LXM32MD30N4
Brand Square D
