LV434063 | Input/Output Interface for LV breaker | Square D by Schneider Electric

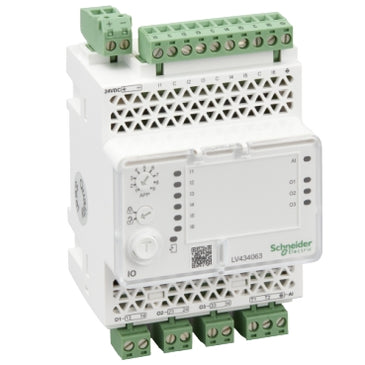

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LV434063

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Square D LV434063 Documents

Datasheet

Overview

Details for LV434063

Input/Output Interface for LV breaker

Enerlin'X I/O application module for Masterpact, PowerPact and Compact This I/O module is an Input/Output application module and it is part of EnerlinX communication system. This I/O module is compatible with Masterpact, Compact and PowerPact devices. It is used for protection, circuit breaker control, motor control, energy management and monitoring applications. It provides six digital inputs, three digital outputs and one analog input. It is equipped on the top with one 24VDC screw clamp terminal block and one terminal block for the 6 digital inputs. There are two RJ45 sockets on the bottom for ULP, and 4 terminal blocks for the digital outputs and analog input. The I/O module is a DIN rail mounting device and its dimensions are 72mm x 116mm x 71mm. The protection degree is IP4x on the front face and IP2x on the connectors. The I/O module is entirely part of the EcoStruxure Power architecture and Ethernet ready smart panels. The I/O module can be configured and updated (firmware) using EcoStruxure Power Commission software.

Specifications

device short name: I/O
Product or Component Type: I/O module
range compatibility: Masterpact (MasterPact MTZ);Masterpact (MasterPact NT);Masterpact (MasterPact NW);ComPact (ComPact NSX);ComPact (ComPact NS630b...1600);ComPact (ComPact NS1600b...3200);PowerPact (PowerPact J);PowerPact (PowerPact L);PowerPact (PowerPact H);PowerPact (PowerPact P);PowerPact (PowerPact R)
product name: Enerlin'X IO
communication network type: Universal Logic Plug 2 RJ45 connectors
[Us] rated supply voltage: 24 V DC - 20...10 %
Current Consumption: 165 mA
electromagnetic compatibility: Electrostatic discharge immunity test EN/IEC 61000-4-2;Immunity to radiated fields 10 V/m EN/IEC 61000-4-3;Surge immunity test EN/IEC 61000-4-5
Number of Inputs: 6 digital;1 analog
input type: Digital state 1 19.8…25.2 V - DC - 6.1…8.8 mA;Digital state 0 0…19.8 V - DC - 0 mA
Number of Outputs: 3 digital
output type: Digital 250 V - AC - 5 A
Cable length: 32.81 ft (10 m)
Mounting Mode: By clips
Mounting Support: 35 mm DIN rail
Control Type: By software
time delay: 0...20 s
vibration frequency: 5…8.4 Hz
Connections - Terminals: Screw terminal block
Product Certifications: FCC;GOST;CE;cULus
Standards: IEC 60947-6-2;UL 60950;IEC 60950;UL 508
Depth: 2.78 in (70.6 mm)
Height: 4.57 in (116 mm)
Width: 2.82 in (71.7 mm)
Net Weight: 8.10 oz (229.5 g)
relative humidity: 5…85 %
IP degree of protection: Connectors IP2x;Front panel IP4X;Other parts IP3x
Ambient Air Temperature for Operation: -4…158 °F (-20…70 °C)
Ambient Air Temperature for Storage: -40…185 °F (-40…85 °C)
pollution degree: 3
flame retardance: V0 conforming to UL
shock resistance: 1000 m/s²
Category: 01103-H;J;COMPACT NS UL/IEC CIRCUIT BREAKER ACCESSORIES
Discount Schedule: DE2
GTIN: 3606480631146
Returnability: Yes
Country of origin: ID
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 3.54 in (9.000 cm)
Package 1 Width: 3.46 in (8.800 cm)
Package 1 Length: 4.92 in (12.500 cm)
Package 1 Weight: 10.48 oz (297.000 g)
Unit Type of Package 2: S03
Number of Units in Package 2: 24
Package 2 Height: 11.81 in (30.000 cm)
Package 2 Width: 11.81 in (30.000 cm)
Package 2 Length: 15.75 in (40.000 cm)
Package 2 Weight: 17.09 lb(US) (7.752 kg)
Unit Type of Package 3: P06
Number of Units in Package 3: 192
Package 3 Height: 29.53 in (75.000 cm)
Package 3 Width: 23.62 in (60.000 cm)
Package 3 Length: 31.50 in (80.000 cm)
Package 3 Weight: 157.03 lb(US) (71.228 kg)
Warranty: 18 months
