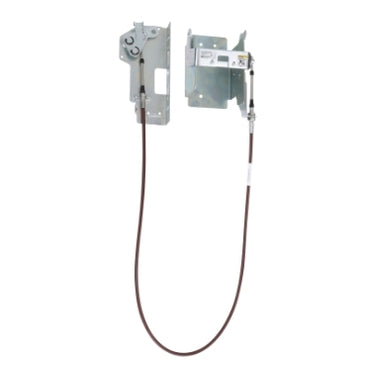

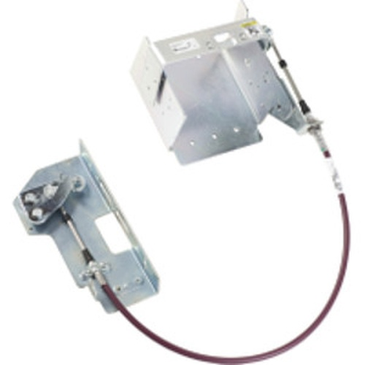

9422CSF50 | OPERATING MECHANISM CABLE MECHANISM NEMA | Square D by Schneider Electric

Brand: Square DSKU: 9422CSF50

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 9422CSF50

Jump to: Overview & Specifications Reviews

Overview Details for 9422CSF50

OPERATING MECHANISM CABLE MECHANISM NEMA

Flexible cable mechanisms are specially designed for tall, deep enclosures where replacement flexibility is required. Mechanism will work with Compact NSF, PowerPact H and PowerPact J circuit breakers. Circuit breakers can be 2 or 3 pole with a frame size of 250 A. This mechanism has a 36 inch long cable. A 9422A operating handle is ordered separately. Cable operated mechanism is UL Component Recognized and CSA certified

Specifications

Range: 9422C
Product: Single Cable Operating Mechanism
Circuit Breaker Type: MG-NSF 2;MG-NSF 3;PowerPact H or J 2;PowerPact H or J 3
Included: Ordered separately
Number of Cables: 1
Cable Length: 60 in
Category: 21732-9422
Discount Schedule: CP1
GTIN: 785901104124
Returnability: Yes
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 7.10 in (18.034 cm)
Package 1 Width: 12.70 in (32.258 cm)
Package 1 Length: 13.60 in (34.544 cm)
Package 1 Weight: 5.90 lb(US) (2.676 kg)
Warranty: 18 months
