Documents: MP44125

Datasheet More Info

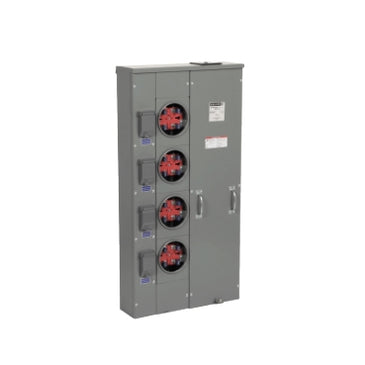

MP44125 | MP Meter Pak, main lugs, four ringed sockets, no bypass, 4 jaws, UG, OH, 400 A bus, 125 A, 240 VAC single phase | Square D

Brand: Square DSKU: MP44125

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to MP44125

Jump to: Overview & Specifications Reviews

Overview Details for MP44125

MP Meter Pak, main lugs, four ringed sockets, no bypass, 4 jaws, UG, OH, 400 A bus, 125 A, 240 VAC single phase

MP Meter Pak meter centers offer a wide range of multimetering applications. MP meter centers have UL Listed indoor rainproof NEMA Type 3R construction which meets EUSERC standards. The 9 inch meter center spacing allows for more sockets per device. This creates lighter and more compact branch enclosures. Four meter socket configurations are available with options such as ring or ringless, 4 and 5 jaw, horn or lever, and jaw release. This MP meter center has four ringed meter sockets with no bypass and a 4 jaw socket. This main lugs unit can be feed from an overhead or underground service. The aluminum main bus ampacity is 400 A. The maximum tenant main lugs amperage is 125 A with a 240 VAC 3 wire single phase maximum. This unit has a NEMA 3R surface mounting enclosure that is 48.12 inches tall, 24.34 inches wide and 7.28 inches deep. This MPH meter center with accept one 1/0 AWG to 600 kcmil or two 1/0 AWG to 250 kcmil copper or aluminum wire. This MP meter center unit is UL Listed.

Specifications

Product: Meter Center
Socket Rating: 125 A
Main Type: Main Lugs
Number of Jaws: 4
Number of Meter Sockets: 4
Socket Type: Ringed
Main Rating: 400 A
Bus Rating: 400 A
Certifications: UL Listed
Type: Meter-Pak
Busbar Material: Aluminium busbar
Bypass Type: No bypass
Enclosure Material: Steel
Enclosure Rating: NEMA 3R
Maximum Voltage Rating: 240 V AC
Mounting: Surface
Phase: 1 phase
Service Feed Location: OH;UG
Wire Size: AWG 1/0...600 kcmil 1 aluminium;AWG 1/0...600 kcmil 1 copper
Wire Configuration: 3-wire
Height: 48.12 in (1222.25 mm)
Width: 24.34 in (618.24 mm)
Depth: 7.28 in (184.91 mm)
Category: 00021-METER-PAK
Discount Schedule: DE4
GTIN: 785901001805
Returnability: Yes
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 8.50 in (21.6 cm)
Package 1 Width: 24.69 in (62.7 cm)
Package 1 Length: 49.29 in (125.2 cm)
Package 1 Weight: 89.86 lb(US) (40.76 kg)
Warranty: 18 months
