9422A1 | OPERATING MECHANISM HANDLE NEMA | Square D by Schneider Electric

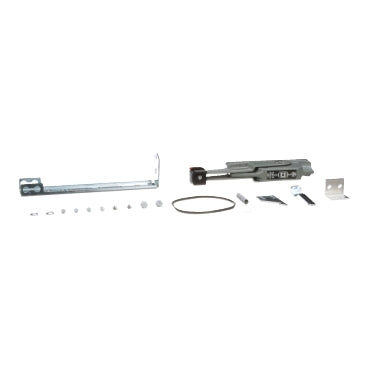

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 9422A1

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Square D 9422A1 Documents

Datasheet More Info

Overview

Details for 9422A1

OPERATING MECHANISM HANDLE NEMA

Handle mechanism is used with circuit breaker variable depth and cable operating mechanisms. Kit contains all of the parts required to mount the handle to the flange of the enclosure. Handle is suitable for right or left hand flange mounting. The handle is 6 inches long. This handle is used on NEMA Type 1, 3, 3R, 4 sheet steel and 12 enclosures. This handle is used on NEMA Type 1, 3, 3R, 4 sheet steel and 12 enclosures. Handle mechanism is UL Component Recognized.

Specifications

Product: Handle Mechanism
For Use With: Disconnect switches (30...200 A);All circuit breaker mechanisms
Product Type: Variable depth
product destination: all circuit breaker mechanisms;disconnect switches (30...200 A)
Enclosure Types: NEMA 1/3/3R/4/12 enclosures
Handle Length: 6 in (152.40 mm)
Net Weight: 2.78 lb(US) (1.26 kg)
Category: 21732-9422
Discount Schedule: CP1
GTIN: 785901739739
Returnability: Yes
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.80 in (4.572 cm)
Package 1 Width: 3.90 in (9.906 cm)
Package 1 Length: 9.60 in (24.384 cm)
Package 1 Weight: 2.78 lb(US) (1.261 kg)
Unit Type of Package 2: PAL
Number of Units in Package 2: 300
Package 2 Height: 40.00 in (101.6 cm)
Package 2 Width: 40.00 in (101.6 cm)
Package 2 Length: 48.00 in (121.92 cm)
Package 2 Weight: 840.00 lb(US) (381.017 kg)
Warranty: 18 months
