HOM115 | MINIATURE CIRCUIT BREAKER 120/ | Square D (OBSOLETE)

Brand: Square DSKU: HOM115

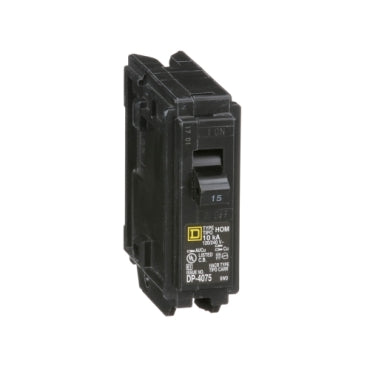

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to HOM115

Jump to: Overview & Specifications Reviews

Overview Details for HOM115

DISCONTINUED MODEL, CONTACT TECHNICAL SUPPORT FOR REPLACEMENT OPTIONS

MINIATURE CIRCUIT BREAKER 120/

Miniature Circuit Breaker, 120/240V 15A Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 1 pole circuit breaker with plug in mounting is rated 15A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 1.0 inch and depth of 2.98 inches. HOM Homeline miniature circuit breakers are UL Listed.

Specifications

Product: Miniature circuit-breaker
Range: Homeline
Current Rating: 15 A
Certifications: UL Listed
Voltage Rating: 120/240 V AC
Mounting Type: Plug-in
Number of Poles: 1P
Short Circuit Current Rating: 10 kA
Number of Spaces: 1
Circuit Breaker Type: Standard
Ratings: HACR and Switching Duty rated
Electrical Connection: Clamp terminal for 2 cables
Wire Size: AWG 14...AWG 8 aluminium/copper)1;AWG 14...AWG 10 copper)2
tightening torque: 35.40 lbf.in (4.0 N.m) 0.00…0.01 in² (2.5…6 mm²) (AWG 14...AWG 8)
Height: 3.13 in (79.50 mm)
Width: 1 in (25.40 mm)
Depth: 2.98 in (75.69 mm)
Ambient air temperature for operation: 104 °F (40 °C)
Category: 00046-HOM/T 15-30A 1P; 15-60A 2P
Discount Schedule: DE3D
GTIN: 785901065203
Returnability: Yes
Country of origin: US
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.00 in (2.54 cm)
Package 1 Width: 3.00 in (7.62 cm)
Package 1 Length: 3.00 in (7.62 cm)
Package 1 Weight: 4.66 oz (131.995 g)
Unit Type of Package 2: BB1
Number of Units in Package 2: 10
Package 2 Height: 3.60 in (9.144 cm)
Package 2 Width: 3.00 in (7.62 cm)
Package 2 Length: 11.10 in (28.194 cm)
Package 2 Weight: 2.84 lb(US) (1.288 kg)
Unit Type of Package 3: CAR
Number of Units in Package 3: 100
Package 3 Height: 11.10 in (28.194 cm)
Package 3 Width: 7.10 in (18.034 cm)
Package 3 Length: 16.70 in (42.418 cm)
Package 3 Weight: 29.15 lb(US) (13.222 kg)
Warranty: Lifetime
