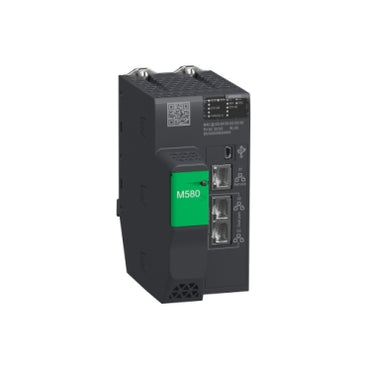

Processor module M580 - Level 4 - Remote

Processor module M580 - Level 4 - Remote

• Range of product : Modicon M580
• Product or component type : Processor module
• Number of racks : 8
• Local I/O processor capacity (discrete) : 4096 I/O
• Local I/O processor capacity (analog) : 1024 I/O
• Number of application specific channel (local rack) : 144
• Application specific I/O : Counter, SSI encoder, Motion control, Accurate time stamping, HART, Serial link
• Checks : Process control
• Control channels : Programmable loops
• Integrated connection type : 1 Ethernet TCP/IP for service port, 2 Ethernet TCP/IP for device network, USB type mini B
• Number of remote I/O station : 16 - 2 rack(s) per remote drop
• Number of distributed equipment : 64
• Communication module processor capacity : 8 AS-Interface module, 4 Ethernet communication module
• Communication service : RIO scanner, DIO scanner
• Current consumption : 295 mA at 24 V DC
• MTBF reliability : 600000 H
• Marking : CE

This product is part of the Modicon M580 range, an offer of Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC) with built-in Ethernet. This processor module offers a maximum of 8 rack configuration and 144 application specific channels. It is a processor module with a current consumption of 295mA at 24V DC. It supports 4096 discrete, 1024 analogue local I/O channels and 64 distributed equipment. It is integrated with Ethernet TCP/IP for service port, 2 Ethernet TCP/IP for device network, Ethernet for HSBY port and USB type mini B for connections. It offers 600000 hours of MTBF. It has 16 - 2 racks per remote drop for I/O station. It has an integrated RAM of 16MB for program, 2048kb for data, 10kb for system memory and expandable flash of 4GB for data storage. It is an IP20 rated product. It weighs 0.849kg. It is suitable for medium to large process applications. This product is certified by CE, Merchant Navy, UL, RCM, CSA, EAC. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. The benefits of Modicon M580 are reduce time to market, improve reliability and sustainability, improve productivity with high performance and increase operating profitability due to improved access to data.
