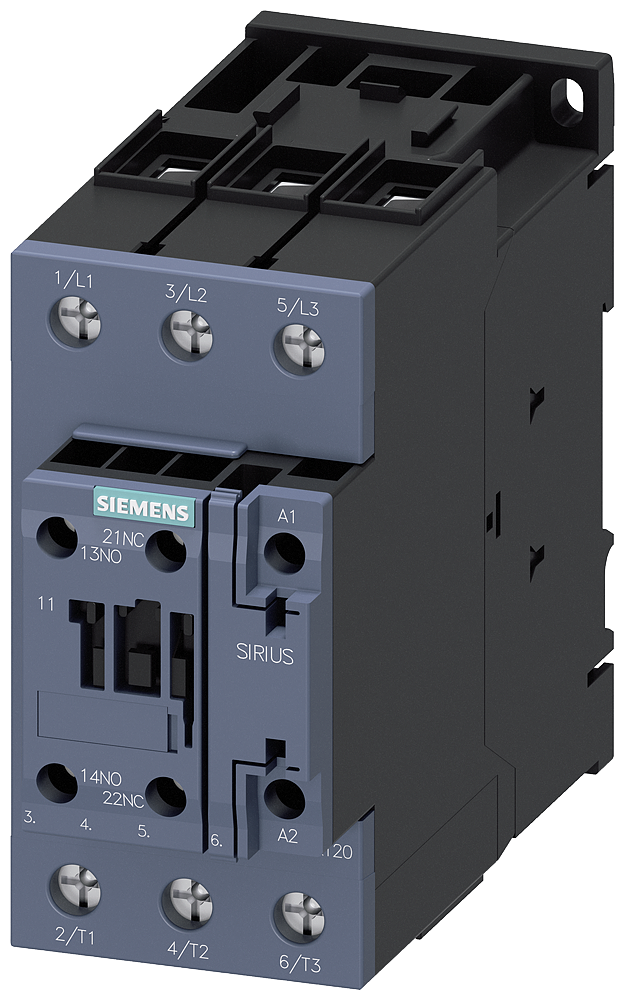

A6X30178703 | CONTACT..37KW1NO+1NC 110V 50HZ/120V 60HZ | Siemens Electrical

Contactor. AC-3. 37 kW/400 V 1 NO+1 NC. 110 V AC/50 Hz 120 V/60 Hz 3-pole. Size S2 screw terminal Multi-unit packaging Pack = 6 units

Brand: Siemens ElectricalSKU: A6X30178703

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for A6X30178703

Item Number	A6X30178703
Brand	Siemens Electrical
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	110 V
Rated control supply voltage Us at AC 60HZ	120 V
Rated operation current Ie at AC-1; 400 V	90 A
Rated operation current Ie at AC-3; 400 V	80 A
Rated operation current Ie at AC-4; 400 V	55 A
Rated operation power at AC-3; 400 V	37 kW
Rated operation power NEMA	36.7749375 kW
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	AC
Weight	2.12600 LB
