Documents: A6X30165084

Datasheet

A6X30165084 | CONTACTOR AC3:90KW/400V 2NO+2NC UC23-26V | Siemens Electrical

power contactor. AC-3 185 A. 90 kW / 400 V AC (50-60 Hz) / DC operation 23-26 V UC Auxiliary contacts 2 NO + 2 NC 3-pole. Size S6 Busbar connections Drive: conventional Reusable packaging = 9 units

Brand: Siemens ElectricalSKU: A6X30165084

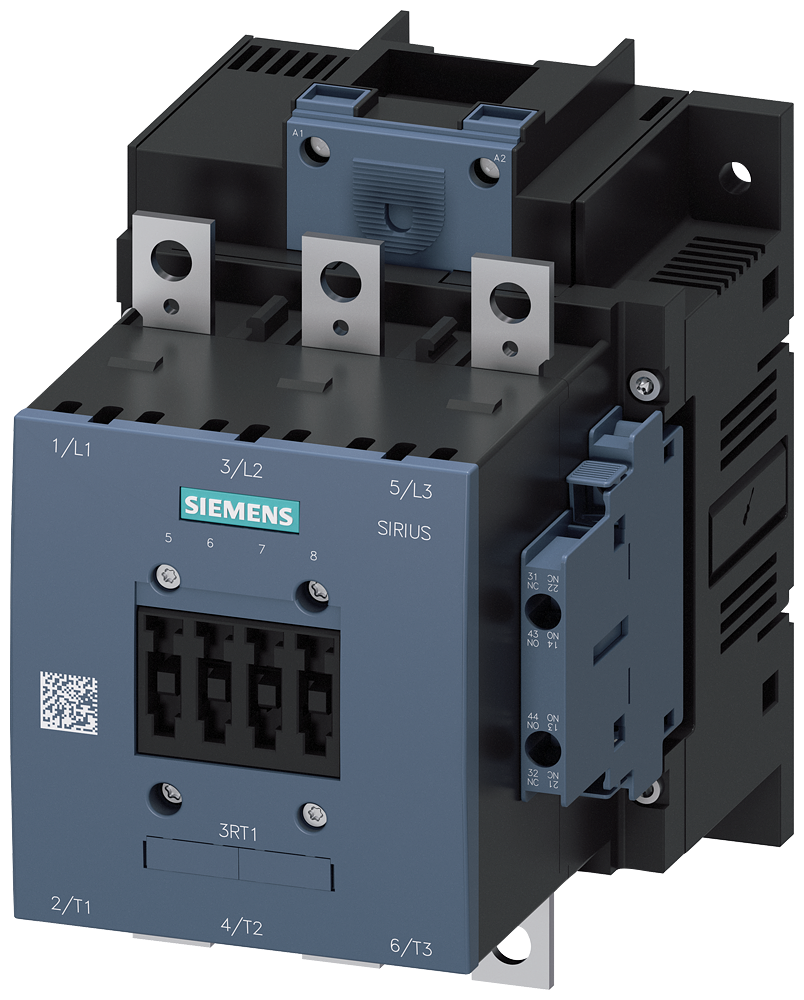

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to A6X30165084

Jump to: Overview & Specifications Reviews

Overview Details for A6X30165084

Specifications

Item Number	A6X30165084
Brand	Siemens Electrical
freeship	upsground
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	2
Number of auxiliary contacts as normally open contact	2
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	23 V
Rated control supply voltage Us at AC 60HZ	23 V
Rated control supply voltage Us at DC	23 V
Rated operation current Ie at AC-1; 400 V	215 A
Rated operation current Ie at AC-3; 400 V	185 A
Rated operation current Ie at AC-4; 400 V	160 A
Rated operation power at AC-3; 400 V	90 kW
Rated operation power at AC-4; 400 V	90 kW
Rated operation power NEMA	110.3248125 kW
Type of electrical connection of main circuit	Rail connection
Voltage type for actuating	AC/DC
Weight	6.83500 LB
