Documents: 3RV24214DA20

3RV24214DA20 | MSP S0 FOR XFRMR 20-25A SPRING | Siemens Electrical

CIRCUIT-BREAKER SZ S0, FOR TRANSFORMER PROT. A-RELEASE 20...25A, N-RELEASE 400A, SPRING-L. CONNECTION, STANDARD SW. CAPACITY

Brand: Siemens ElectricalSKU: 3RV24214DA20

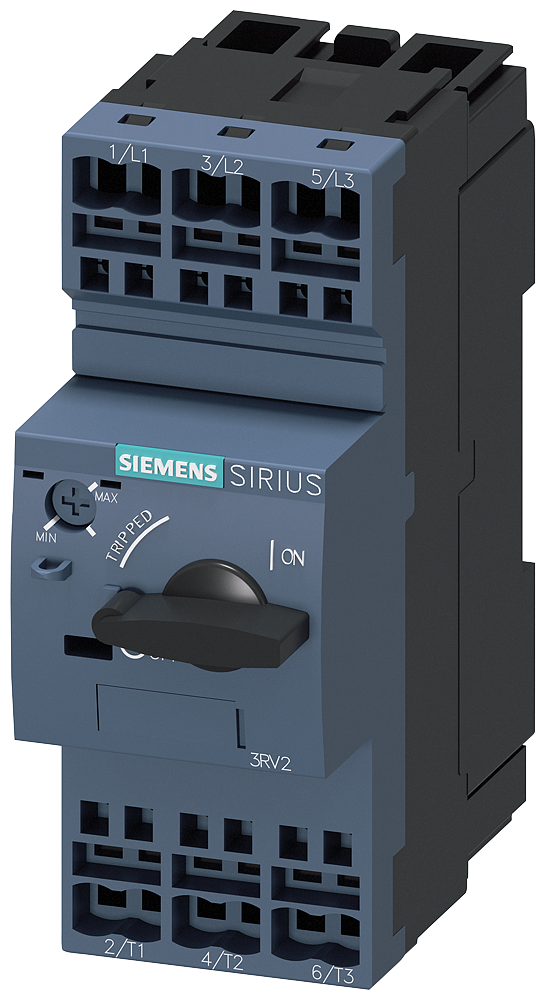

Siemens Electrical | 3RV24214DA20
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 3RV24214DA20

Overview Details for 3RV24214DA20

Specifications

Item Number 3RV24214DA20
Brand Siemens Electrical
Adjustment range undelayed short-circuit release 400 A
Complete device with protection unit TRUE
Degree of protection (IP) IP20
Device construction Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional TRUE
Height 4.180 IN
Integrated earth fault protection FALSE
Length 5.240 IN
Motor drive integrated FALSE
Motor drive optional FALSE
Number of auxiliary contacts as change-over contact 0
Number of auxiliary contacts as normally closed contact 0
Number of auxiliary contacts as normally open contact 0
Number of poles 3
Overload release current setting 18 A
Position of connection for main current circuit Other
Rated permanent current Iu 25.0 A
Rated short-circuit breaking capacity lcu at 400 V; 50 Hz 55 kA
Rated voltage 20 V
Suitable for DIN rail (top hat rail) mounting FALSE
Type of control element Toggle
Type of electrical connection of main circuit Spring clamp connection
Weight 0.90200 LB
Width 2.050 IN
With switched-off indicator FALSE
With under voltage release FALSE
