3RV24114AA20 | MSP S00 FOR XFRMR 11-16A SPRING | Siemens Electrical

Circuit-breaker sz s00, for transformer prot. a-release 11...16a, n-release 286a, spring-l. connection, standard sw. capacity

Brand: Siemens ElectricalSKU: 3RV24114AA20

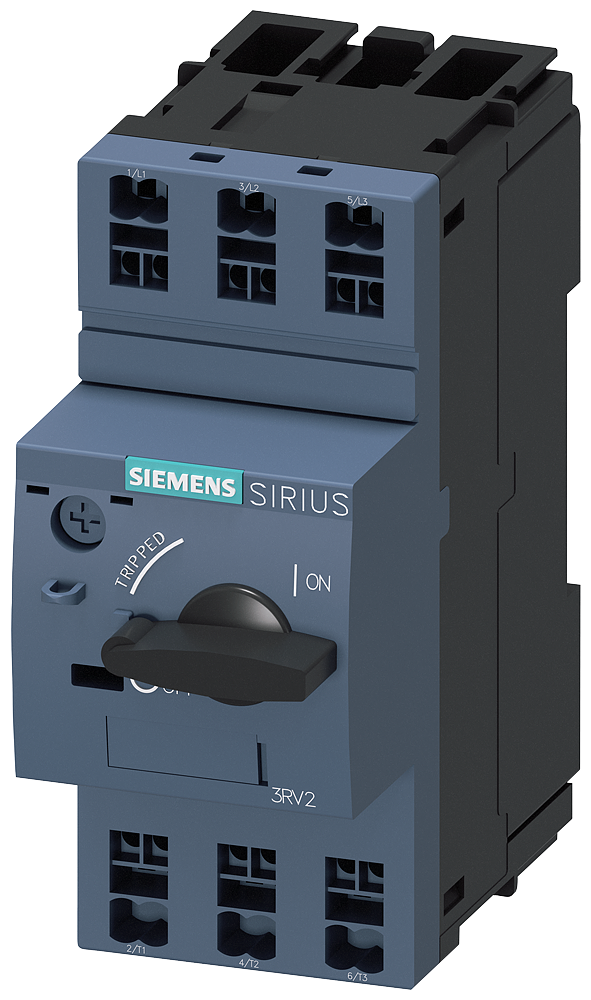

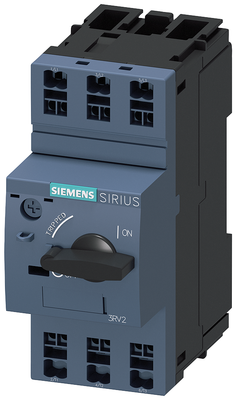

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RV24114AA20

Item Number	3RV24114AA20
Brand	Siemens Electrical
Adjustment range undelayed short-circuit release	286 A
Complete device with protection unit	TRUE
Degree of protection (IP)	IP20
Device construction	Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional	TRUE
Height	4.180 IN
Integrated earth fault protection	FALSE
Length	4.730 IN
Motor drive integrated	FALSE
Motor drive optional	FALSE
Number of auxiliary contacts as change-over contact	0
Number of auxiliary contacts as normally closed contact	0
Number of auxiliary contacts as normally open contact	0
Number of poles	3
Overload release current setting	0.416666666666667
Position of connection for main current circuit	Other
Rated permanent current Iu	16.0 A
Rated short-circuit breaking capacity lcu at 400 V; 50 Hz	55 kA
Rated voltage	20 V
Suitable for DIN rail (top hat rail) mounting	FALSE
Type of control element	Toggle
Type of electrical connection of main circuit	Spring clamp connection
Weight	0.79200 LB
Width	2.050 IN
With switched-off indicator	FALSE
With under voltage release	FALSE
