3RV23111DC20 | CIRCUIT-BREAKER S00 3.2A NO OVERLOAD | Siemens Electrical

CIRCUIT-BREAKER SZ S00, FOR STARTER COMBINATION, RATED CURRENT 3.2A, N-RELEASE 42A, SPRING-L. CONNECTION, STANDARD SW. CAPACITY

Brand: Siemens ElectricalSKU: 3RV23111DC20

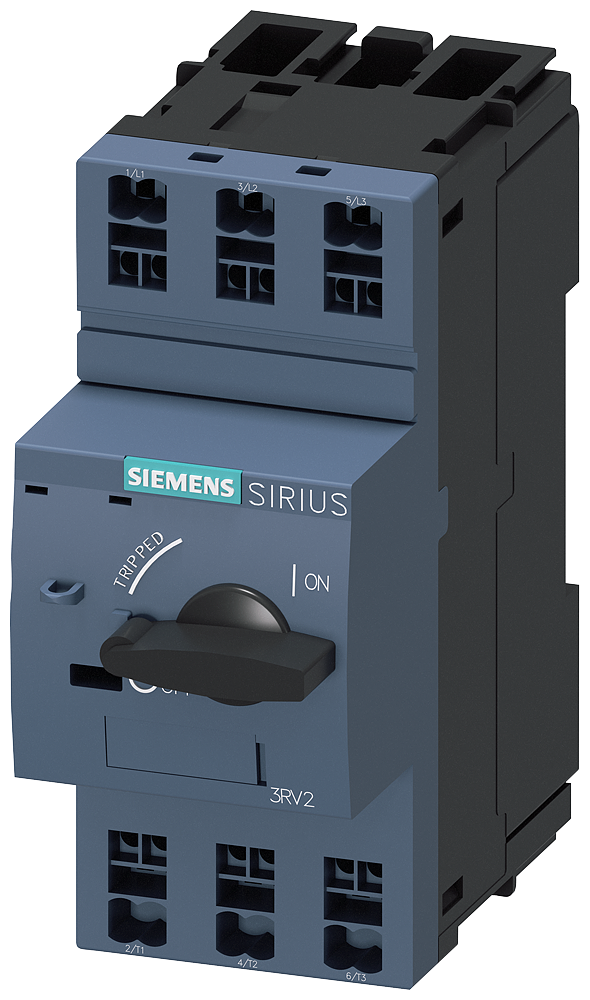

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RV23111DC20

Item Number	3RV23111DC20
Brand	Siemens Electrical
Connection type	Spring pulley connection
Height	4.180 IN
Integrated auxiliary switch present	FALSE
Integrated undervoltage tripper present	FALSE
Length	4.730 IN
Manner of using	Toggle
max. rated operating voltage	690 volt
min. rated operating voltage	690 volt
Number of auxiliary contacts as opener	0
Number of auxiliary contacts as shutter	0
Pole number	3
Power loss per pole; current-dependent [PlIp]	2.4 watt
Protection type IP	IP20
Rated current [In] for the power loss specification	3 ampere
Rated operating power with AC-3; 230 V	1 kilowatt
Rated operating power with AC-3; 400 V	1 kilowatt
Rated permanent current Iu	3 ampere
rated service short-circuit breaking capacity Ics at 400 V; 50 Hz	10 ampere
Release system	magnetic
Sensitive to phase failure	FALSE
suitable for mounting onto standard rails	FALSE
Weight	0.770 LB
Width	2.050 IN
