3RV20214AA10 | MSP S0 11-16A SCREW | Siemens Electrical

Switch_MOTOR 3RV2021-4AA10-3RV2021-4AA10_11...16A_16A_460V

Brand: Siemens ElectricalSKU: 3RV20214AA10
Siemens Electrical | 3RV20214AA10

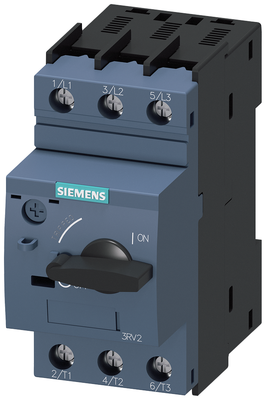

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 3RV20214AA10

Overview Details for 3RV20214AA10

Specifications

Item Number 3RV20214AA10
Brand Siemens Electrical
Connection type Screw connection
Greatest value of overload release adjustment range 16 ampere
Height 4 IN
Integrated auxiliary switch present FALSE
Integrated undervoltage tripper present FALSE
Length 4.5 IN
Lowest value of setting range for overload tripper 10 ampere
Manner of using Toggle
max. rated operating voltage 690 volt
min. rated operating voltage 690 volt
Number of auxiliary contacts as opener 0
Number of auxiliary contacts as shutter 0
Pole number 3
Power loss per pole; current-dependent [PlIp] 3.1 watt
Protection type IP IP20
Rated current [In] for the power loss specification 16 ampere
Rated operating power with AC-3; 230 V 4 kilowatt
Rated operating power with AC-3; 400 V 8 kilowatt
Rated permanent current Iu 16 ampere
rated service short-circuit breaking capacity Ics at 400 V; 50 Hz 550 ampere
Release system magnetic
Sensitive to phase failure TRUE
suitable for mounting onto standard rails FALSE
Weight 0.800 LB
Width 2.5 IN
