3RT25361AF00 | CONTACTOR S2 60A 4P 24VAC 1NO/1NC | Siemens Electrical

2NO+2NC CONTACTOR,AC3:22KW 110V AC 50HZ, 4-POLE, 2NO+2NC, SIZE S2, SCREW TERMINAL 1NO+1NC INTEGRATED

Brand: Siemens ElectricalSKU: 3RT25361AF00

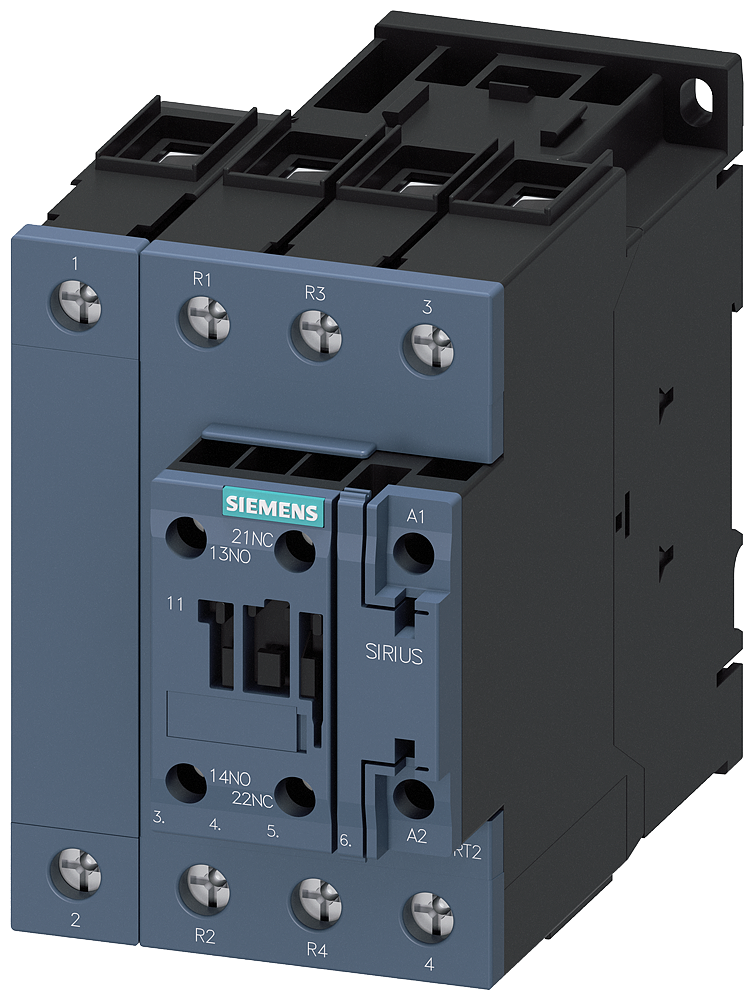

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT25361AF00

Item Number	3RT25361AF00
Brand	Siemens Electrical
Height	5.59100 IN
Length	4.82300 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Number of main contacts as normally open contact	2
Number of normally closed contacts as main contact	2
Rated operation current Ie at AC-1; 400 V	70 A
Rated operation current Ie at AC-3; 400 V	41 A
Rated operation power at AC-3; 400 V	22 kW
Rated operation power NEMA	18.38746875 kW
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	AC
Weight	2.260 LB
Width	3.22900 IN
