3RT25262XJ400LA2 | CONTACTOR RAIL S0 25A 72VDC 1NO/1NC SPRG | Siemens Electrical

2NO+2NC contactor, AC3 11KW DC 72 V, polereverse 4-pole, 2NO+2NC, sz s0, spring-typ terminals 1NO+1NC integr. for railway, var. integr.

Brand: Siemens ElectricalSKU: 3RT25262XJ400LA2

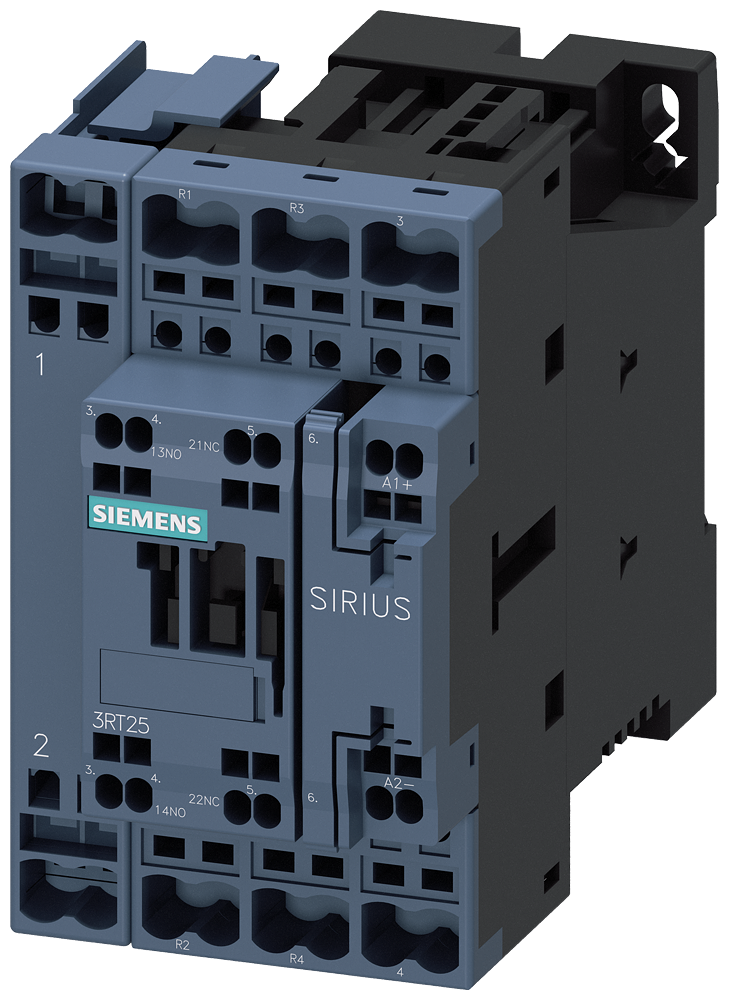

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT25262XJ400LA2

Item Number	3RT25262XJ400LA2
Brand	Siemens Electrical
Height	5.100 IN
Length	5.5 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Number of main contacts as normally open contact	2
Number of normally closed contacts as main contact	2
Rated control supply voltage Us at DC	72 V
Rated operation current Ie at AC-1; 400 V	40 A
Rated operation current Ie at AC-3; 400 V	20 A
Rated operation current Ie at AC-4; 400 V	15.5 A
Rated operation power at AC-3; 400 V	7.5 kW
Rated operation power at AC-4; 400 V	7.5 kW
Type of electrical connection of main circuit	Spring clamp connection
Voltage type for actuating	DC
Weight	1.400 LB
Width	3.5 IN
