3RT25161AK60 | CONTACTOR S00 9A 120VAC 2NO/2NC SCRW | Siemens Electrical

Cont., AC-3, 4KW/400V AC-1 18a, AC 110v 50HZ/120v 60HZ, 4-pole, 2s+2oe, size s00, screw terminals

Brand: Siemens ElectricalSKU: 3RT25161AK60

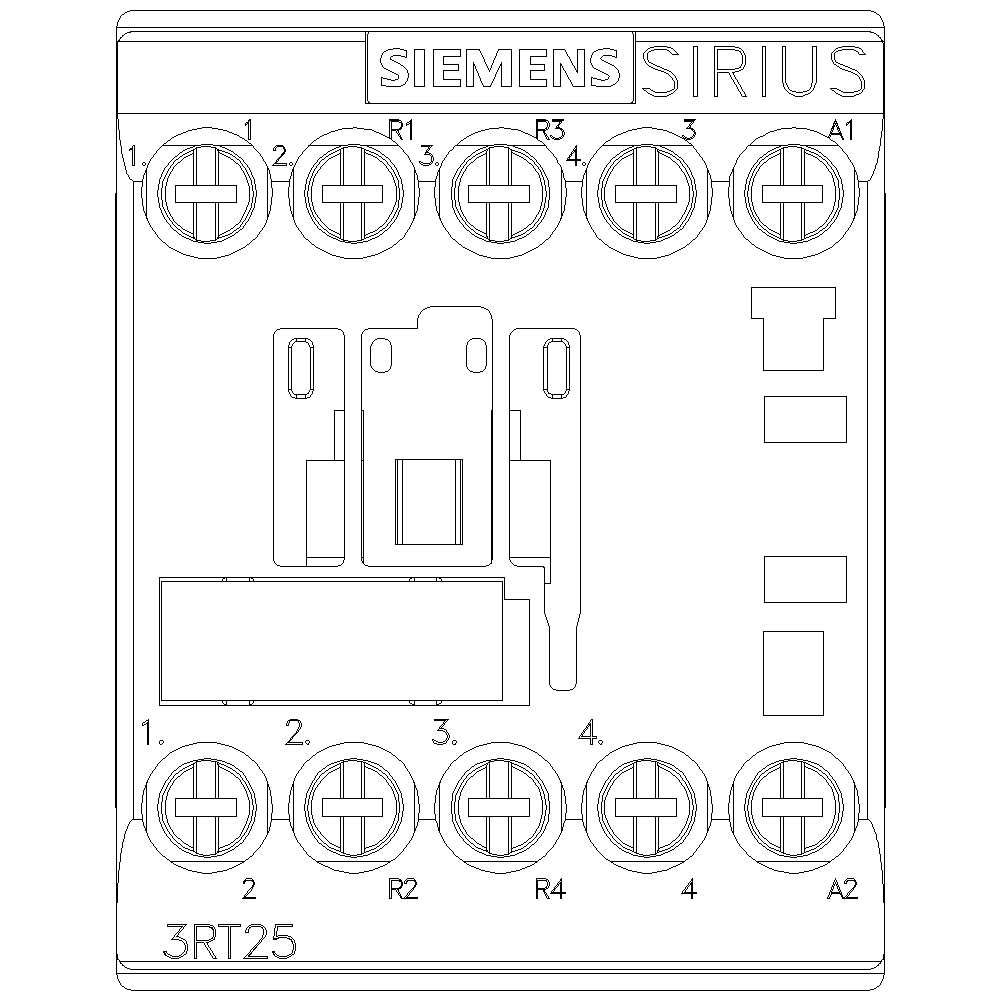

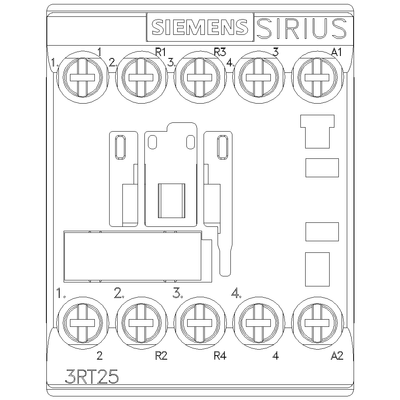

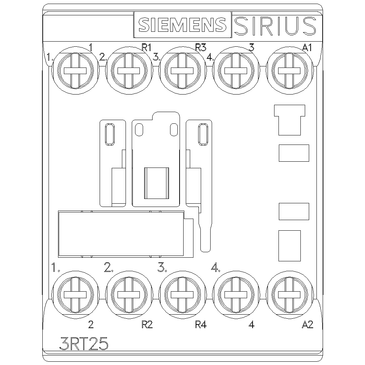

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT25161AK60

Item Number	3RT25161AK60
Brand	Siemens Electrical
Height	2.400 IN
Length	3.3 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	0
Number of auxiliary contacts as normally open contact	0
Number of main contacts as normally open contact	2
Number of normally closed contacts as main contact	2
Rated operation current Ie at AC-1; 400 V	18 A
Rated operation current Ie at AC-3; 400 V	0.375
Rated operation power at AC-3; 400 V	4 kW
Rated operation power NEMA	3.677493749 kW
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	AC
Weight	0.480 LB
Width	1.950 IN
